Nordson FP-200 User Manual

Installation
3-7
Part 237478_03
E 2012 Nordson Corporation
Connecting the Gun and Hose
The FP‐200 gun comes preassembled except for the auxiliary guide handle
and the air line tubing. Instructions for auxiliary guide handle installation and
trigger handle rotation are discussed later in this section. The hydraulic
hose, the gun, and the air line tubing must be assembled and installed onto
the suspension system before any connections are made to the applicator or
the air supply.
1
3
2
3

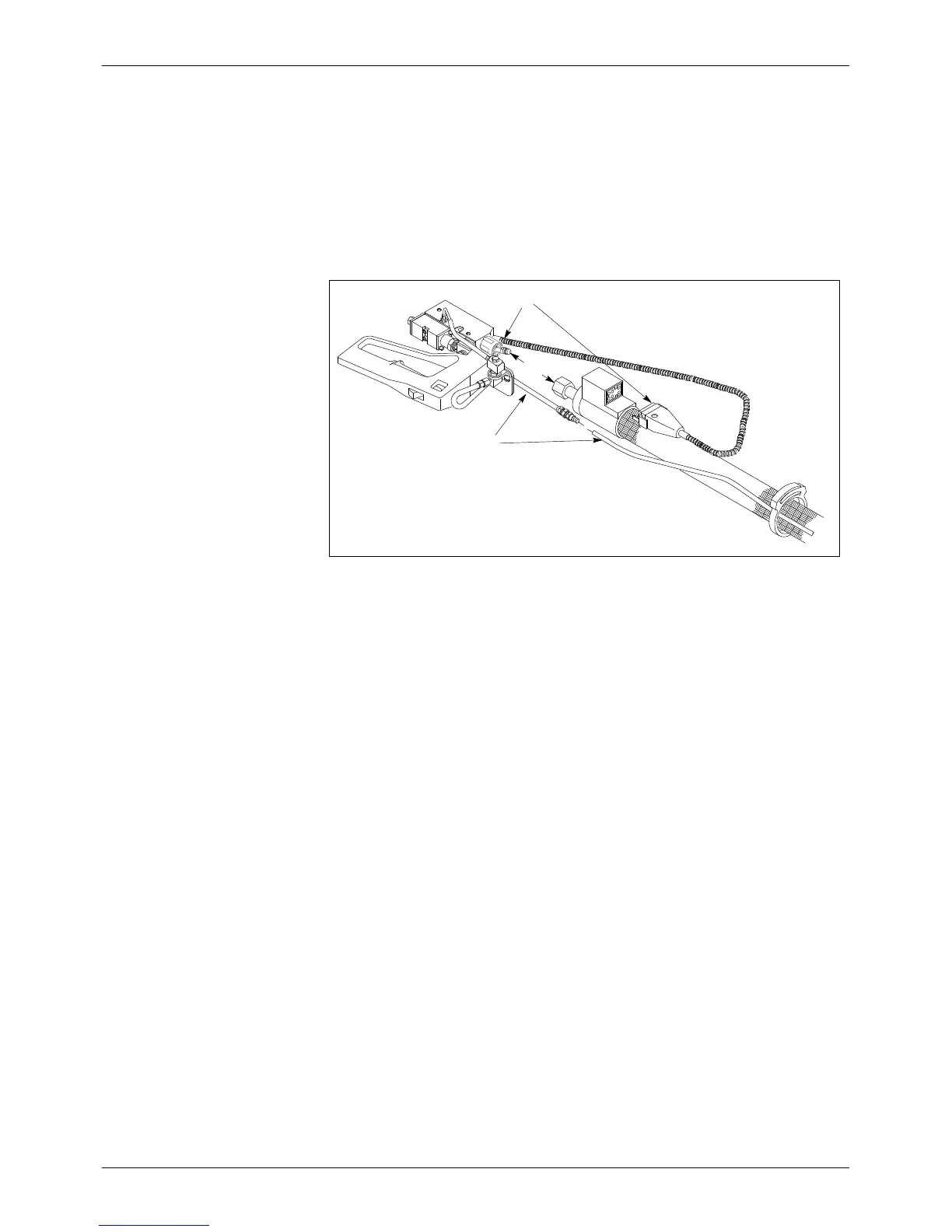

Figure 3‐4 Gun‐to‐Hose and Gun‐to‐Air‐Line Assembly
1. Cordset connection
2. Hydraulic hose connection
3. High‐temperature air
line/polyethylene air line connection
