Replacing the Thermostat
Follow this procedure to replace a thermostat.
WARNING: Risk of burns. Relieve pressure. Airtrapped in the hose or gun
can spit out molten adhesive that can cause severe burns. Failure to relieve
hydraulic pressure can result in serious burns.
1. Relieve hydraulic pressure. Refer to the Relieving Hydraulic Pressure
procedure in Section 3, Installation.
WARNING! Risk of shock. Even when switched off. Nordson applicators,
hoses, and guns contain electrical potentials that can cause death.
Disconnect and lock out line voltage to the applicator.
2. Move the applicator circuit breaker to the OFF position; then disconnect
and lock out input electrical power to the applicator.
3. Remove the six manifold body cover screws, then remove the cover.
4. Disconnect the thermostat wires.

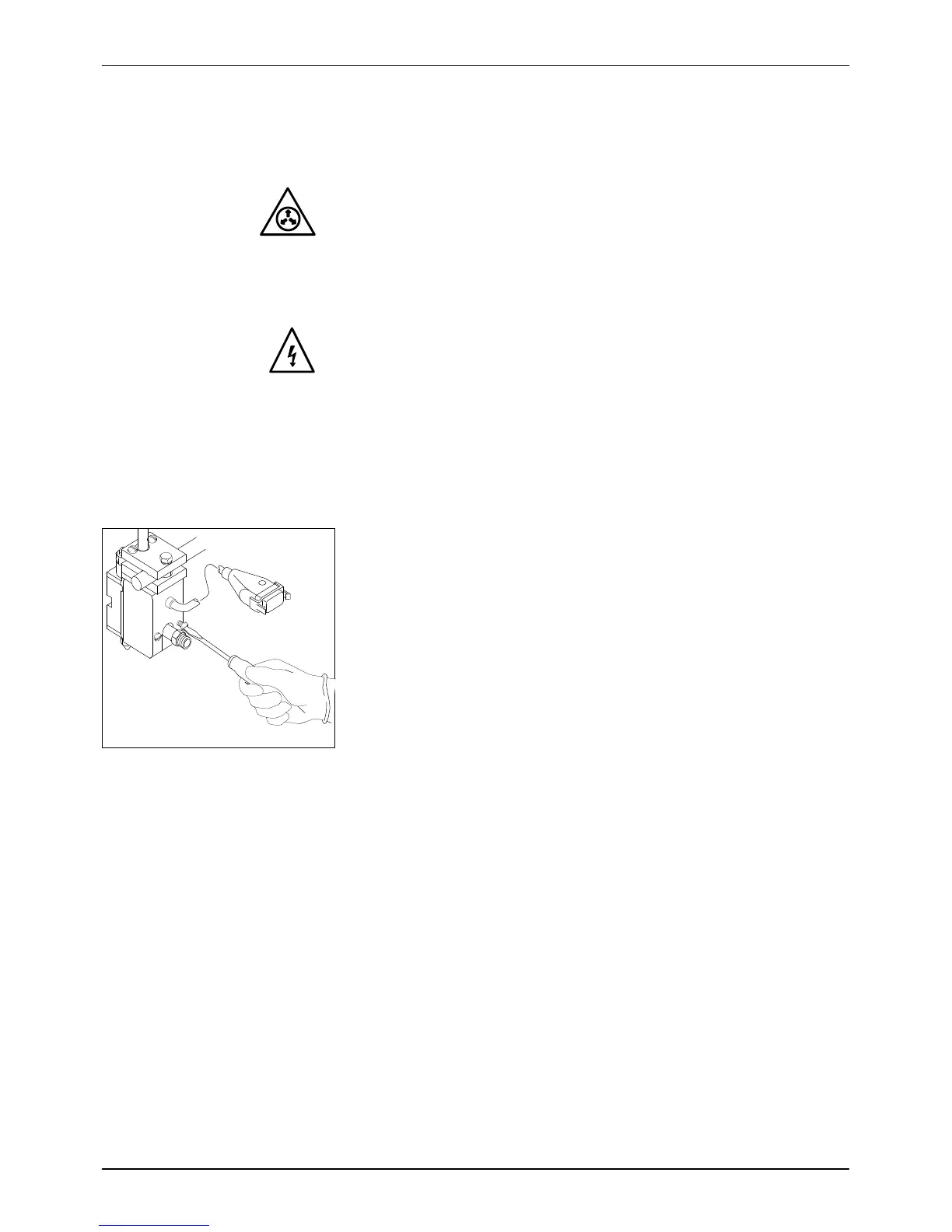

Figure 7‐6 Manifold Body Cover
Screws
5. Remove the defective thermostat.
6. Install new thermostat.
7. Reconnect thermostat wires.
8. Re‐attach cover with the six screws removed in step 3.
9. Restore the system to normal operation by following the instructions in
the applicator product manual.
