Connecting the Gun to the Hose and Air Line
1. Lay out and fully extend the hydraulic hose.
2. Using two wrenches (refer to Table3‐1), attach the hose fitting to the gun
swivel fitting. Do not overtighten.
3. Plug the gun's cordset into the hose plug receptacle.
12

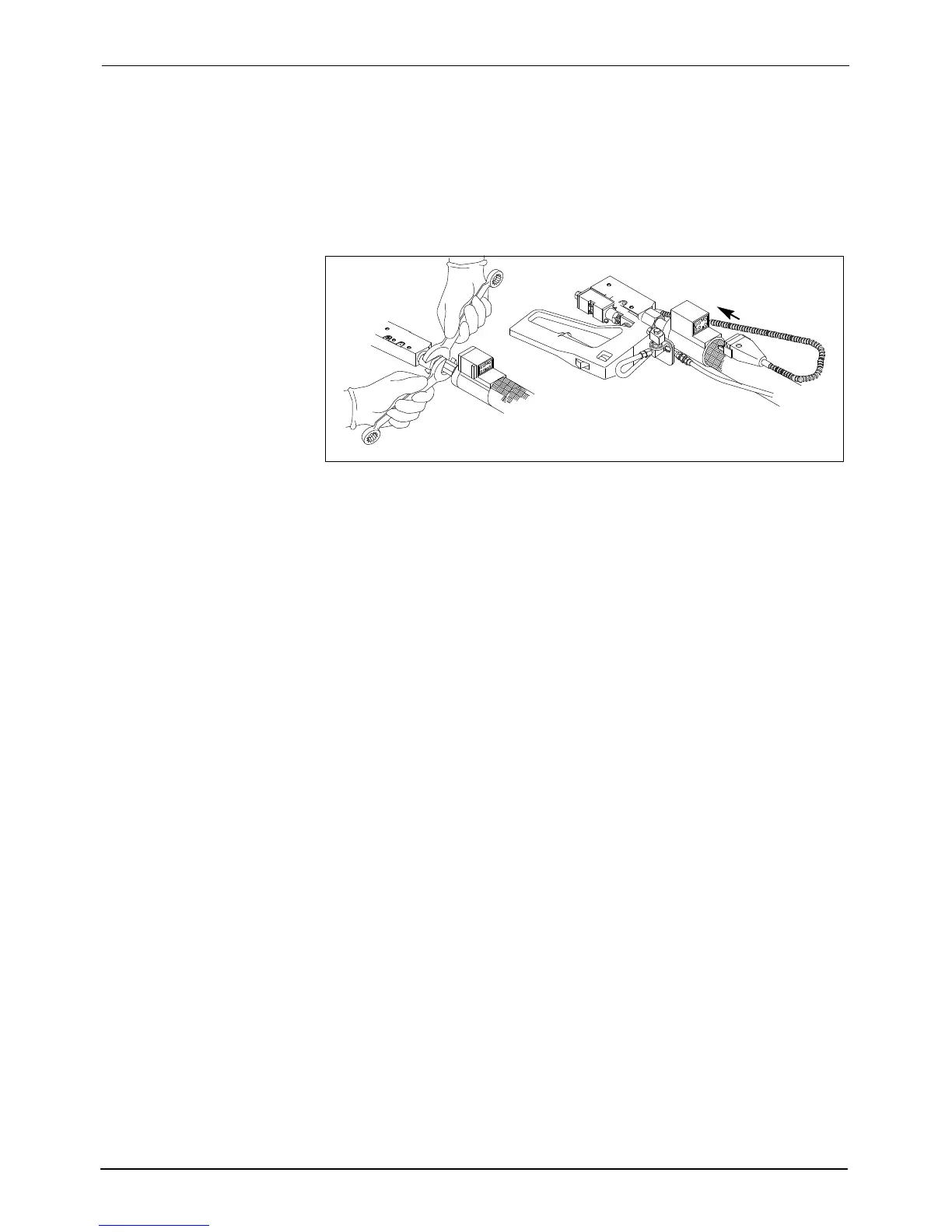

Figure 3‐5 Connecting the Gun to the Hose Hydraulically and Electrically
1. Connecting the gun and hose
swivel fittings
2. Plugging the cordset plug into the
hose plug receptacle
NOTE: The installation kit comes with two types of air line tubing:
polyethylene and high‐temperature. The high‐temperature tubing has a
fitting preassembled on one end.
4. Uncoil the polyethylene air line tubing and lay it beside the hydraulic
hose.
5. Insert the high‐temperature air line tubing (the end without a fitting) into
the red collar attached to the air line elbow.
