Adjusting the FP‐200 Swirl Gun Adhesive Pattern
Adjust the adhesive pattern of Nordson FP‐200 swirl guns using either of the
following methods:
1. Adjust the applicator pump pressure by following the instructions in the
applicator product manual.
2. Turn the adjustment knob on the air regulator.

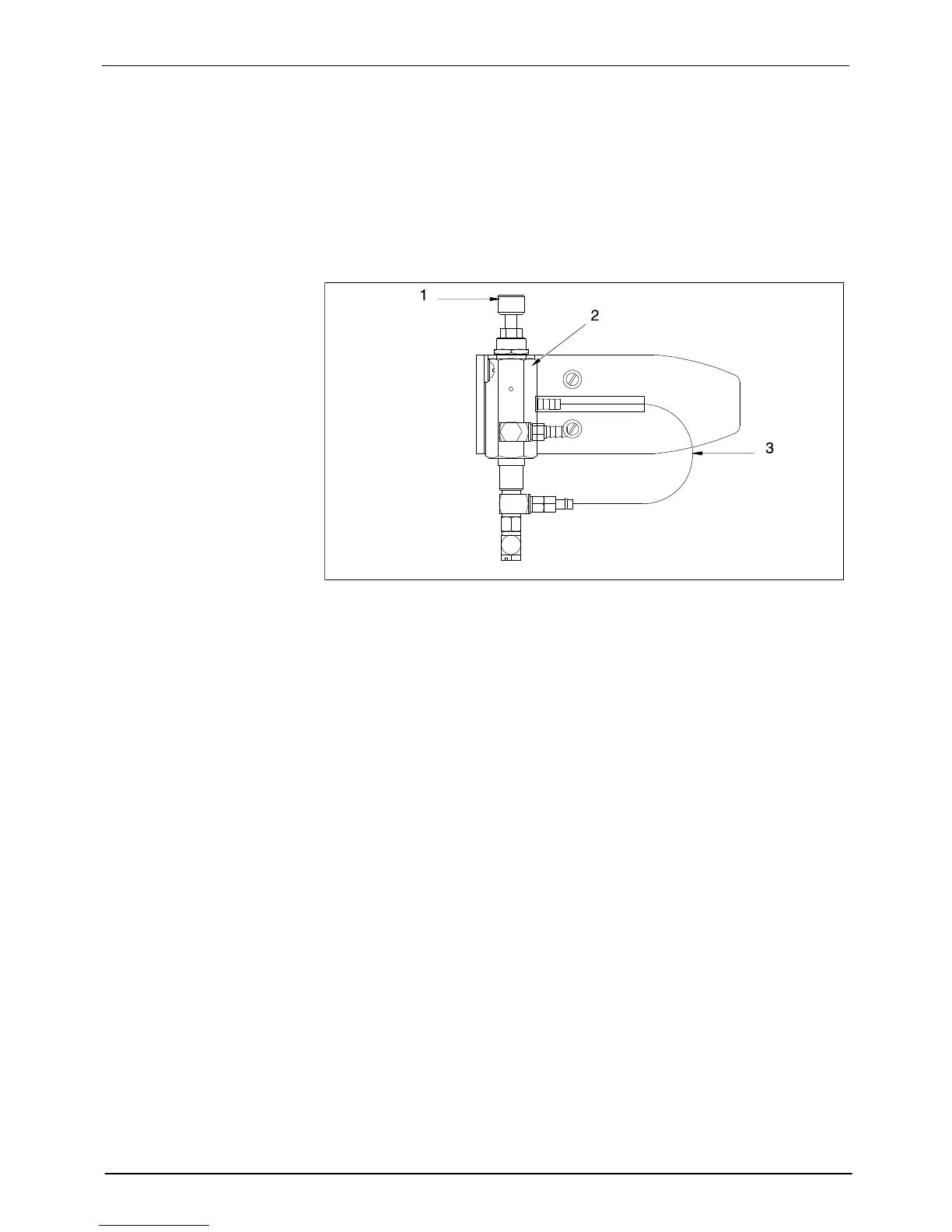

Figure 4‐1 FP‐200 Swirl Gun Air Regulator
1. Air regulator adjustment knob
2. Air regulator
3. Outlet air line
Shutdown
1. Place the trigger safety in the LOCKED position.
2. Shut down the applicator by following the shutdown procedures in the
applicator product manual.
