Nordson FP-200 User Manual

Parts
8-9
Part 237478_03
E 2012 Nordson Corporation
Item Part Description Quantity Note
34 981 837 S Screw, Pan, 6‐32 x 0.375 in., Slotted 2
35 220 647 S Hose, Valve, FP‐200 1
36 234 885 S Fitting, Bulkhead 1
NOTE A: Reduced cavity modules may be ordered separately. Refer to Table 8‐1
35
33
32
36
6
5
7
9
4
2
3
10
11
12
3
15
3
24
25
22
29
21
30
1
13
14
16
20
19
18
17 8
26
27
31
8
31
23
22
31
31
28
31
34
31

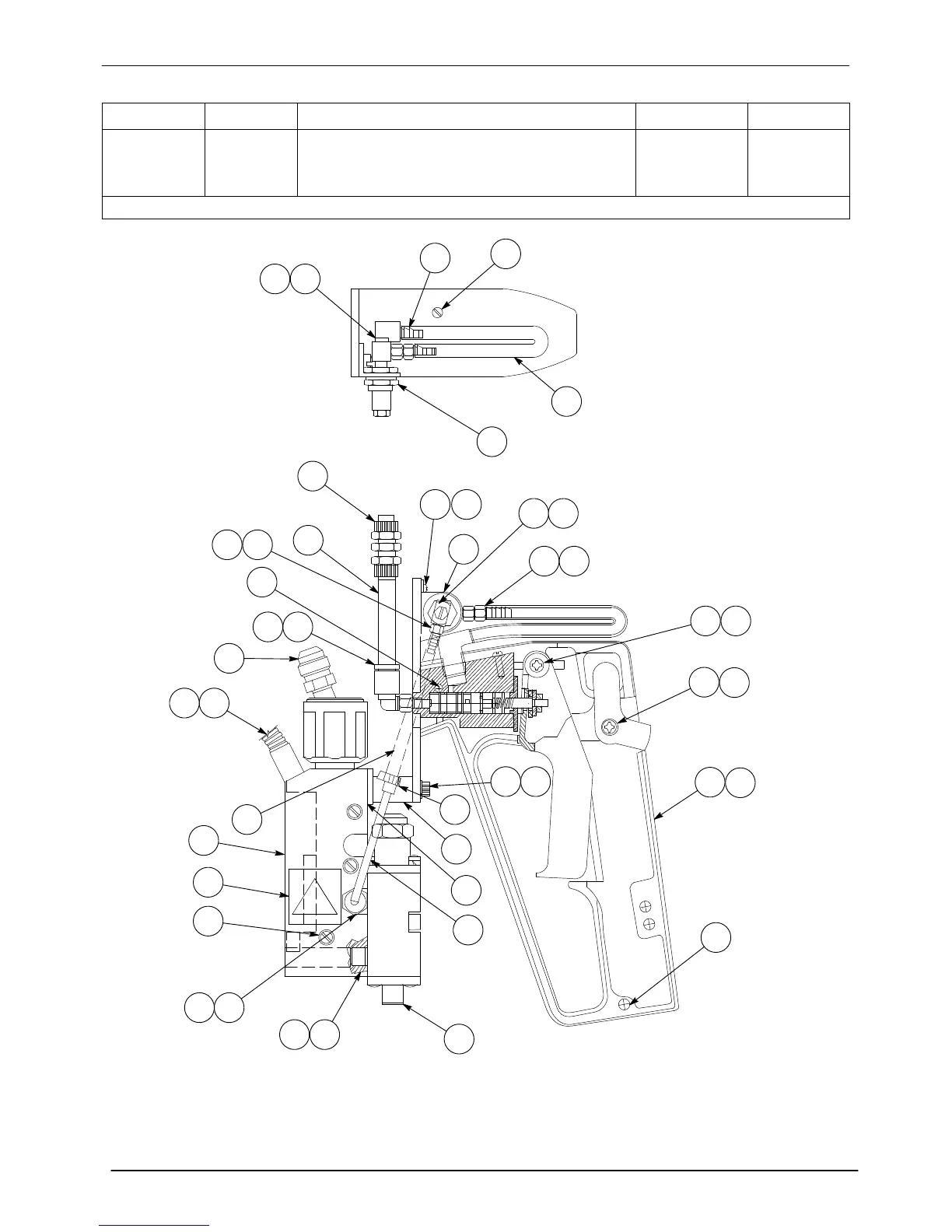

Figure 8‐3 FP‐200 Extrusion Gun Parts (Side and Top Views)
