2.2.2 Models
The v
2
eagle is available in different models. They mainly differ
• in the coin entry and return area
• in the sorting mechanism and
• in the machine interface.

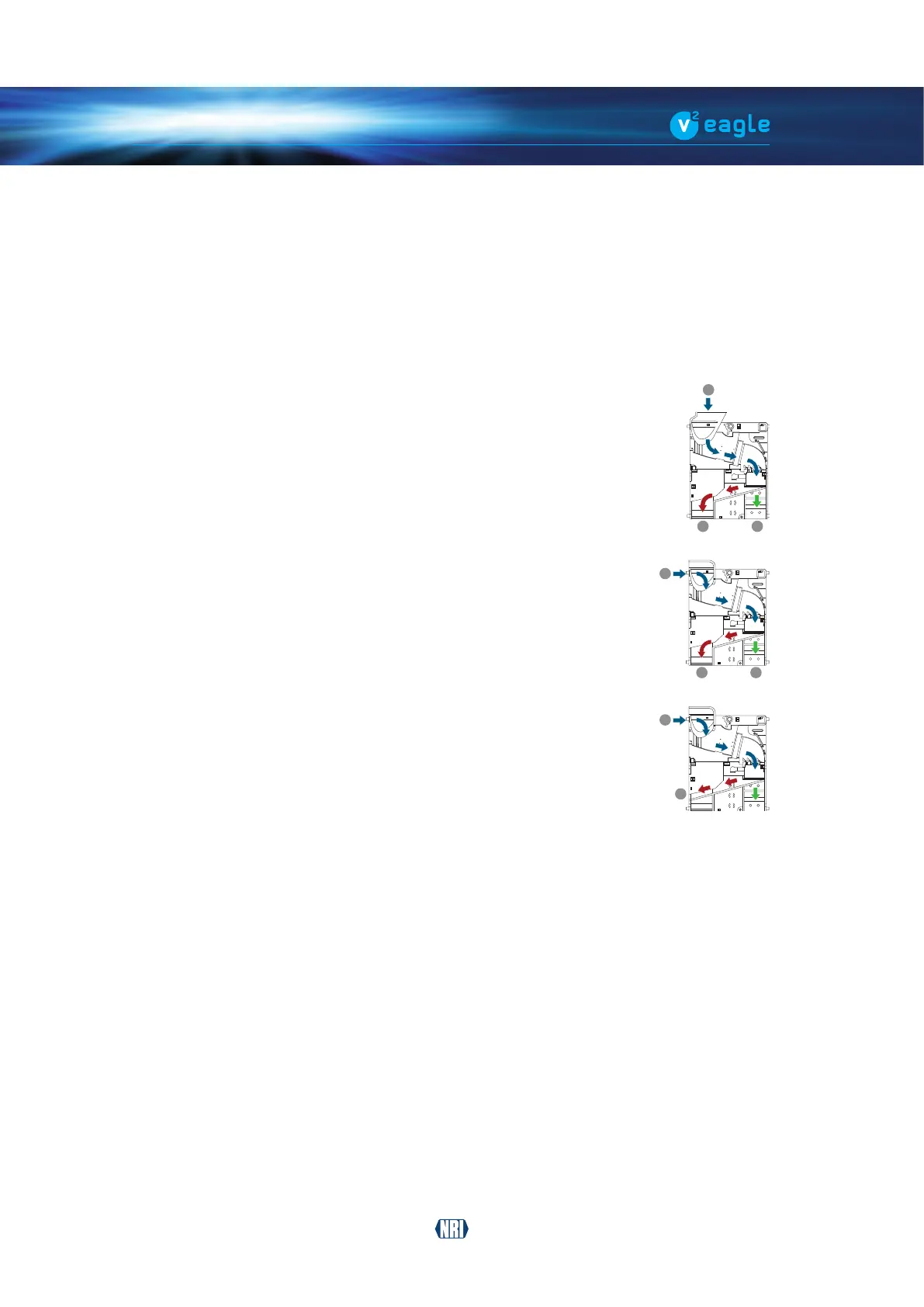

2.2.2.1 Coin entry and return area
• Top entry and bottom return (E1xxPx. ..)
The coin is inserted into the device from the top and returned, if not
accepted, via the return area at the bottom.
• Front entry and bottom return (E3xxPx. ..)
The coin is inserted into the device from the side and returned, if not
accepted, via the return area at the bottom. The coin validator with
frontentrygenerallyhasanNRIfrontplatettedtotheleft-handside
of the device
(cf. Chap. 10.3.1 Front plates, p. 51). However, this model is
also available without front plate.
• Front entry and front return (E4xxPx. ..)
The coin is inserted into the device from the side and returned, if not
accepted, via the return area also located on the side. The coin validator
withfrontentrygenerallyhasanNRIfrontplatettedtotheleft-hand
side of the device
(cf. Chap. 10.3.1 Front plates, p. 51). However, this model
is also available without front plate.
2.2.2.2 Internal 4-fold or 5-fold sorting mechanism
In order to sort the accepted coins into the cash-box or e.g. change tubes or hoppers, the v
2
eagle
can optionally be equipped with an internal 5-fold sorting mechanism (cf. Chap. 5.7 Sorting accepted
coins (option), p. 25)
:
• 4-fold sorter (Ex7xPx. ..)
• 5-fold in-line sorter (Ex8xPx. ..)
• Single cash-box chute out of 5-fold in-line sorter (no sorting mechanism)
(Ex1xPx. ../Ex2xPx. ../Ex3xPx. ../Ex4xPx. ../Ex5xPx. ..)
