Design
4.6 Coin return lever
The return lever [Fig. 1/2] [Fig. 2/2] on the top of the device is operated using the return button
on the machine when coins which have been inserted are to be returned or e.g. a jam caused
by coins which have become stuck needs to be removed. Actuation of the return lever opens the
measurement and validation area of the coin validator so that all objects in the coin validator
are directed to the return area.
The v
2
eagle can be equipped with various return levers, depending on the dimensions of the
machine (cf. Chap. 4.3.1 Model number decoding, p. 16).
4.7 Status LED (only v² eagle with 4-fold sorter)
The coin validator is equipped with a red status LED [Fig. 2/16] on the rear side to indicate the
operating state of the device:

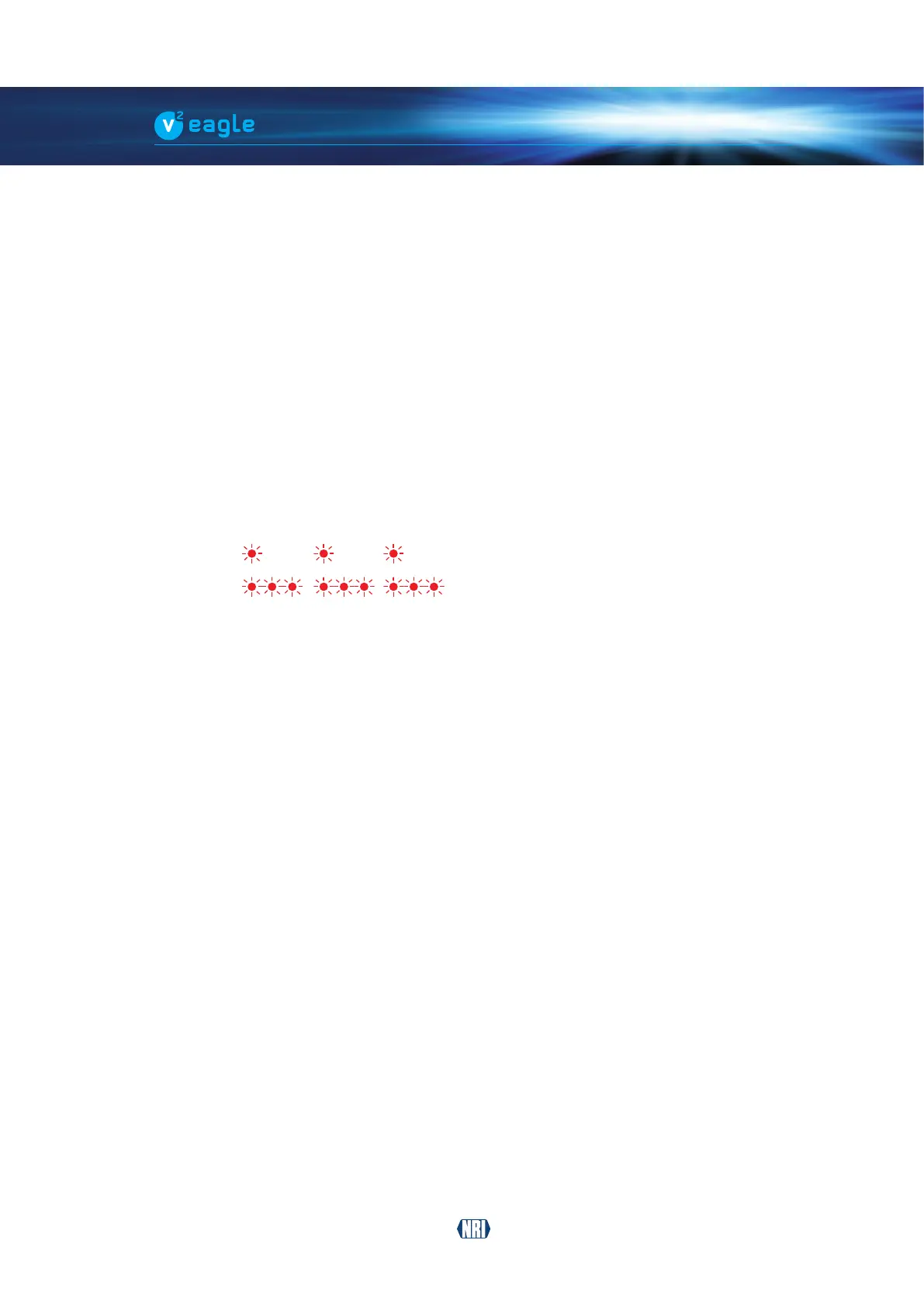

Flashing frequency Signicance
Once per second Device connected, no fault
Three times per second Error, no coin acceptance
4.8 Interfaces
For details of the machine and sorter interfaces [Fig. 1/11, 12] [Fig. 2/11–13] please refer to
Chap. 10.2 Interfaces, p. 46.
