Design
0010118880/0010/0004
11/13
12-24V DC
EUR -,10 / -,20 / -,50 / 1,- / 2,-
EUR -,10 / -,20 / -,50 / 1,- / 2,-
E181P4.00/0.S
E0P40-EU---20000A FW: 445-04.46 |BDTA|
Crane Payment Solutions GmbH
+49 (0) 41 61/729-0 | info@craneps.com
MADE IN GERMANY
XXXXXXXXXXXXXXXXXXXXXXXXXX
4.3 Product label
The label of the coin validator [Fig. 1/10] [Fig. 2/4]containsalldatadeningthedevicesuchas
devicenumberandtype,operatingvoltageandcustomer-speciccurrencyandcoinprogramming:
1 Bar code
2 Order number (10-digit),
item number/order (4-digit),
device serial number (4-digit)
3 Device type
4 Ordering code
5 Nominal voltage
6 Machine interface
7 Customer material number

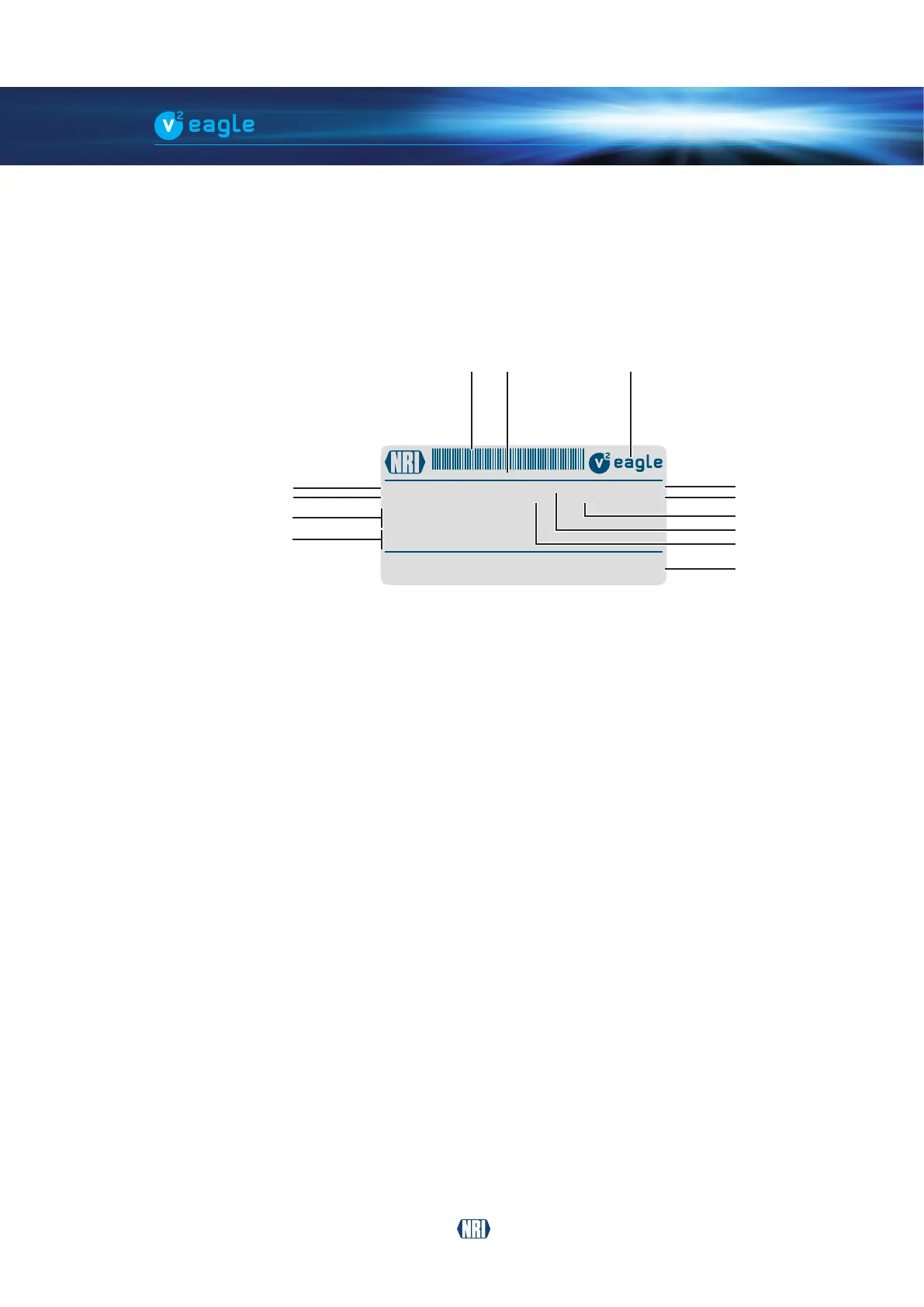

Fig. 4: Product label
1 2 3
13
12
11
10
4
5
9
6
8
7
8 Firmware number/version
9 Date of manufacture
10 Coin programming – memory block B
(if DIL switch S1 set to ON)
11 Coin programming – memory block A
(if DIL switch S1 set to OFF)
12 Data block number/revision A–Z (cf.
Chap. 4.3.2 Data block decoding, p. 16)
13 Model number (cf. Chap. 4.3.1 Model number
decoding, p. 16)
