Design
4 Design
This chapter describes
• the main parts the v
2
eagle consists of, and
• all parts required for the operation of the coin validator.
4.1 Overview
of the front entry model with
• 5-fold in-line sorter and
• 4-fold sorter
4.1.1 v² eagle with 5-fold in-line sorting mechanism
8 Mounting stud
9 Interface–service/conguration
10 Label
11 Interface – sorter override (BACTA)
12 Interface – machine (BDTA/BACTA)
13 Switch blocks
14 Label – Switch block/coin channel assignment
(cf. Chap. 4.4 Label – switch functions/coin channel assignment, p. 17)
1 Coin insert funnel (front entry model, open on the
side (cf. Chap. 4.2 Coin path (5-fold in-line sorter only), p. 14)
2 Coin return lever (option)
3 Flight deck
4 Locking lever for sorting cover
5 Closingdeviceforightdeck
6 Coin outlet – cash box/sorting
7 Coin outlet – return area
(cf. Chap. 4.2 Coin path (5-fold
in-line sorter only), p. 14)7

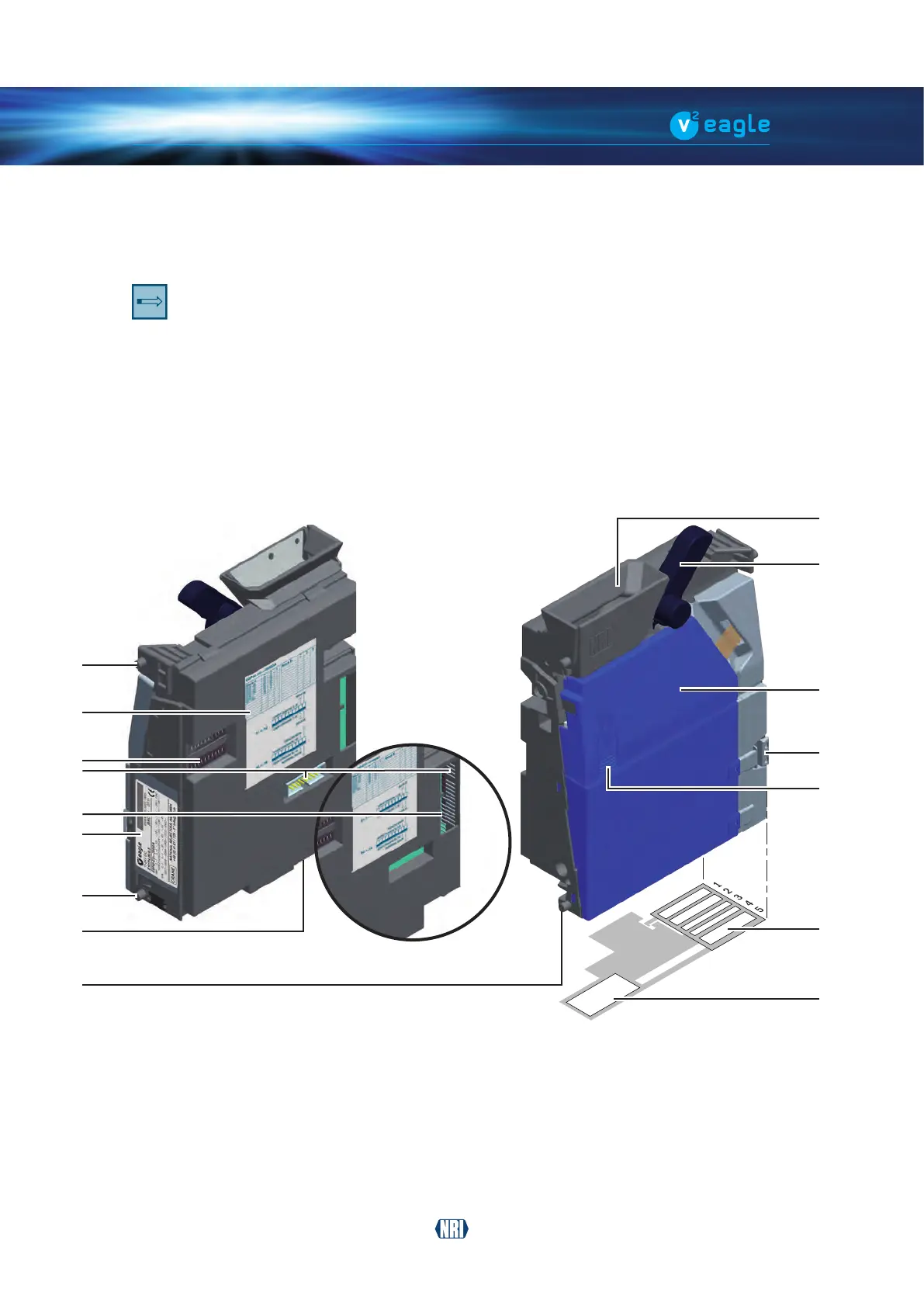

Fig. 1: Design – v
2
eagle with 5-fold in-line sorting (mechanism)
Return
1
2
3
4
5
1
3
2
4
5
6
7
8
9
8
8
10
13
14
12
11
v² eagle BACTAv² eagle BDTA
