funcTion
5.7.2 Sorting principle of 4-fold sorter (Ex7xPx. ..)
(not with BDTA interface)
The individual coin types can be distributed to the four
sorting chutes independent of their dimensions. Each
chutecanbedenedascashboxchute.
Which coin is sorted into which of the chutes is determined
by customized factory programming or set via the
machine control system. Default setting: chute D
D
C
A
B
Return

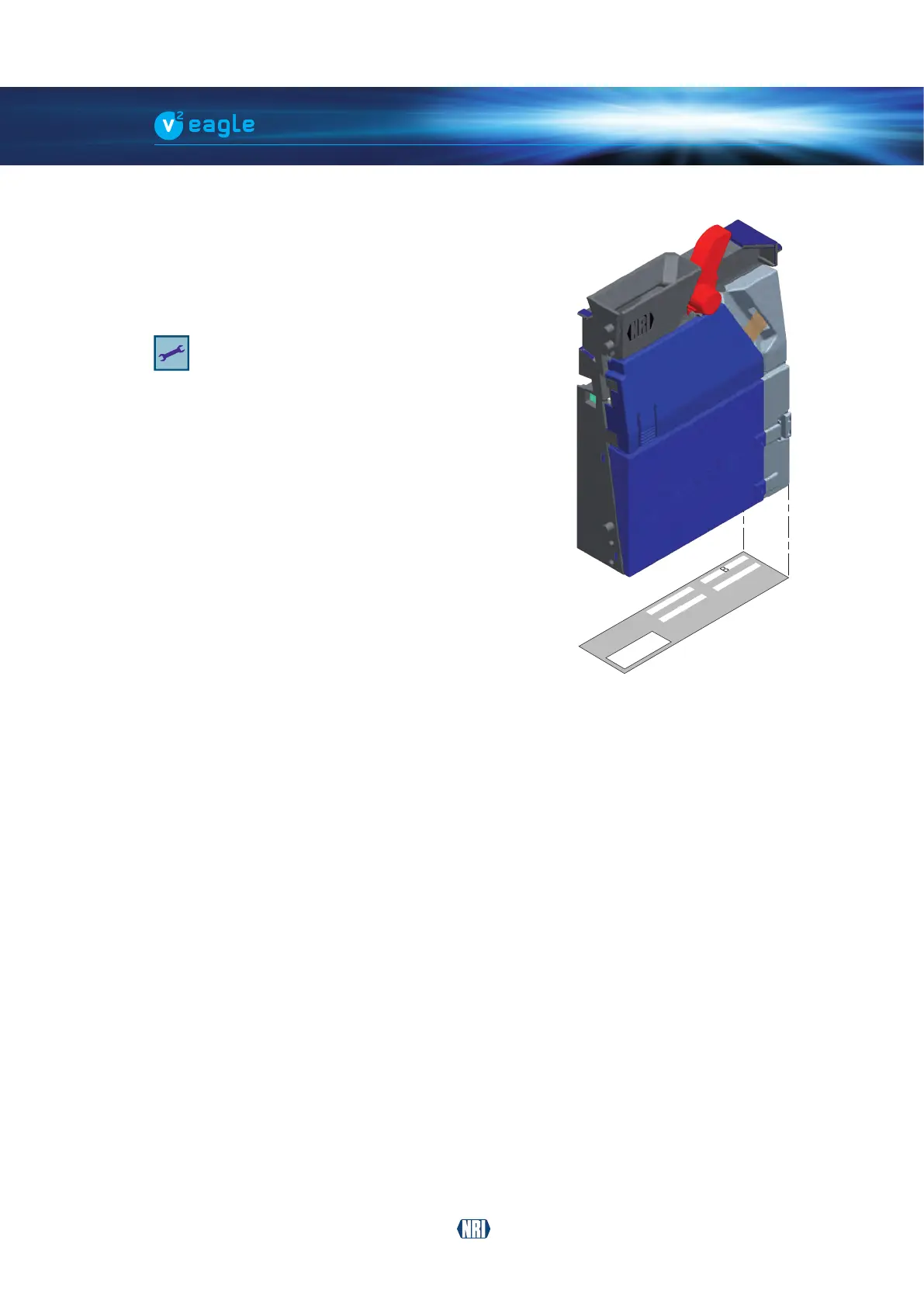

Fig. 8: Sorting chutes of
4-fold sorting system
