NRI v2 eagle - Model Number Decoding; Data Block Decoding

16
BA_v2_eagle_parallel_EN_1-0
Design

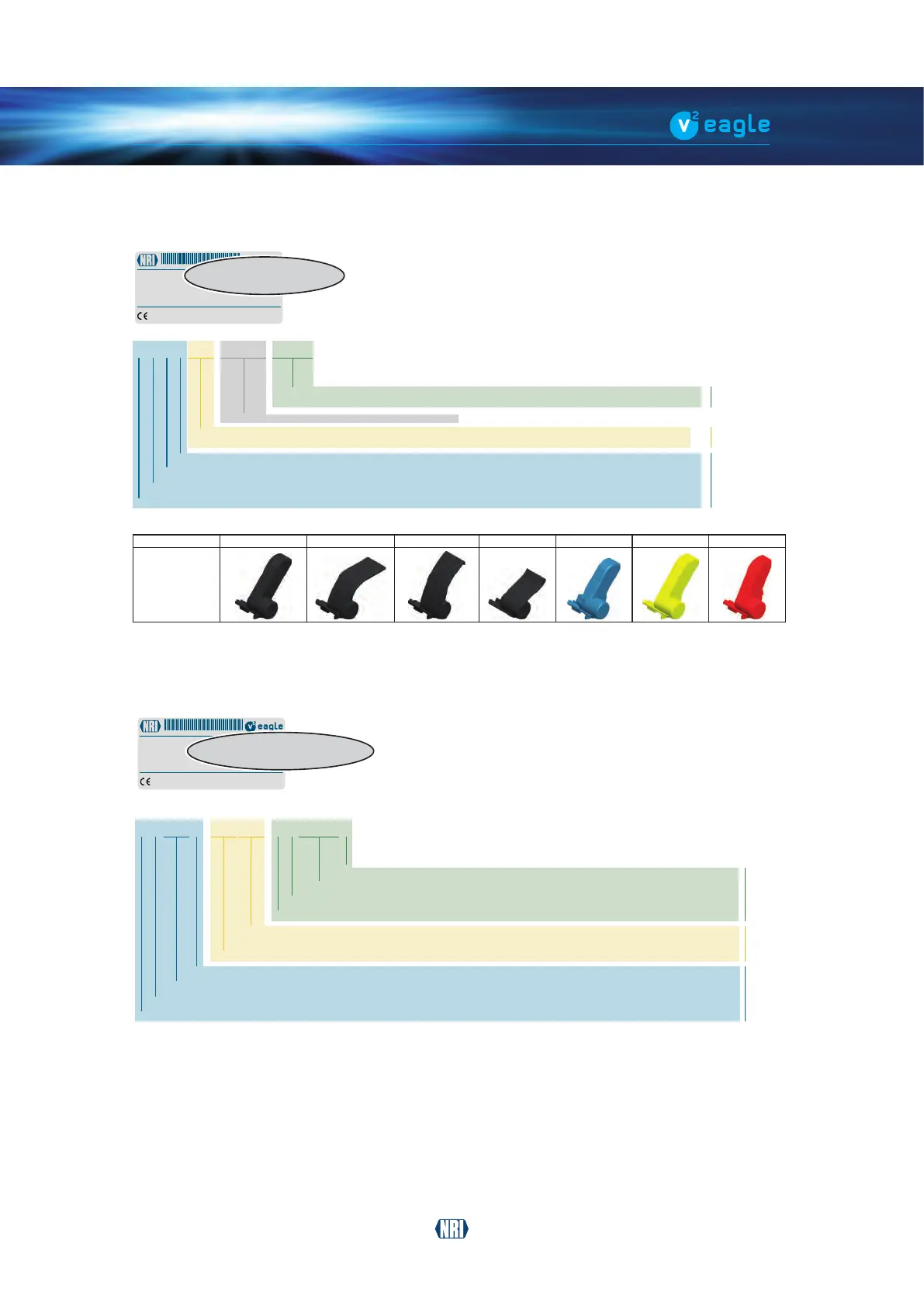

4.3.1 Model number decoding
Machine interface
Equipment
Options
11.10 Hns/Roe
Version 1.9
K.V2E-EN
MODEL NUMBER DECODING
EXXXXX.XX/X.XXX
Options – Diverter interface (s
2
HSD), Encryption, Hardness sensor, Jam sensor, Opto sensor, P = Write
protection,
String detection, Water protected
Manufacturing process – internal option code & revision
Machine interface –
C0 = ccTalk, C1 = ccTalk with USB, C3 = ccTalk for 4-way sorter, C4 = ccTalk ACMI, P4 = BDTA,#
P5 = BACTA, S0 = S1
Coin return lever –
0 = no lever 1–8 = rf. table
Sorting –
1..5 = without sorting with  xed cash box chute 1..5, 7 = 4-fold sorter, 8 = 5-fold in-line sorter, 9 = 5-fold cross-way sorter
Coin entry/outlet –
1 = Top entry, 3 = Front entry/bottom return, 4 = Front entry & return
v
2
family – Eagle
Coin return lever # 1 2 3 4 5 6 8
Crane Payment Solutions GmbH • Zum Fruchthof 6 • D-21614 Buxtehude • Tel.: +49 (0) 41 61-729-0 • Fax: +49 (0) 41 61-729-115 • E-mail: info@craneps.com • www.craneps.com
0010118880/0010/0004
11/13
12-24V DC
EUR -,10 / -,20 / -,50 / 1,- / 2,-
EUR -,10 / -,20 / -,50 / 1,- / 2,-
E178C3.00/0.EFPS
E0C30-EUEU-22002A FW: 445-04.46 |ccTalk|
Crane Payment Solutions GmbH
+49 (0) 41 61/729-0 | info@craneps.com
MADE IN GERMANY
XXXXXXXXXXXXXXXXXXXXXXXXXX
E181C0.00/0.EPS
4.3.2 Data block decoding
Currency
Hardware
Confi guration
11.10 Hns/Roe
Version 1.6
K.V2E-EN
DATA BLOCK NUMBER DECODING
EXXXX-XXXX-XXXXXX
Data block revision A–Z
3-digit consecutive number
Write protection –
0 = No protection, 1 = ACMI, 2 = VDAI
Memory block/Coin channels –
1 = 1 x 32 coin channels, 2 = 2 x 16 coin channels
Second currency –
XX = First 2 digits of ISO4217 currency code, -- = no 2
nd
currency, +2 = 2
nd
& 3
rd
currency,
+3 = 2
nd
, 3
rd
& 4
th
currency
Main currency –
XX = First 2 digits of ISO4217 currency code (EU = Euro, CH = Swiss franc, US = US dollar)
Hardware relevant to coin acceptance –
0 = Top entry, 2 = Front entry
Machine interface –
C0 = ccTalk, C1 = ccTalk with USB, C3 = ccTalk for 4-way sorter, C4 = ccTalk ACMI, P4 = BDTA, P5 = BACTA, S0 = S1
Measurement variant – V
0, V1
v
2
family
–
E
agle
Crane Payment Solutions GmbH • Zum Fruchthof 6 • D-21614 Buxtehude • Tel.: +49 (0) 41 61-729-0 • Fax: +49 (0) 41 61-729-115 • E-mail: info@craneps.com • www.craneps.com
0010118880/0010/0004
11/13
12-24V DC
EUR -,10 / -,20 / -,50 / 1,- / 2,-
EUR -,10 / -,20 / -,50 / 1,- / 2,-
E178C3.00/0.EFPS
E0C30-EUEU-22002A FW: 445-04.46 |ccTalk|
Crane Payment Solutions GmbH
+49 (0) 41 61/729-0 | info@craneps.com
MADE IN GERMANY
XXXXXXXXXXXXXXXXXXXXXXXXXX
E0C00-EUCH-20243A
