funcTion
D
C
A
B
Return

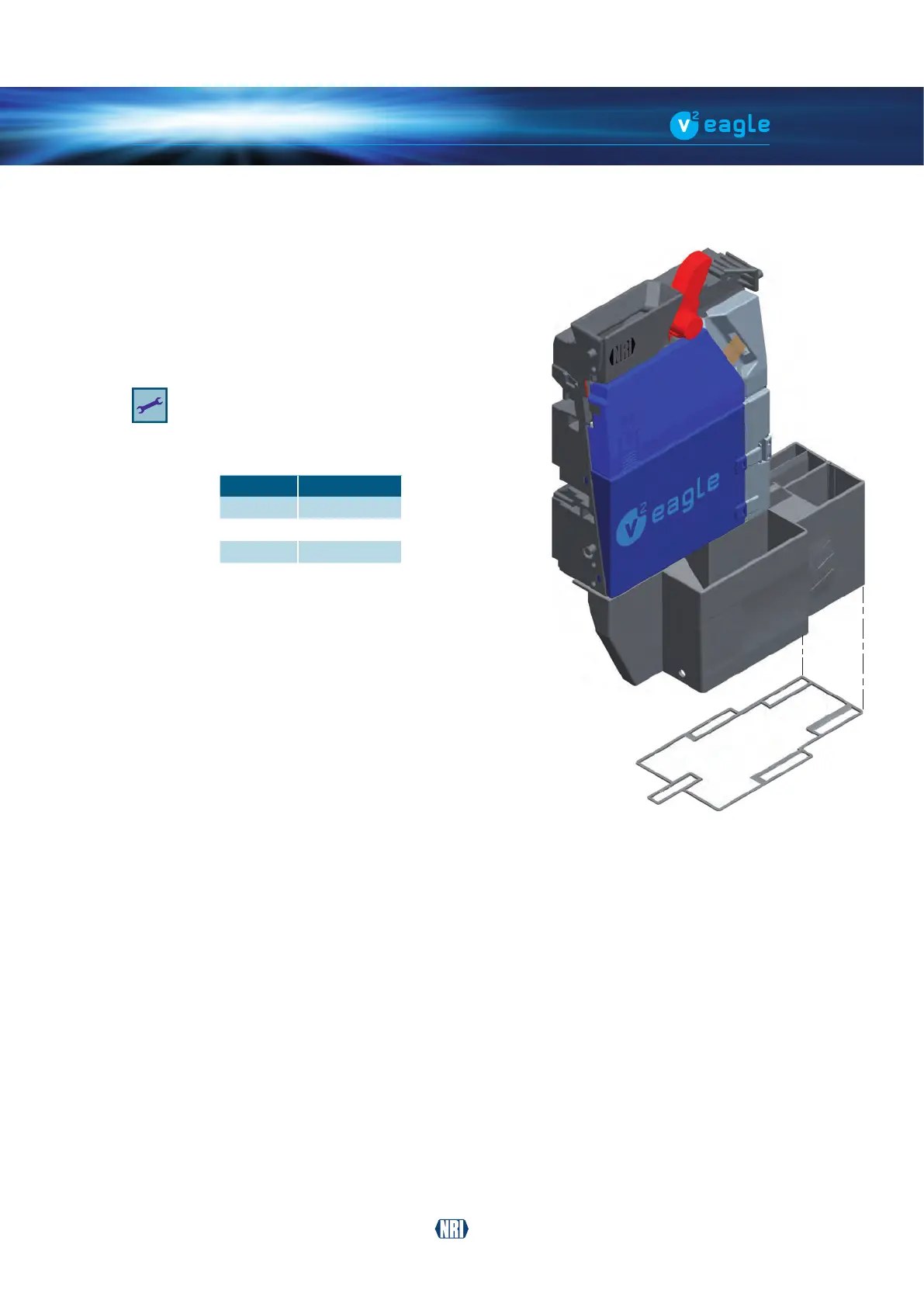

Fig. 9: Sorting chutes A–D of Money Controls
4-way manifold
5.7.2.1 Sorting with Money Controls 4-way manifold
For the purpose of splitting-up and for better transport
of the sorted coins you have the option of a Money
Controls 4-way manifold which can be screwed to the
coin validator from the bottom. This adapter is primarily
used in AWP and SWP slot machines.
If the sorting adapter is installed four sorting chutes are
available to you
(cf. Chap. 10.3.2 Manifolds/sorters, p. 52).
Which coin is sorted into which of the up to four chutes
isdeterminedbycustomizedfactoryprogramming.
The following table shows which manifold chute
corresponds to which coin validator chute:
Manifold chute v² eagle sorting chute
A A
B B
C C
D D
