Nvidia ConnectX-7 - Brackets Mechanical Drawings and Dimensions

83
Single-port x16 QSFP112 Adapter Card Quad-port SFP56 Adapter Card 
TBD TBD
Single-port x16 OSFP Adapter Card Auxiliary PCIe Connection Card

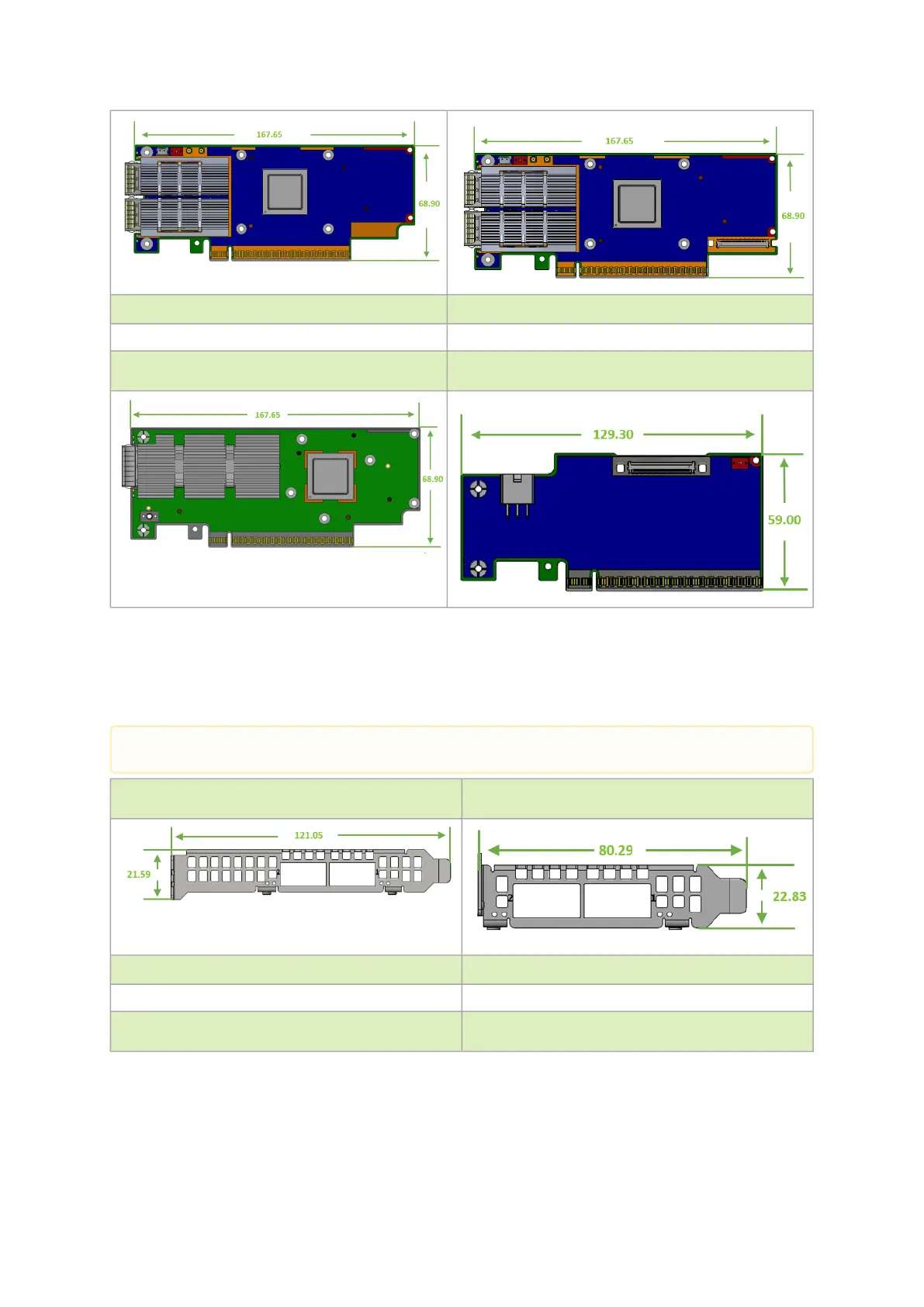

Brackets Mechanical Drawings and Dimensions
Dual-port QSFP112 Tall Bracket Dual-port QSFP112 Short Bracket
Single-port QSFP112 Tall Bracket Single-port QSFP112 Short Bracket
TBD TBD
Single-port OSFP Tall Bracket Single-port OSFP Adapter Card Short Bracket
All dimensions are in millimeters. The PCB mechanical tolerance is +/- 0.13mm.

