The fuser unit is extremely hot. Be careful not to touch it. If the fuser
unit is hot, do not try yourself to clear paper but wait until the fuser
unit becomes cool.
Personal injuries may occur.
Handle
Fuser unit
lock lever
(bleu)
Fuser unit
lock lever
(bleu)
Shaft

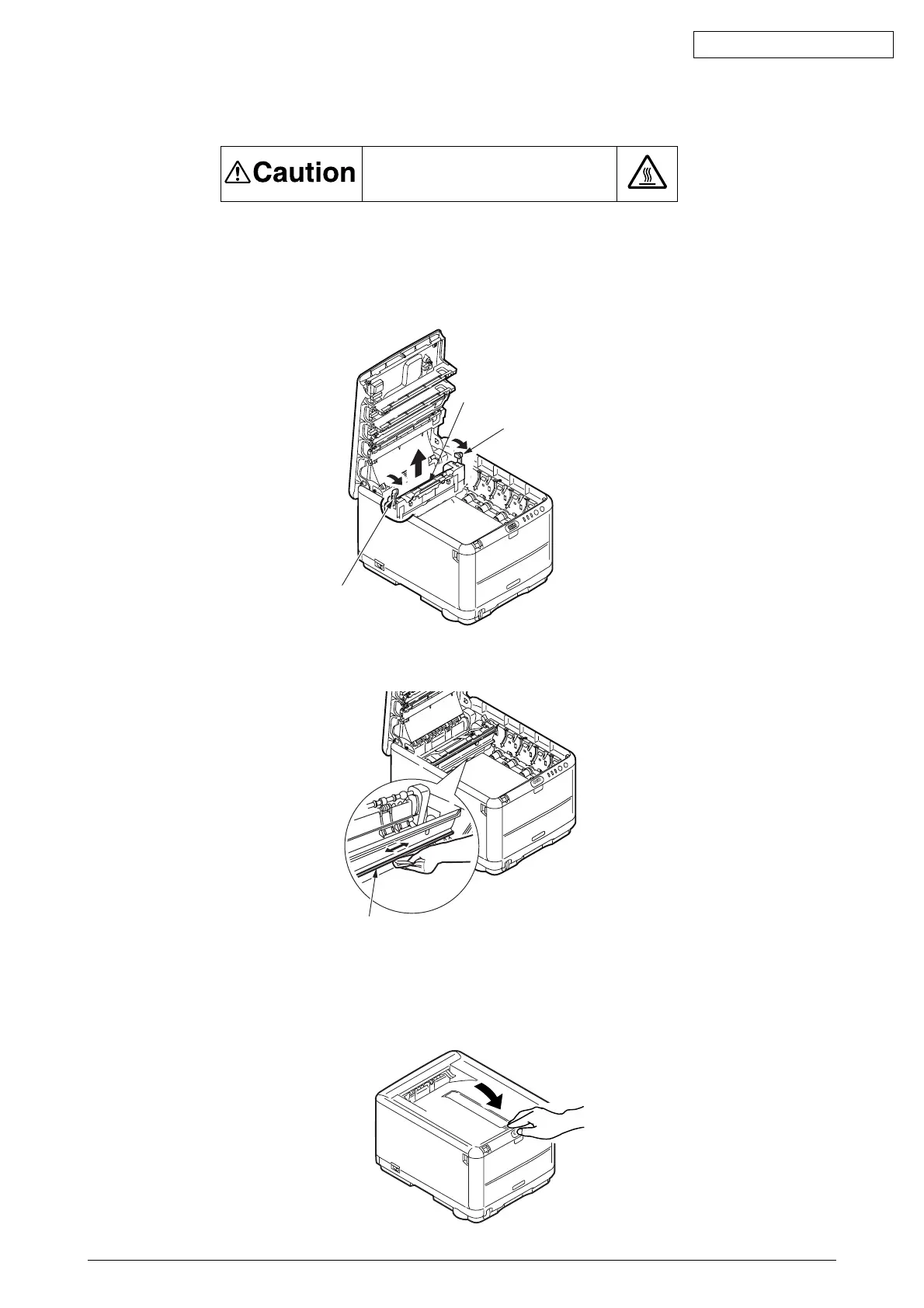

(4) Take out the fuser unit.
1. Pull the 2 blue lock levers of the fuser unit in the direction of arrows.
2. Hold the handle of the fuser unit and take it out.
(5) Use LED lens cleaner, soft cloths or tissue paper to wipe the metal shaft.
(6) Set the fuser unit.
For more detailed information, please refer to the Users’ Manual Setup part, [Change the
fuser unit].
(7) Gently put the 4 image drum cartridges back into your printer.
(8) Close the top cover.
