8. CONNECTION DIAGRAMS
8.1 Check of resistance values
M
1
2
3
4
IP1
Unit

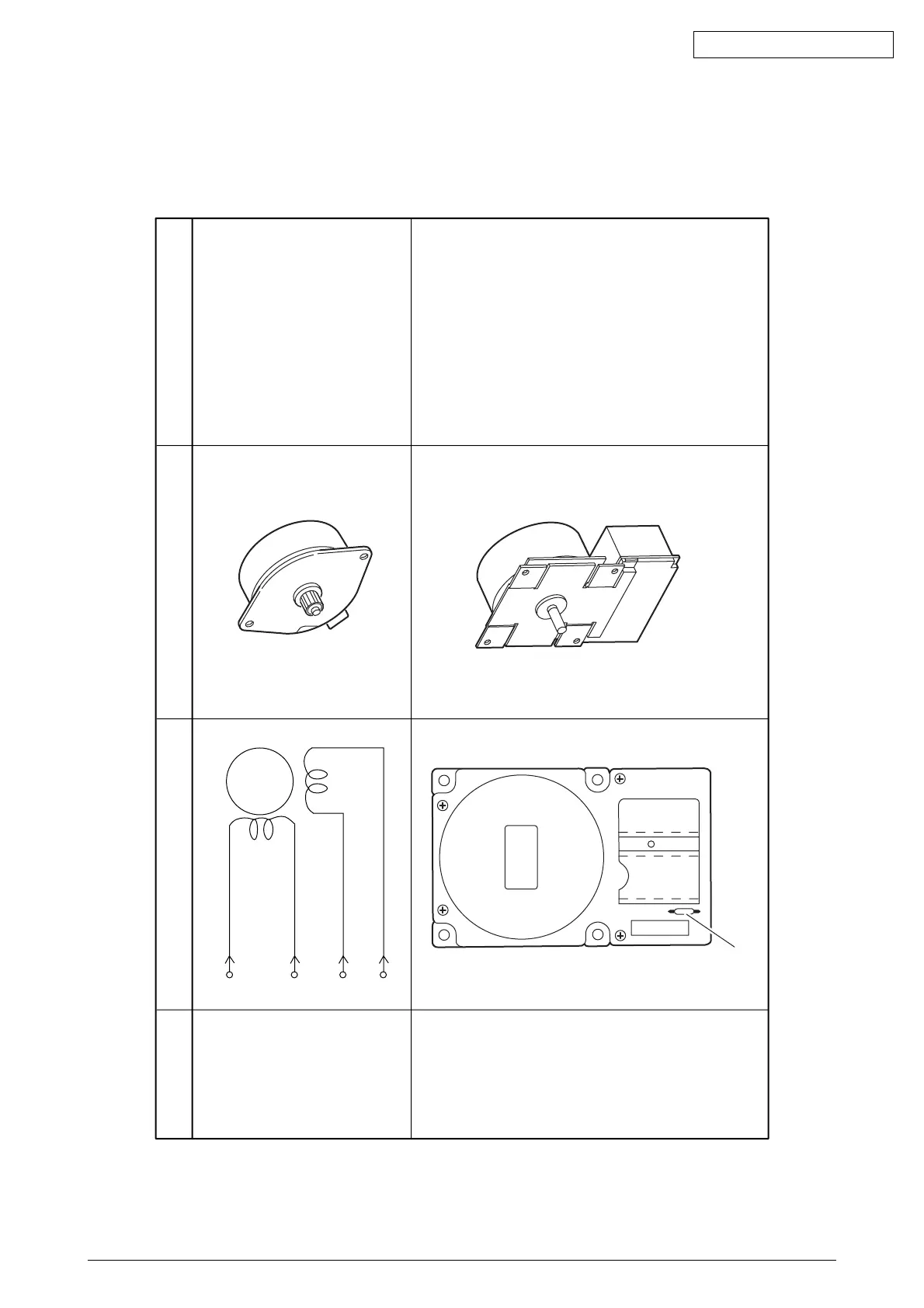

Circuit diagram & configuration
Part schematic Resistance value
ID motor
Transport belt
motor
Red
Blue
Yellow
Brown
Between pin 1 and pin 2: 3.5Ω
Between pin 3 and pin 4: 3.5Ω
or
Between pin 1 and pin 2: 4.4Ω
Between pin 3 and pin 4: 4.4Ω
or
Between pin 1 and pin 2: 4.5Ω
Between pin 3 and pin 4: 4.5Ω
Both ends of IP1: 1Ω or less
