3.5 Assembly Procedure
3.5.1 Printer Main Body

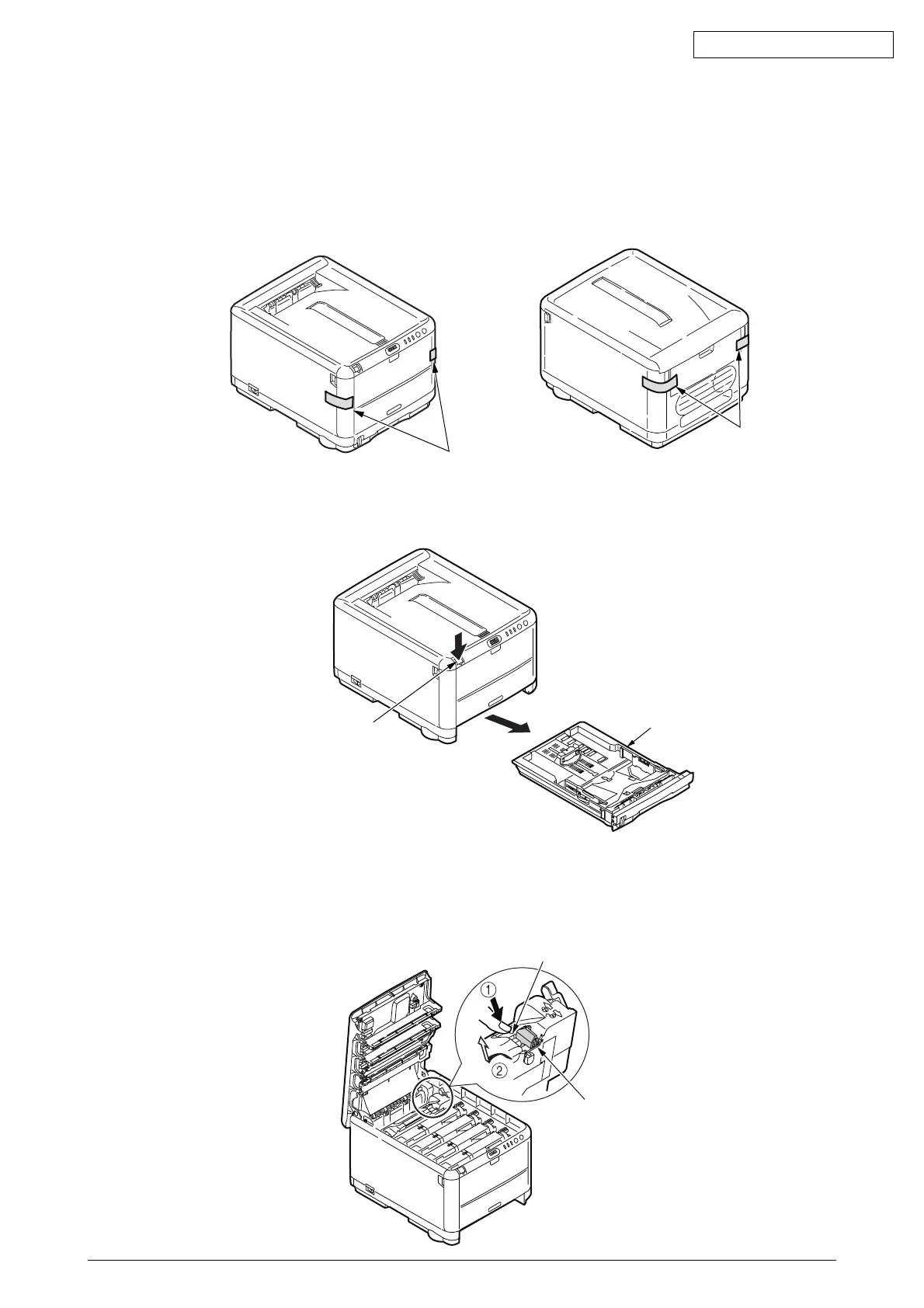

Remove Protective Equipment
(1) Remove front protection tapes (2 places) and back protection tapes (2 places) of the printer.
Protection tapes
Protection tapes
(2) Pull out the paper cassette.
(3) Press the open button and open the top cover.
Paper Cassette
Open Button
(4) Remove the stopper release (orange color) while pushing down the lever (blue) of the fuser unit
in the direction of arrow 1.
Note! Explain to the customer that the stopper release must be kept as it would be used at the
time of transporting the printer.
Stopper release (orange)
Lever of the fuser unit (blue)
