Oki C3400N Maintenance Manual

Oki Data CONFIDENTIAL
43163501TH Rev. 1 16 /
-
-
-
-
-
-
Electrification roller
OPC drum
Power
supply
unit
2. OPERATION DESCRIPTION
2.1 Electrophotographic Process Mechanism
(1) Electronic photography Process
Electronic photography process is outlined as follows:
1. Electrification
Electric voltage is impressed on CH roller and the surface of CPC drum is electrified.
2. Exposure
LED head radiates light on the electrified surface of OPC drum following the image
signal. Electric charge on the radiated OPC drum surface abates depending on the
intensity of light and static latent image is formed on the OPC drum surface.
3. Development
Electrified toner is adhered to the static latent image on the OPC drum by static electric-
ity and a visible image is formed on the OPC drum surface.
4. Transcript
A sheet of paper is put upon the OPC drum surface and the toner image is transferred
on the paper by impressing electric charge on its back side by the transcript roller.
5. Drum Cleaning
Drum cleaning blade eliminates the remaining toner on the OPC drum after transfer.
6. Belt Cleaning
Belt cleaning blade eliminates the remaining toner on the belt.
7. Fusing
The toner image on the paper is fused by adding heat and pressure.

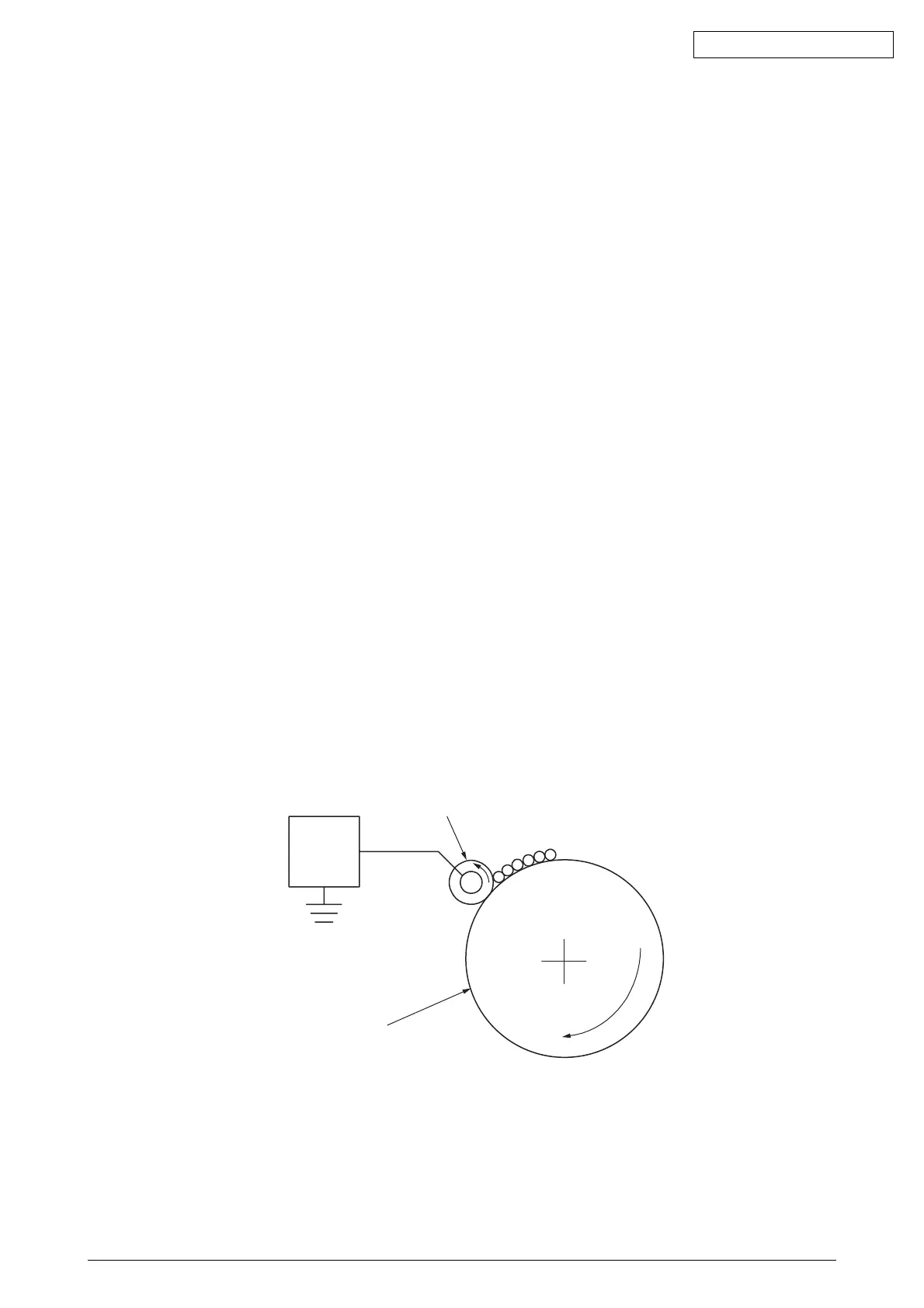

(2) Electrification
Electric voltage is impressed on electrification roller touching on the OPC drum surface and
thus the OPC drum surface is electrified.

Oki C3400N Specifications

Paper Handling

standard paper input capacity	250 sheets
multi-purpose tray capacity	single-sheet
manual duplex printing	yes

Performance

print speed color	16 ppm
print speed mono	20 ppm
time to first page color	13 sec.
time to first page mono	9 sec.
print resolution	1200 x 600 dpi
duty cycle	35, 000 pages/month

Paper Sizes and Weights

main tray paper size range	4.1" x 5.8" to 8.5" x 14"
multi-purpose tray paper size range	3" x 5" to 8.5" x 47.24"
main tray paper weight range	17 lb. to 32 lb. bond
manual feed paper weight range	20 lb. bond to 110 lb. bond

Memory

standard memory	32 MB
maximum memory	288 MB

Supplies

standard toner cartridge life color	1, 000 pages
standard toner cartridge life black	1, 500 pages
high-capacity toner cartridge life color	2, 000 pages
high-capacity toner cartridge life black	2, 500 pages
image drum life	15, 000 pages

Weight and Dimensions

width	14.8"
depth	18.9"
height	11.4"
weight	46.2 lb.
