Oki C3400N Maintenance Manual

Oki Data CONFIDENTIAL
43163501TH Rev. 1 17 /
-
-
-
-
-
-
-
-
-
LED head
Electrified roller
OPC drum
OPC drum
Paper
Power
supply
unit
LED head
-
-
-
-
-
-
-
-
-
-
-
-
Electrified roller
Development roller
Sponge roller
OPC drum

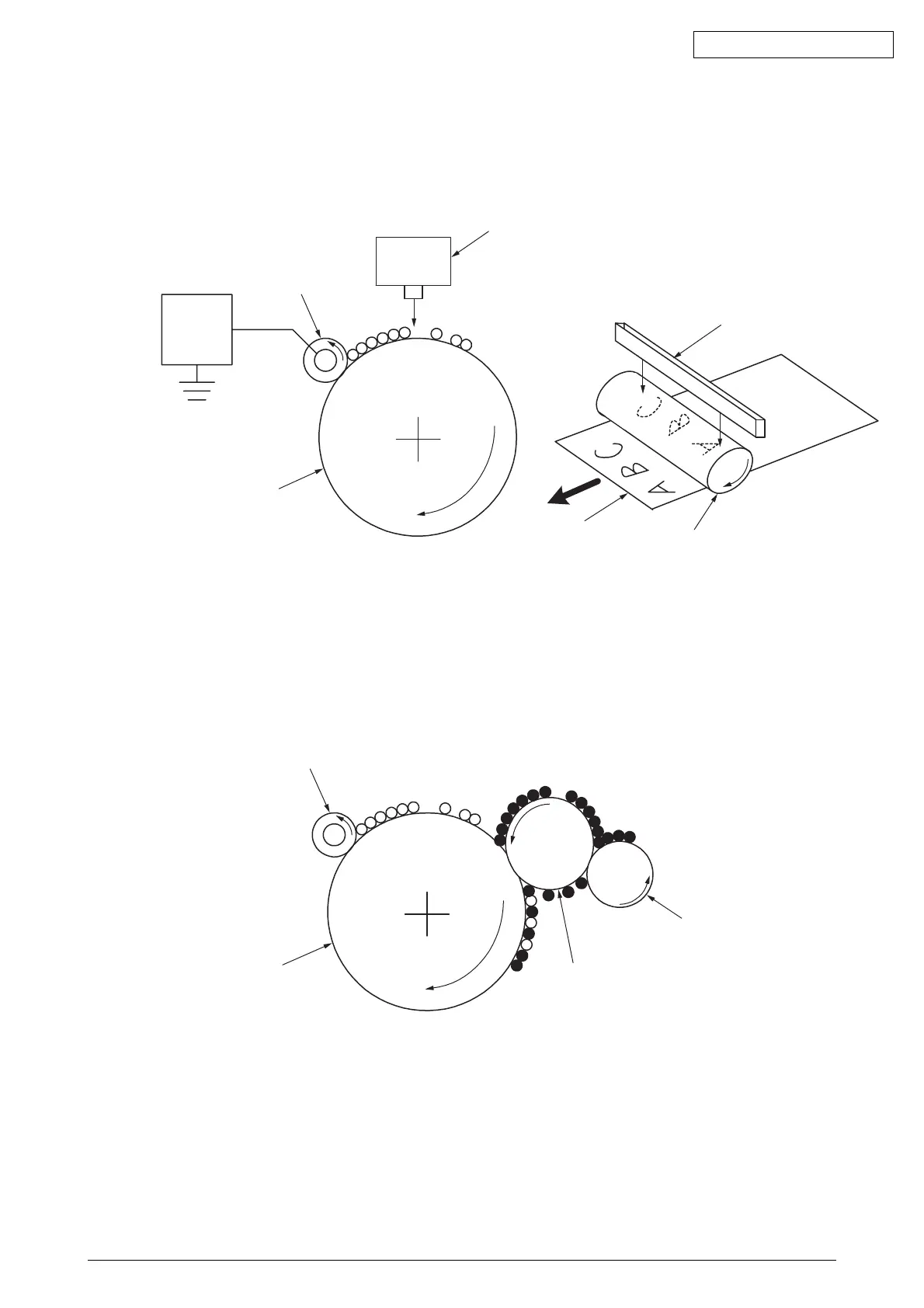

(3) Exposure
The light emanated from the LED head is radiated on the OPC drum surface. The electric
charge on the radiated portion of the OPC drum surface abates by intensity of the light and a
static latent image is formed on the OPC drum surface.
(4) Development
Adhere the toner to the static latent image on the drum surface and change it to the toner image.
1. The sponge roller let the toner adhere to the development roller.
2. The static latent image on the OPC drum surface is changed to a visible image by the toner.

Oki C3400N Specifications

Paper Handling

standard paper input capacity	250 sheets
multi-purpose tray capacity	single-sheet
manual duplex printing	yes

Performance

print speed color	16 ppm
print speed mono	20 ppm
time to first page color	13 sec.
time to first page mono	9 sec.
print resolution	1200 x 600 dpi
duty cycle	35, 000 pages/month

Paper Sizes and Weights

main tray paper size range	4.1" x 5.8" to 8.5" x 14"
multi-purpose tray paper size range	3" x 5" to 8.5" x 47.24"
main tray paper weight range	17 lb. to 32 lb. bond
manual feed paper weight range	20 lb. bond to 110 lb. bond

Memory

standard memory	32 MB
maximum memory	288 MB

Supplies

standard toner cartridge life color	1, 000 pages
standard toner cartridge life black	1, 500 pages
high-capacity toner cartridge life color	2, 000 pages
high-capacity toner cartridge life black	2, 500 pages
image drum life	15, 000 pages

Weight and Dimensions

width	14.8"
depth	18.9"
height	11.4"
weight	46.2 lb.
