4.2.9 Control pane assembly
(1) Open the top cover.
(2) Open the front cover.
(3) Remove the right side cover (See Subsection 4.2.2)
(4) Remove the plate shield front and cable (See Subsection 4.2.16)
(5) Detach FFC which connects the control panel assembly with the control panel PCB.
(6) Take out four screws (silver) 1 to remove the control panel assembly 2. (Tool No.1)

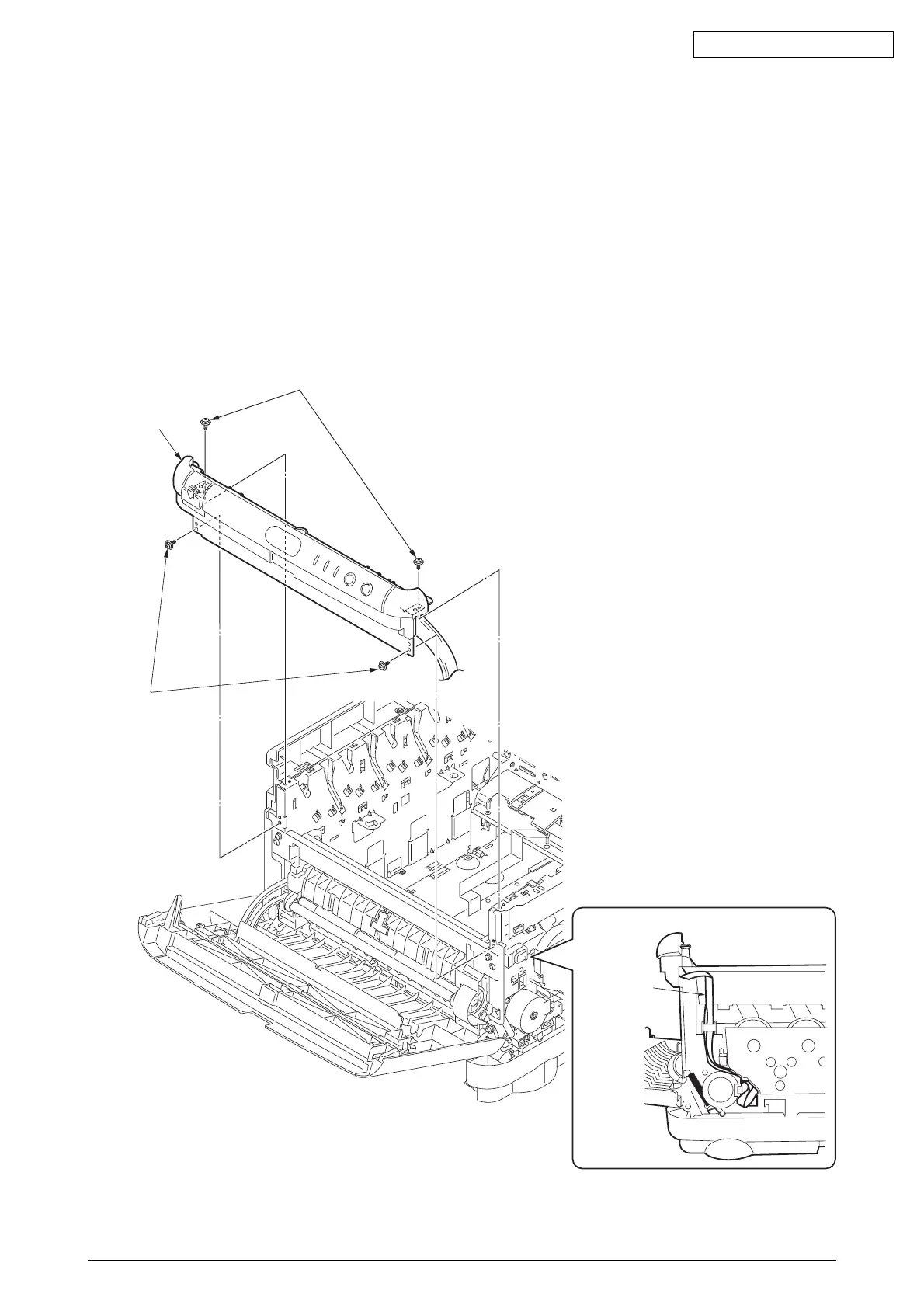

Figure 4-2-9 Control pane assembly
1
2
OP cable
1
