Oki C3400N - Plate Shield Rear

43163501TH Rev.1 73 /
Oki Data CONFIDENTIAL
4.2.18 Plate shield rear
(1) Remove the left side cover. (See Subsection 4.2.1)
(2) Remove the right side cover. (See Subsection 4.2.2)
(3) Remove the rear cover. (See Subsection 4.2.3)
(4) Remove the top cover assembly. (See Subsection 4.2.5)
(5) Remove the color registration assembly. (See Subsection 4.2.17)
(6) Remove the plate shield front. (See Subsection 4.2.16)
(7) Remove the low voltage power supply. (See Subsection 4.2.22)
(8) Remove the BLA board (main board.) (See Subsection 4.2.23)
(9) Takeout two screws (silver) 1 to remove the plate heat 2.
(10) Remove latches of the gear lift up 3 to detach a shaft 4.
(11) Take out three screws (silver) 5 to remove the plate shield rear 6.

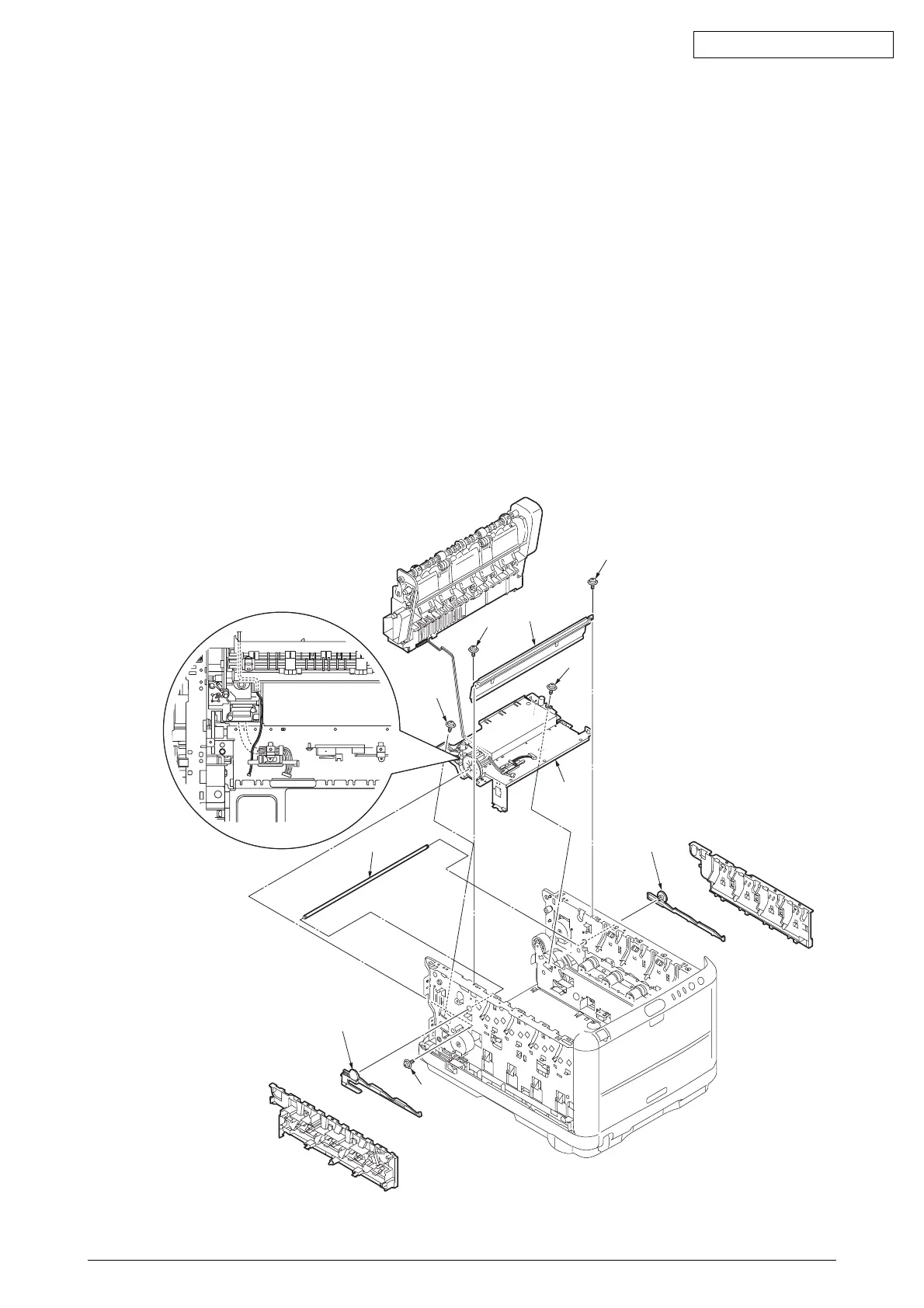

Figure 4-2-18 Plate shield rear
6
2
1
3
5
4
5
5
1
3
