4.2.13 Face up tray
(1) Remove the left side cover. (See Subsection 4.2.1)
(2) Remove the right side cover. (See Subsection 4.2.2)
(3) Remove the rear cover. (See Subsection 4.2.3)
(4) Remove the supporting points of the face up tray 1 with a flat blade screwdriver. (Tool No.3)

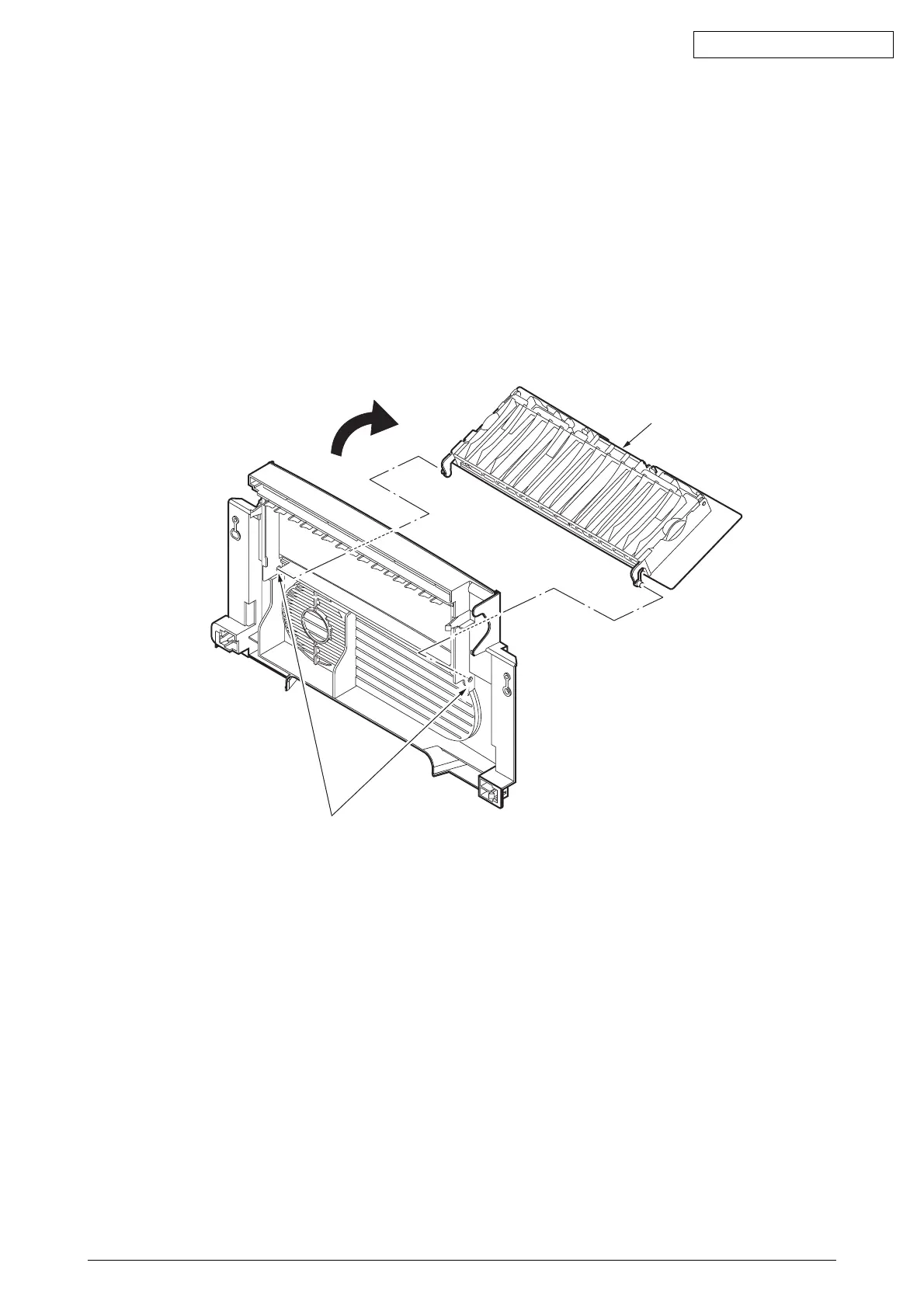

Figure 4-2-13 Face up tray
1
Support point (2 places)
