Oki C3400N Maintenance Manual

Oki Data CONFIDENTIAL
43163501TH Rev. 1 14 /
2
34
1
Name of Signal Function
1 Vbus Power Supply (+5V) (red)
2 D - Data transmission (white)
3 D + Data transmission (green)
4 GND Signal ground (black)
Shell Shield
1.5 Interface Specification
1.5.1 USB Interface Specification (C3400n)
1.5.1.1 Outline of USB Interface
(1) Basic Specification
USB (C3400n supports Hi-Speed USB)
(2) Transmission Mode
Full speed (12Mbps±0.25% max.)
Hi speed (480Mbps±0.05% max.)
(3) Power Control
Self power device
1.5.1.2 USB Interface Connector and Cable
(1) Connector
• Printer side: B receptacle
Upstream port
Equivalent of UBR24-4K5C00 (made by ACON)

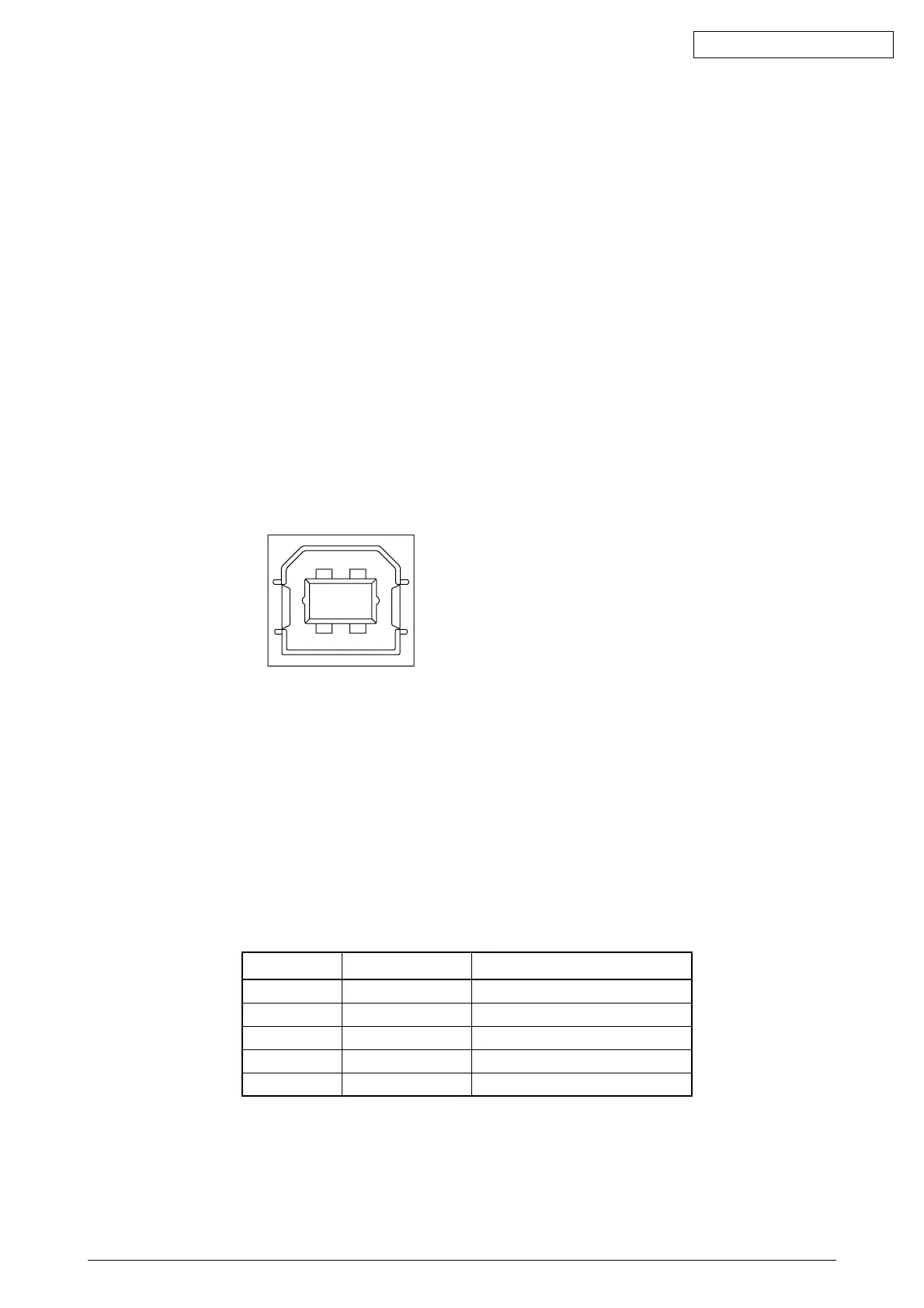

Connector pin arrangement
• Cable side: B plug (off)
(2) Cable
Cable length: Specification Cable of USB2.0 spec. of less than 5m.(less than 2m is
recommended)
(Shielded cable is used here.)
1.5.1.3 UBS Interface Signal

Oki C3400N Specifications

Paper Handling

standard paper input capacity	250 sheets
multi-purpose tray capacity	single-sheet
manual duplex printing	yes

Performance

print speed color	16 ppm
print speed mono	20 ppm
time to first page color	13 sec.
time to first page mono	9 sec.
print resolution	1200 x 600 dpi
duty cycle	35, 000 pages/month

Paper Sizes and Weights

main tray paper size range	4.1" x 5.8" to 8.5" x 14"
multi-purpose tray paper size range	3" x 5" to 8.5" x 47.24"
main tray paper weight range	17 lb. to 32 lb. bond
manual feed paper weight range	20 lb. bond to 110 lb. bond

Memory

standard memory	32 MB
maximum memory	288 MB

Supplies

standard toner cartridge life color	1, 000 pages
standard toner cartridge life black	1, 500 pages
high-capacity toner cartridge life color	2, 000 pages
high-capacity toner cartridge life black	2, 500 pages
image drum life	15, 000 pages

Weight and Dimensions

width	14.8"
depth	18.9"
height	11.4"
weight	46.2 lb.
