(2) Do not disassemble the printer as long as it is operating normally.
(3) Limit disassembly to a necessary minimum. Do not remove other parts than those specified
in the part replacement procedure.
(4) Use the designated maintenance tools.
(5) Conduct disassembly by following the specified sequential order. Failure to observe this order
could damage the parts.
(6) Screws, collars and other small parts should be attached provisionally to their original
positions, since they are liable to be lost.
(7) When handling a microprocessor, ROM, RAM and other ICs and circuit boards, do not wear
gloves that tend to generate static electricity.
(8) Printed-circuit boards should not be placed directly on an equipment or floor.
4. REPLACEMENT OF PARTS
This section explains the field replacement procedures for parts, assemblies and component units.
While those replacement procedures refer to the disassembling of parts, follow the same
procedures inversely for reassembling them.
The part numbers (1, 2, etc.) employed in this manual are different from those assigned in the
corresponding configuration diagrams of Disassembly for Maintenance (43163501TL) and RSPL
(43163501TR).
4.1 Precautions on the replacement of parts
(1) Prior to replacing a part, be sure to disconnect the AC cord and interface cable.

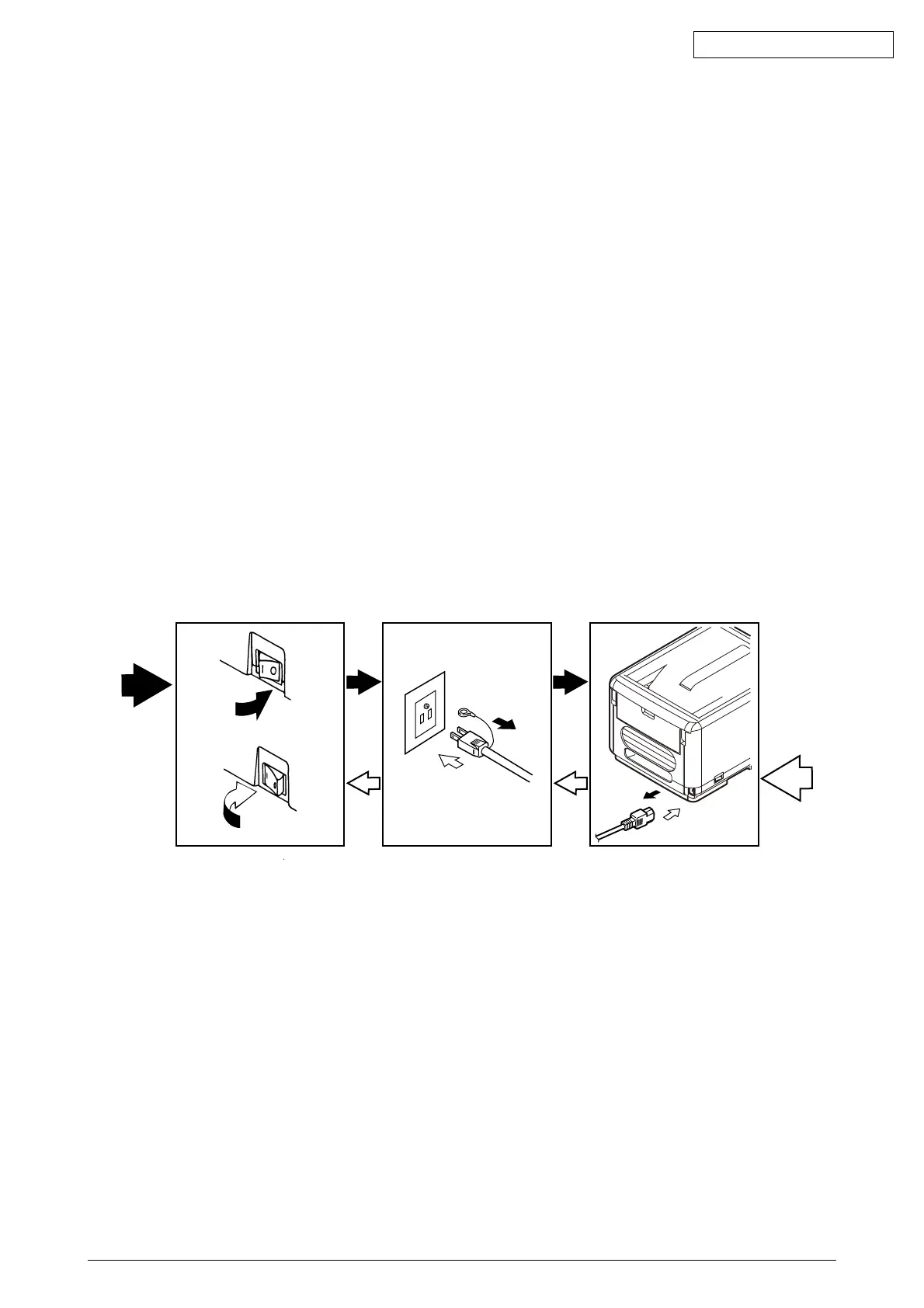

(a) To disconnect the AC cord, always follow the procedure described below:
1 Turn off ("O") the power switch of the printer.
2 Pull out the AC plug of the AC cord from the AC power outlet.
3 Unplug the AC cord and interface cable from the printer.
(b) To reconnect the printer, always follow the procedure described below:
1 Plug the AC cord and interface cable into the printer.
2 Insert the AC plug into the AC power outlet.
3 Turn on ("|") the power switch of the printer.
Disconnect
Connect

Oki C3400N Specifications

Paper Handling

standard paper input capacity	250 sheets
multi-purpose tray capacity	single-sheet
manual duplex printing	yes

Performance

print speed color	16 ppm
print speed mono	20 ppm
time to first page color	13 sec.
time to first page mono	9 sec.
print resolution	1200 x 600 dpi
duty cycle	35, 000 pages/month

Paper Sizes and Weights

main tray paper size range	4.1" x 5.8" to 8.5" x 14"
multi-purpose tray paper size range	3" x 5" to 8.5" x 47.24"
main tray paper weight range	17 lb. to 32 lb. bond
manual feed paper weight range	20 lb. bond to 110 lb. bond

Memory

standard memory	32 MB
maximum memory	288 MB

Supplies

standard toner cartridge life color	1, 000 pages
standard toner cartridge life black	1, 500 pages
high-capacity toner cartridge life color	2, 000 pages
high-capacity toner cartridge life black	2, 500 pages
image drum life	15, 000 pages

Weight and Dimensions

width	14.8"
depth	18.9"
height	11.4"
weight	46.2 lb.
