Oki C3400N Maintenance Manual

43163501TH Rev.1 58 /
Oki Data CONFIDENTIAL

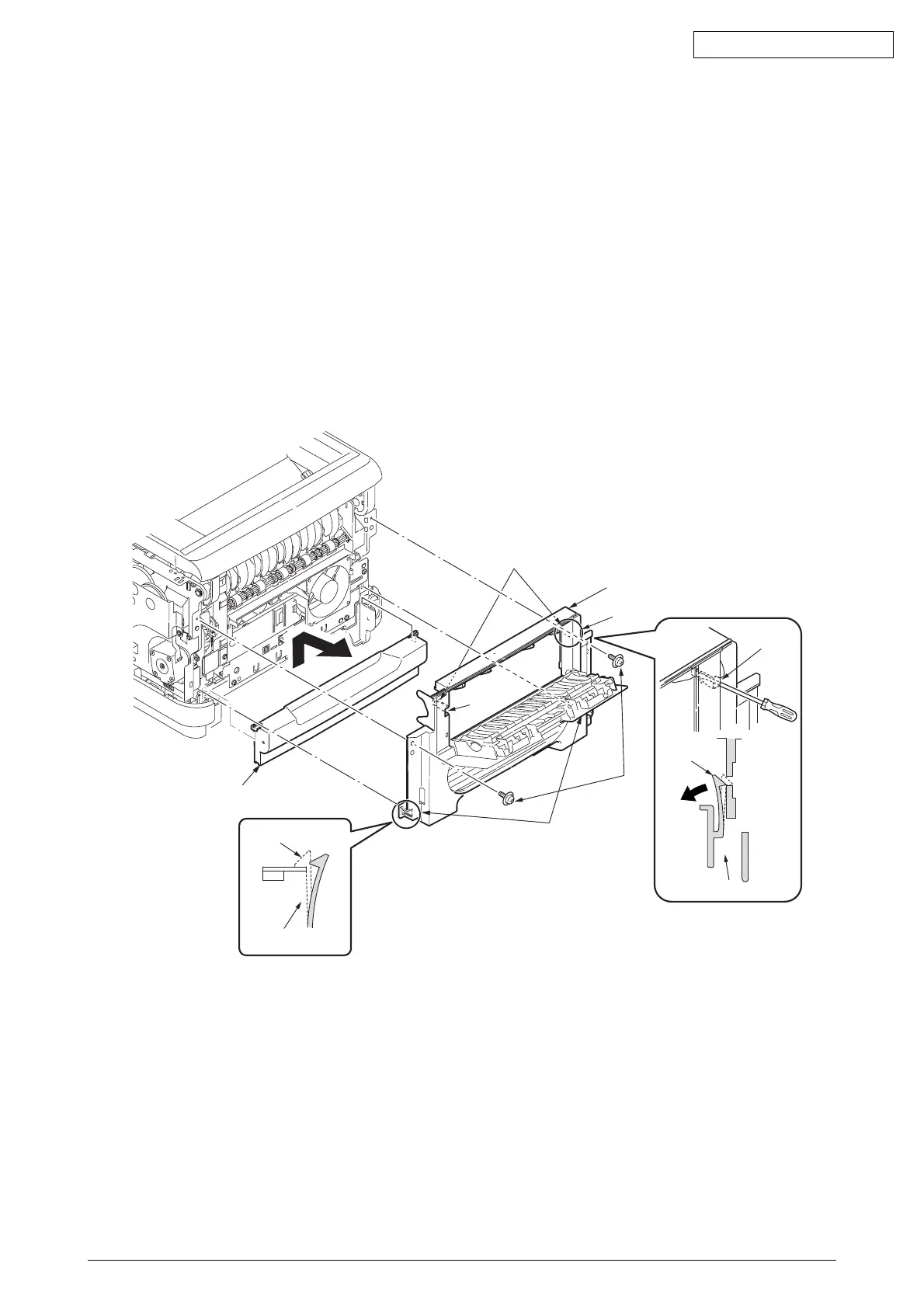

Figure 4-2-3 Rear cover
1
2
3
ClawA
ClawA
ClawB
HoleA
HoleA
HoleA
HoleA
Hole
4.2.3 Rear cover (Top/Bottom)
(1) Remove the left side cover. (See Subsection 4.2.1)
(2) Remove the right side cover. (See Subsection 4.2.2)
(3) Take out two screws (silver) 1. (Tool No.1)
(4) As shown in the drawing, put the flat-blade screwdriver (Tool No.3) into a hole A to remove
two claws A.
(5) Remove tow claws B by hand and then, remove the rear cover assembly 2.
(6) Lift the rear cover bottom 3 upward to detach it.

Oki C3400N Specifications

Paper Handling

standard paper input capacity	250 sheets
multi-purpose tray capacity	single-sheet
manual duplex printing	yes

Performance

print speed color	16 ppm
print speed mono	20 ppm
time to first page color	13 sec.
time to first page mono	9 sec.
print resolution	1200 x 600 dpi
duty cycle	35, 000 pages/month

Paper Sizes and Weights

main tray paper size range	4.1" x 5.8" to 8.5" x 14"
multi-purpose tray paper size range	3" x 5" to 8.5" x 47.24"
main tray paper weight range	17 lb. to 32 lb. bond
manual feed paper weight range	20 lb. bond to 110 lb. bond

Memory

standard memory	32 MB
maximum memory	288 MB

Supplies

standard toner cartridge life color	1, 000 pages
standard toner cartridge life black	1, 500 pages
high-capacity toner cartridge life color	2, 000 pages
high-capacity toner cartridge life black	2, 500 pages
image drum life	15, 000 pages

Weight and Dimensions

width	14.8"
depth	18.9"
height	11.4"
weight	46.2 lb.
