4.2.5 Top cover assembly
(1) Open the top cover.
(2) Remove the left side cover. (See Subsection 4.2.1)
(3) Remove the right side cover. (See Subsection 4.2.2)
(4) Detach the rear cover. (See Subsection 4.2.3)
(5) Remove the plate heat. (See Subsection 4.2.18)
(6) Remove the plate shield front. (See Subsection 4.2.16)
(7) Take out a screw (silver) 1.
(8) Remove the BLA-PCB (main board) (See Subsection 4.2.23), and then, remove the head
cable (FFC) and the RFID cable.
(9) Remove two E-type retaining rings 2 two sprint torsions 3 and the top cover assembly 4.

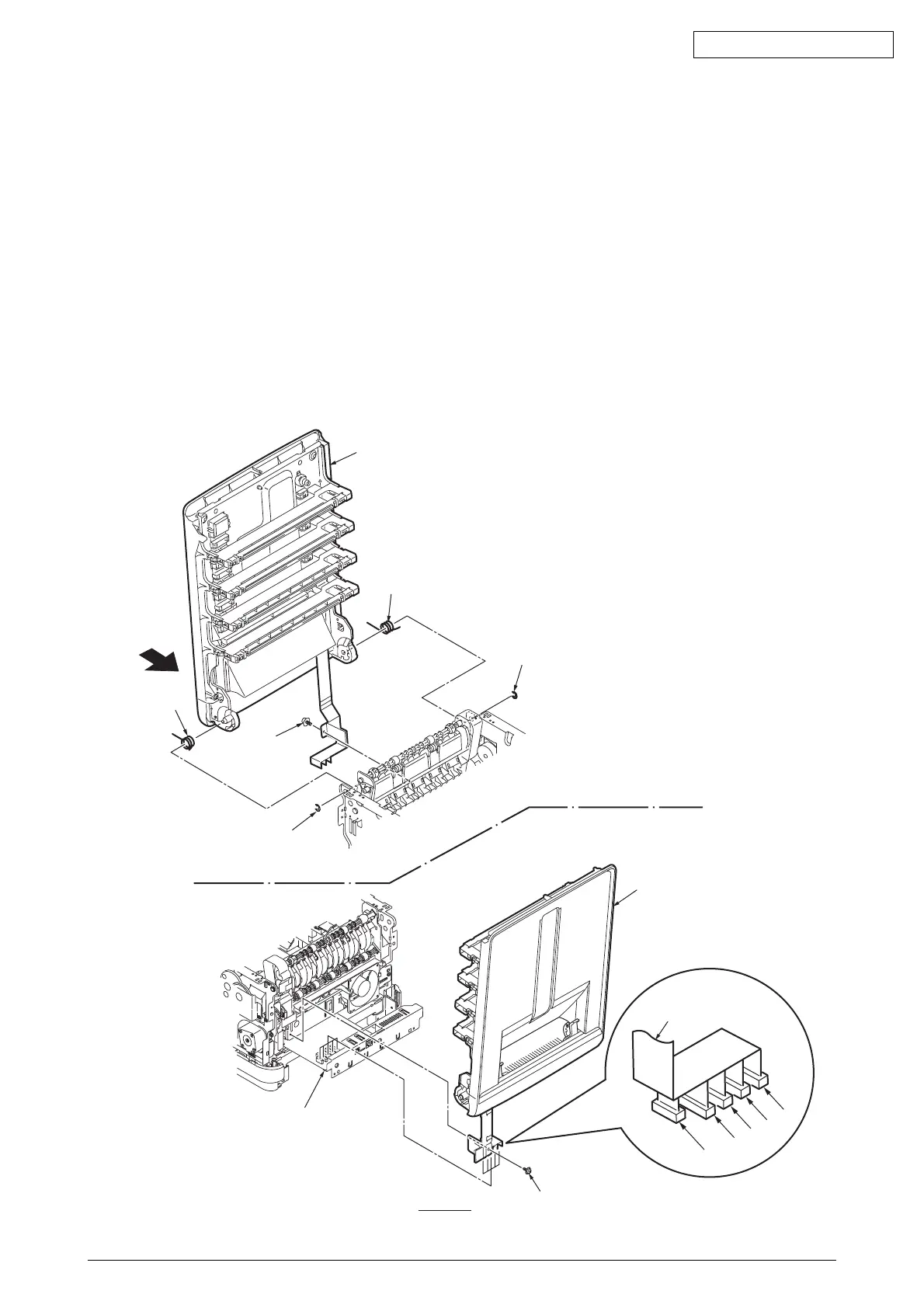

Figure 4-2-5 Top cover assembly
1
4
ViewA
ViewA
4
3
2
3
2
1
RFID
K
Y
M
C
Head cable(FFC)
BLA-PCB
(Main circuit board PCB)
