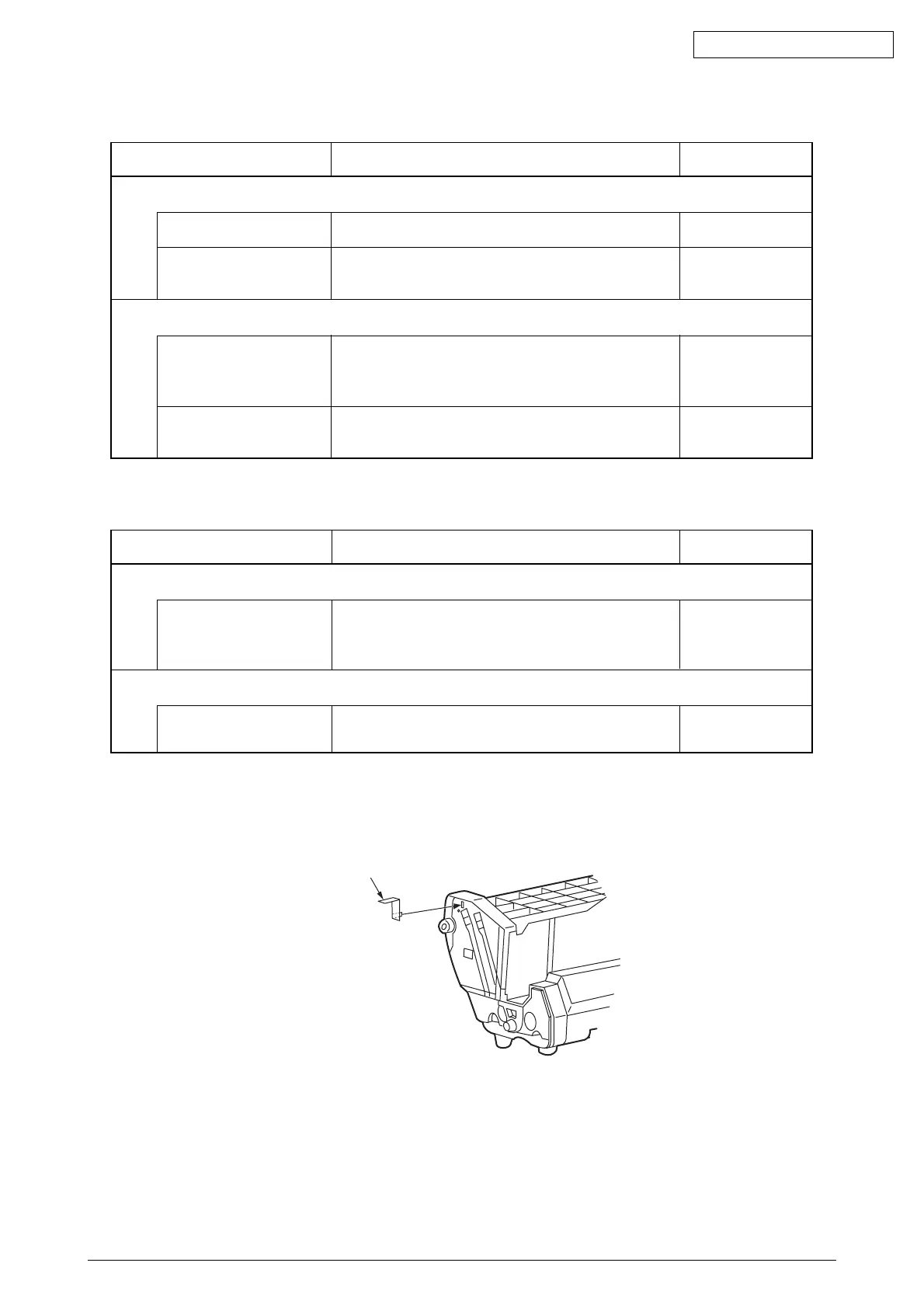

Oki Data CONFIDENTIAL
43163501TH Rev. 1 132 /
(2-3) Abnormal odor
Fuser unit
Low-voltage power supply
unit
Life count of fuser
Foreign confirmation of fuser
Confirmation Tasks
Take out the fuser and confirm the odor.
Take out the low-voltage power supply unit and confirm the
odor.
Confirm the life count of the fuser by the maintenance utility.
Confirm whether the fuser is jammed with foreign body such
as paper inside.
Action at NG
Perform (2-3-2).
Exchange low-voltage
power supply unit
It may have abnormal
smell around a new
printer.
Remove the foreign
body.
(2-3-1) Locate the position with abnormal odor occurred.
(2-3-2) Check the condition of fuser.
Confirmation Items
(2-4) Slow starting time
Halogen lamp
Expansion memory
Confirmation Tasks
Confirm the wattage of the halogen lamp mounted in the fuser.
Reset the optional parts (expansion memory) and recheck the
operation.
Action at NG
Exchange for wattage
parts of the rated
voltage.
Exchange optional
parts
(2-4-1) Check a fuser unit
(2-4-2) Check optional parts
Confirmation Items
When insert the jig, please insert it into the gap of the phosphor bronze terminal that can be seen
inside the ID unit side cover.
Treatment device(43291601PP)
