Oki C3400N Maintenance Manual

Oki Data CONFIDENTIAL
43163501TH Rev. 1 19 /

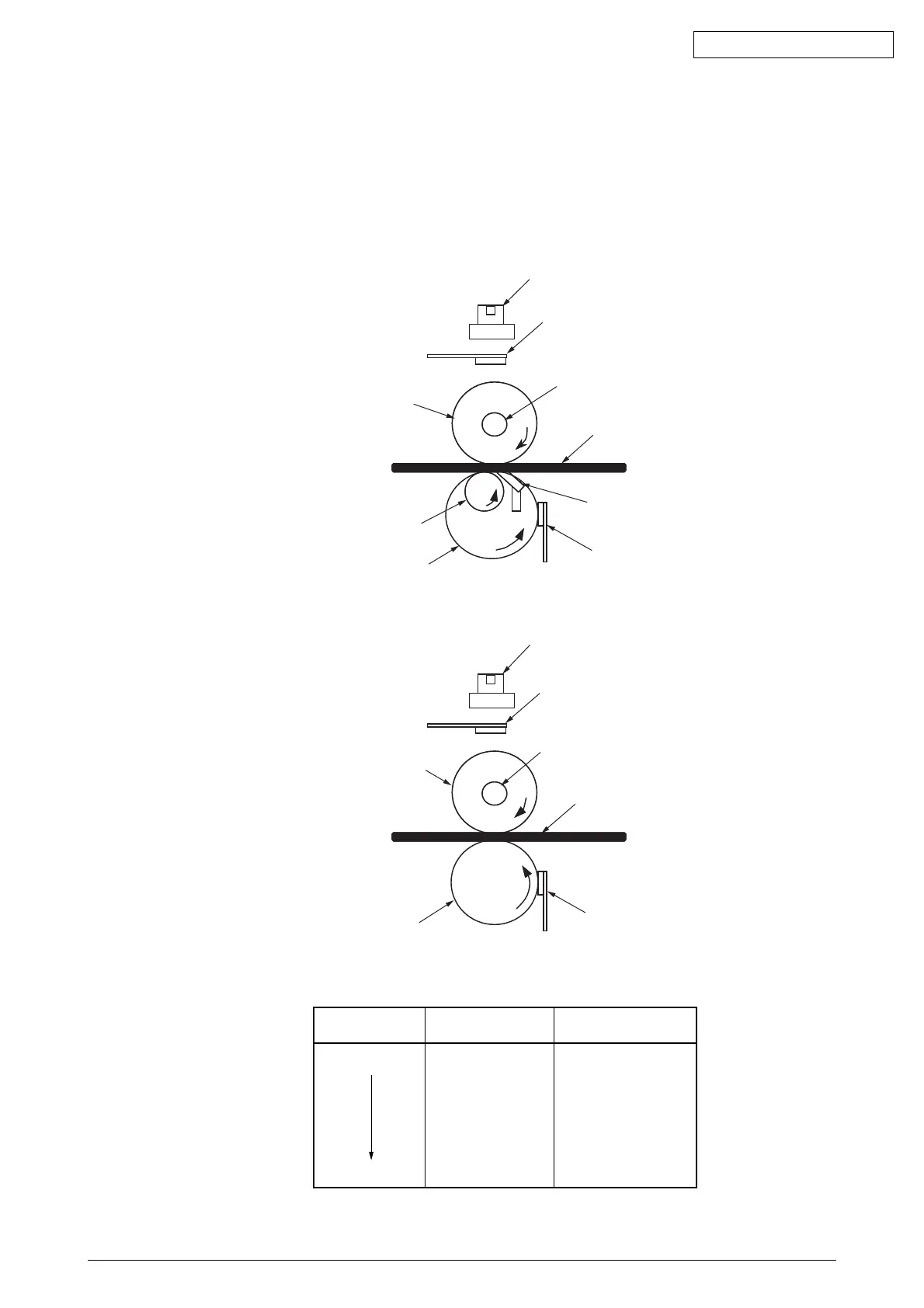

C3400 (belt fusing method)
Thermostat
Thermistor
Heat roller
Halogen lamp
Paper
Pad
Thermistor
Backup roller
Belt
Backup roller
Thermistor
Heat roller
Thermostat
Thermistor
Halogen lamp
Paper
C3300 (roller fusing method)
Paper Type Setting
Light
Medium
Heavy
U.Heavy
Paper Thickness
Thin
Thick
Temperature Setting
Middle temp.
High temp.
Middle temp.
Low temp.
Setting of Fusing Temperature
(6) Fusing
The toner image transferred on the paper is impressed with heat and pressure and is fused to
the paper when the paper passes through the heat roller and the back-up roller.
Further, a thermostat is equipped for the safety’s sake and if the temperature of the heat roller
rises above a certain degree, the thermostat opens and shuts the power supply to the heater.

Oki C3400N Specifications

Paper Handling

standard paper input capacity	250 sheets
multi-purpose tray capacity	single-sheet
manual duplex printing	yes

Performance

print speed color	16 ppm
print speed mono	20 ppm
time to first page color	13 sec.
time to first page mono	9 sec.
print resolution	1200 x 600 dpi
duty cycle	35, 000 pages/month

Paper Sizes and Weights

main tray paper size range	4.1" x 5.8" to 8.5" x 14"
multi-purpose tray paper size range	3" x 5" to 8.5" x 47.24"
main tray paper weight range	17 lb. to 32 lb. bond
manual feed paper weight range	20 lb. bond to 110 lb. bond

Memory

standard memory	32 MB
maximum memory	288 MB

Supplies

standard toner cartridge life color	1, 000 pages
standard toner cartridge life black	1, 500 pages
high-capacity toner cartridge life color	2, 000 pages
high-capacity toner cartridge life black	2, 500 pages
image drum life	15, 000 pages

Weight and Dimensions

width	14.8"
depth	18.9"
height	11.4"
weight	46.2 lb.
