Oki C3400N Maintenance Manual

Oki Data CONFIDENTIAL
43163501TH Rev. 1 24 /

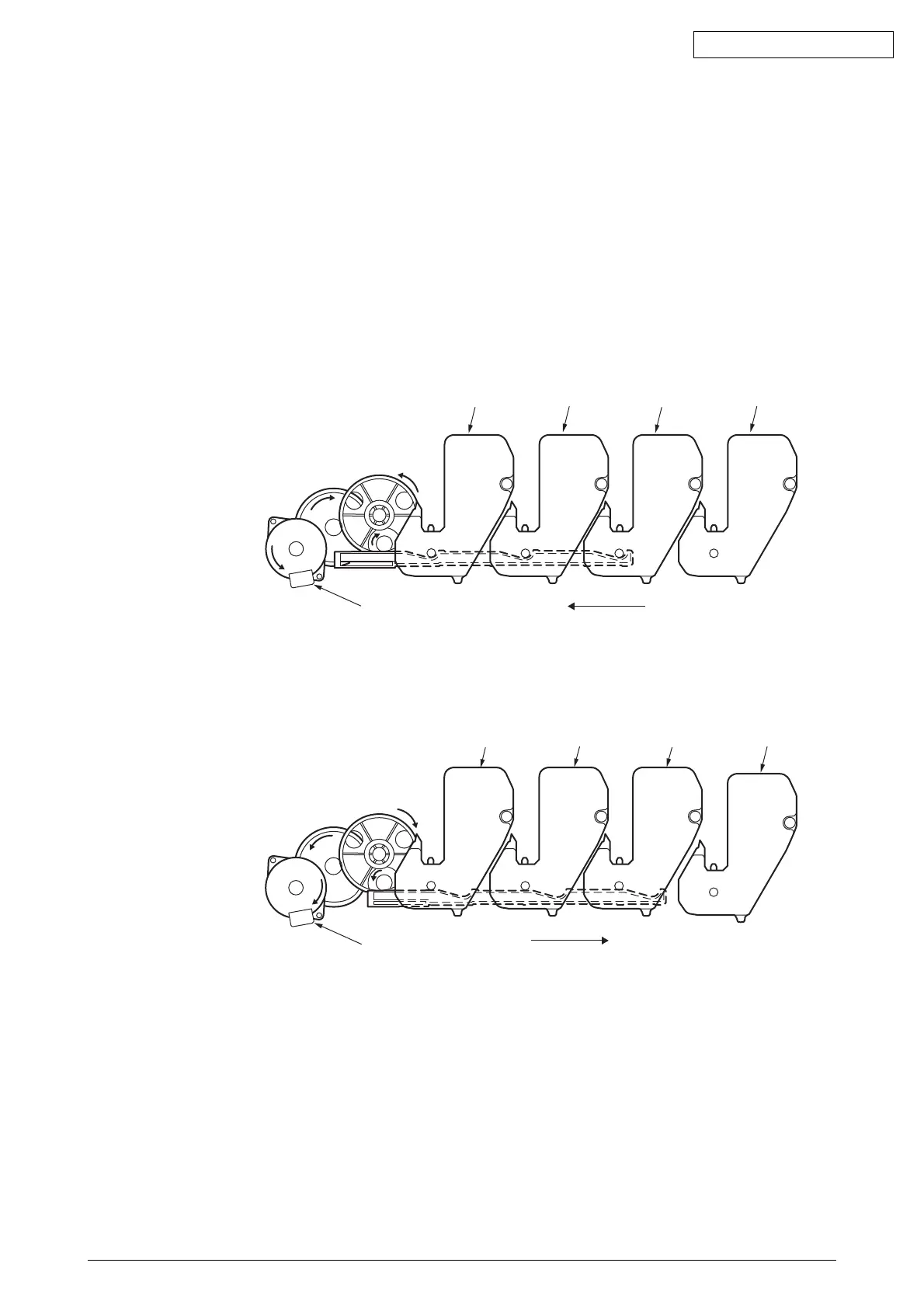

Movement of each ID unit at the time of color printing
C-ID unit
C-ID unit down
M-ID unit down
Y-ID unit down
K-ID unit down
M-ID unit
Y-ID unit K-ID unit
C-ID unit
M-ID unit
Y-ID unit K-ID unit
Lift-up motor
(counterclockwise turn)
Lift-up motor
(clockwise turn)
Movement of each ID unit at the time of monochrome printing
C-ID unit lift-up
M-ID unit lift-up
Y-ID unit lift-up
K-ID unit down
Figure 2-5
Figure 2-6
(4) Up and Down Movements of ID Units
1. The up and down movements of the ID units are performed by the drive of the lift-up motor.
2. Figure 2-5 shows movements of each ID unit at the time of printing. When the lift-up motor
turns clockwise, the lift-up link slides to the left and each ID unit is in the state of down as
shown in Figure 2-6. That condition enables color printing.
3. Figure 2-6 shows movements of each ID unit at the time of monochrome printing. When the
lift-up motor turns counterclockwise, the lift-up link slides to the right and the units other than
K-ID are in the state of up as shown in Figure 2-7. That condition enables monochrome
printing.

Oki C3400N Specifications

Paper Handling

standard paper input capacity	250 sheets
multi-purpose tray capacity	single-sheet
manual duplex printing	yes

Performance

print speed color	16 ppm
print speed mono	20 ppm
time to first page color	13 sec.
time to first page mono	9 sec.
print resolution	1200 x 600 dpi
duty cycle	35, 000 pages/month

Paper Sizes and Weights

main tray paper size range	4.1" x 5.8" to 8.5" x 14"
multi-purpose tray paper size range	3" x 5" to 8.5" x 47.24"
main tray paper weight range	17 lb. to 32 lb. bond
manual feed paper weight range	20 lb. bond to 110 lb. bond

Memory

standard memory	32 MB
maximum memory	288 MB

Supplies

standard toner cartridge life color	1, 000 pages
standard toner cartridge life black	1, 500 pages
high-capacity toner cartridge life color	2, 000 pages
high-capacity toner cartridge life black	2, 500 pages
image drum life	15, 000 pages

Weight and Dimensions

width	14.8"
depth	18.9"
height	11.4"
weight	46.2 lb.
