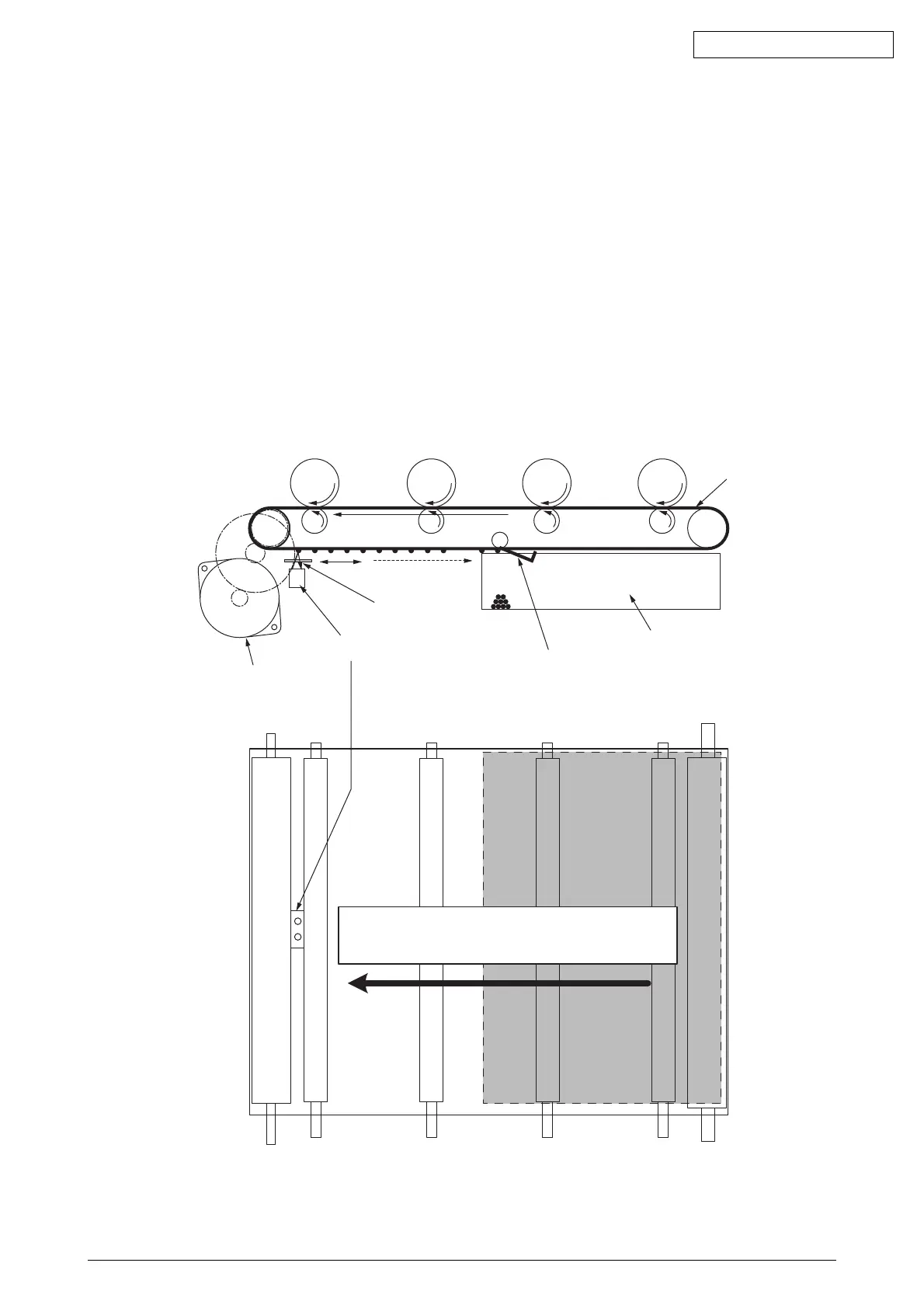

Density sensor
Density correction pattern
Belt waste toner box
Belt cleaning blade
Transport belt
Belt motor
Sensor shutter
Outline of Density Correction Method
Density correction is made by identifying the correction pattern printed on the belt using the sensor
installed in the sensor shutter under the belt unit.
Timing of automatic activation of density correction
• When the circumstance is significantly different from the previous work performance at the
time when the power is to be switched on.
• When at least one of the 4 ID count values is almost new at the time when the power is to
be switched on.
• When the ID count value is over 500 after the previous work performance.
Correction error can be caused by the amount of toner which generates the pattern, toner stain on
the sensor, malfunction of shutter opening and closing. However, as an error may not be displayed
on the operation panel, it may be necessary to confirm the error display by forcible execution of
the density correction test function (2. 4. 1. 5. 3) using the maintenance utility.
Error Confirmation Method and Countermeasure
