Service Guide ML395/395C
Chapter 3 Maintenance & Disassembly
3.2.36 Line Feed Motor

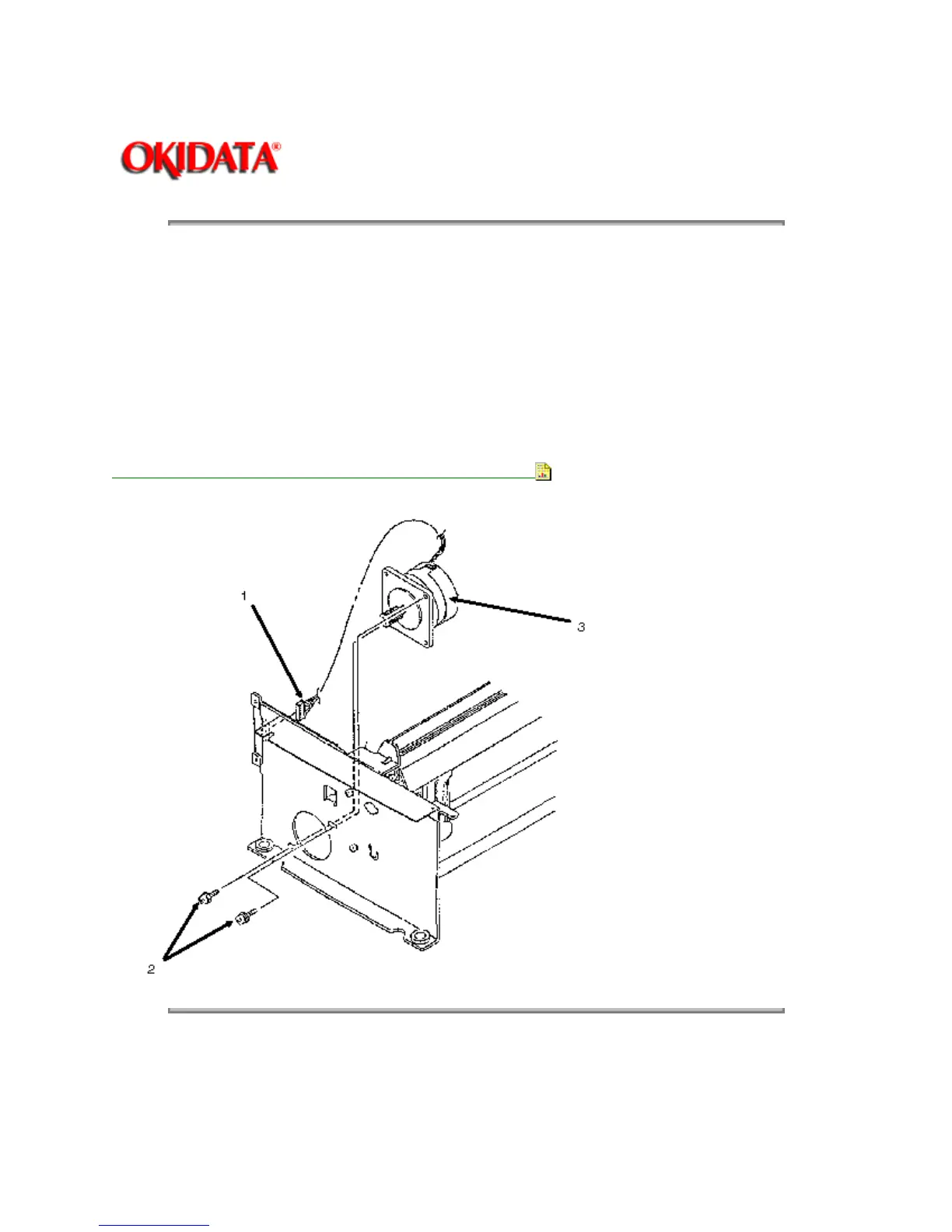

1. Remove the printer unit (3.2.30).
2. Remove the bottom push mechanism (3.2.34 - Steps 2,3,4,5).
3. Detach connector CN2 (1) from the BTFD board.
4. Remove the two mounting screws (2).
5. Detach the line feed motor (3).
P/N 56509401 Motor: Line Feed (BTF) Option RSPL B.2.15
