OKIDATA ML395C - Ribbon Protector

Page: 37
Service Guide ML395/395C
Chapter 3 Maintenance & Disassembly
3.2.03 Ribbon Protector
1.
Remove the printhead (3.2.01).
2.
Remove the ribbon guide (3.2.02).

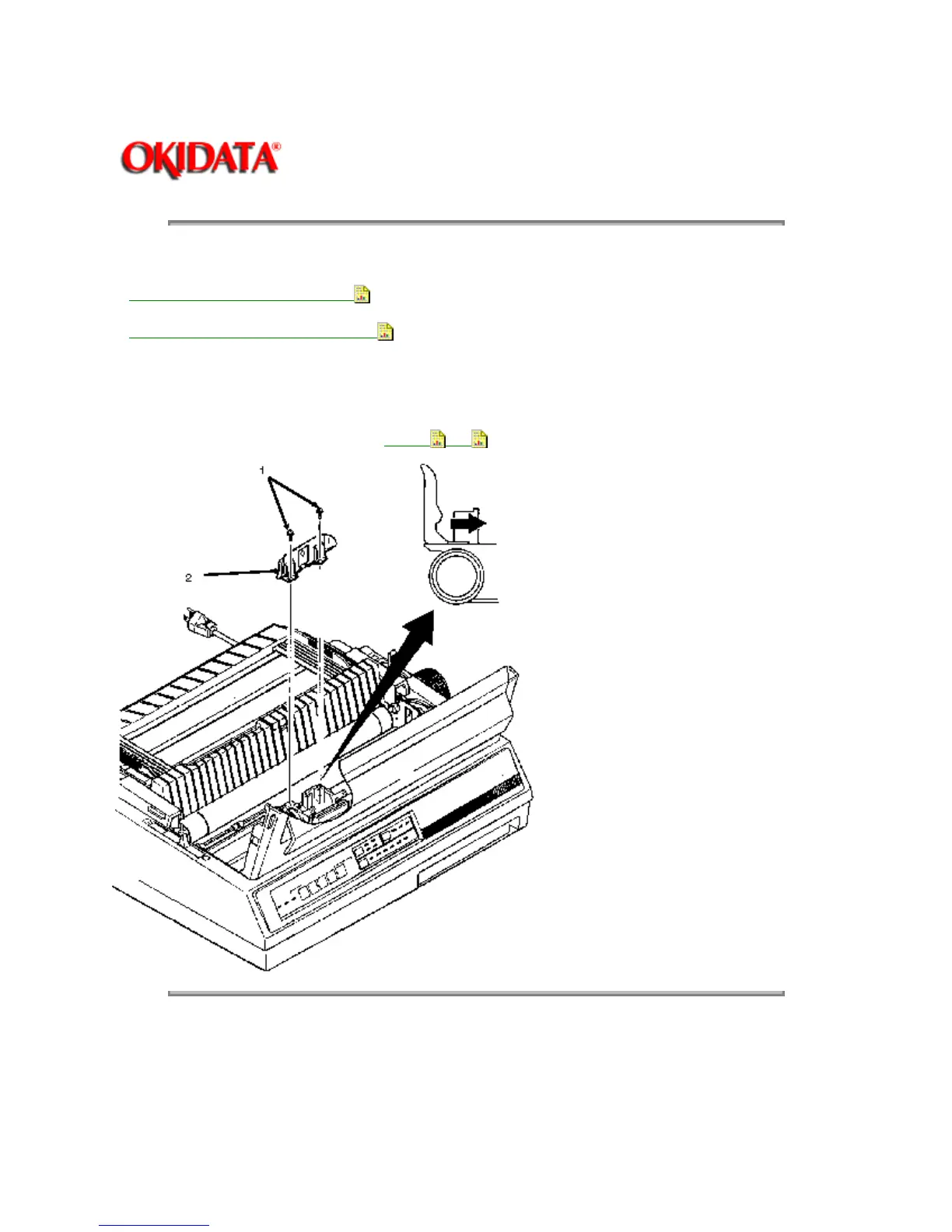

3. Remove the two mounting screws (1).
4. Lift the ribbon protector (2) and remove it.
P/N 53527001 Protector: Ribbon RSPL
B.2.04
, 05
