Page: 20
Service Guide ML395/395C
Chapter 2 Principles of Operation
2.1.07 Line Feed Circuit
The Line Feed Motor Shaft is held stationary by +8 vdc supplied according to the pulse duty cycle of the
LFCHOP signal (the holding current is approximately 30 ma) whenever in a stopped position.

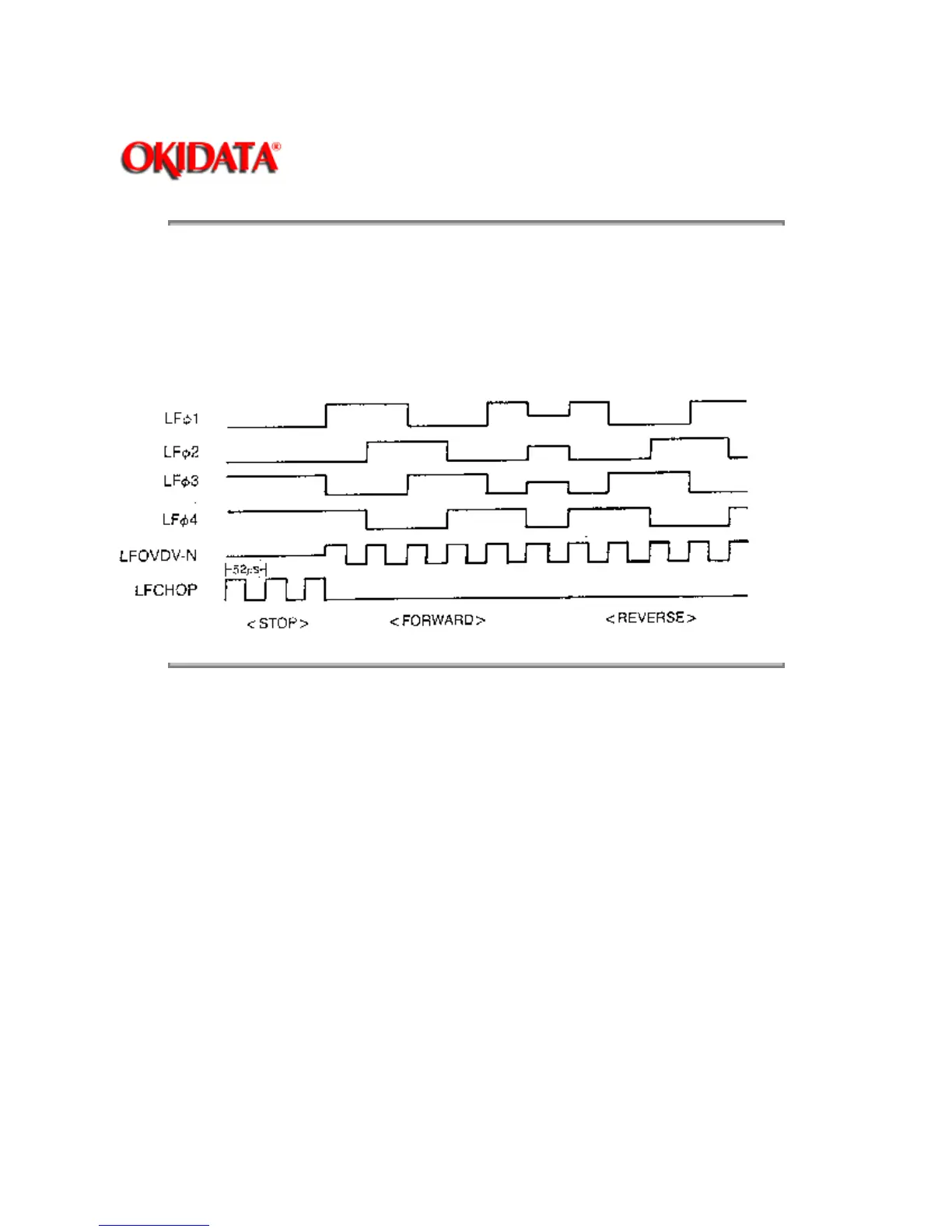

During line feed operation, the Line Feed Motor is driven by +38 vdc in accordance with the LFOVDV-N
signal. The signals LFf1 through LFf4 establish the proper phase relationship for driving the motor.
Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business
Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
