Page: 51
Service Guide ML395/395C
Chapter 3 Maintenance & Disassembly

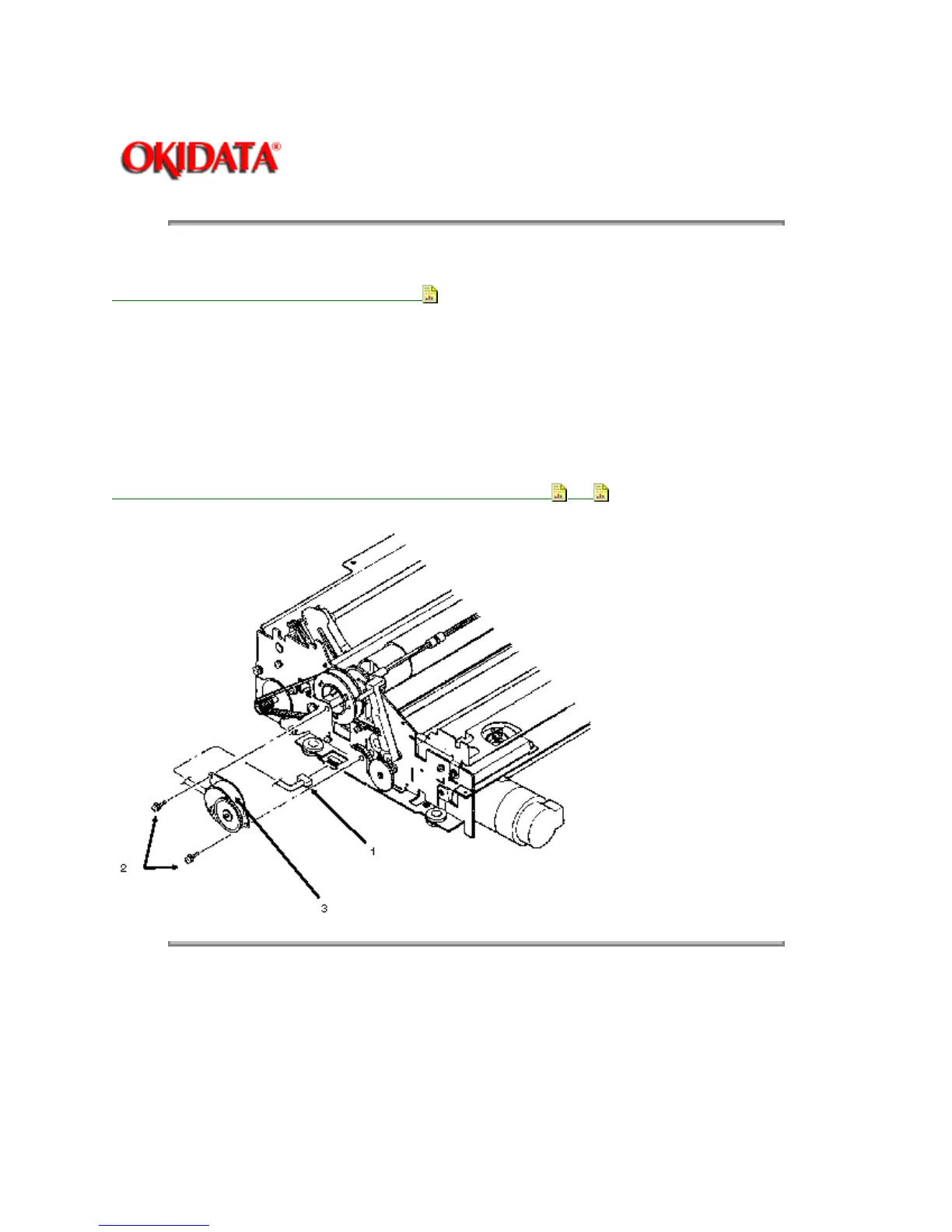

3.2.17 Bail/Ribbon Motor Assembly
1. Remove the printer mechanism (3.2.09).
2. Disconnect connector CN2 (1).
3. Remove the two mounting screws (2).
4. Detach the bail/ribbon motor assembly (3).
NOTE: When assembling, install the bail/ribbon motor assembly so that the gear teeth contact properly.
he gears must not bind together.
P/N 56506301 Motor: Step (Bail Arm) Assembly RSPL B.2.06 , 09
Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business
Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
