3.2.25 Roller Lever
1. Open the printer access cover.
2. Remove the ribbon cartridge.
3. Remove the shift arm spring (3.2.23).

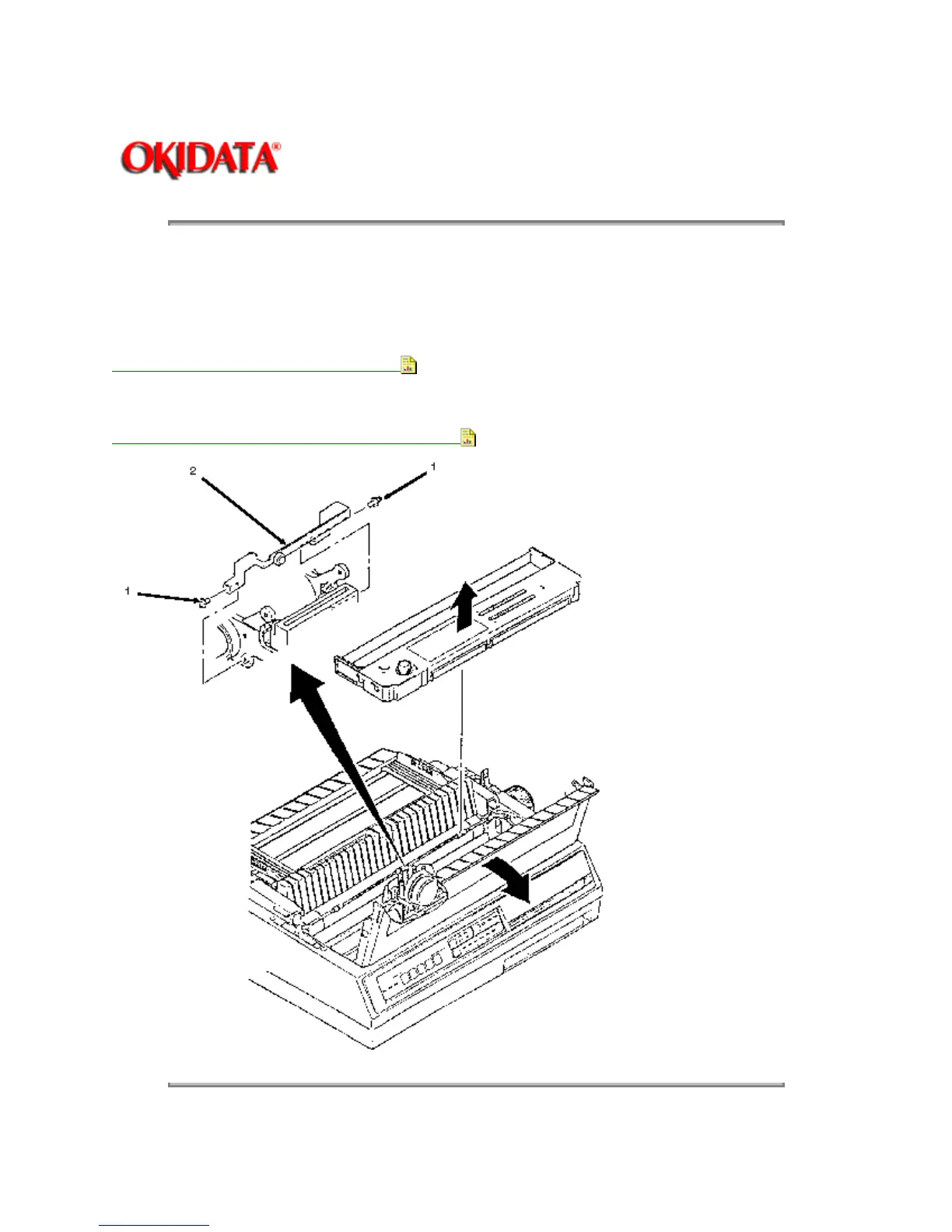

4. Remove the two 7 mm bolts (1) and detach the roller lever (2).
P/N 53479001 Lever: Roller (Color) RSPL B.2.05
