Rear Feed Paper-End

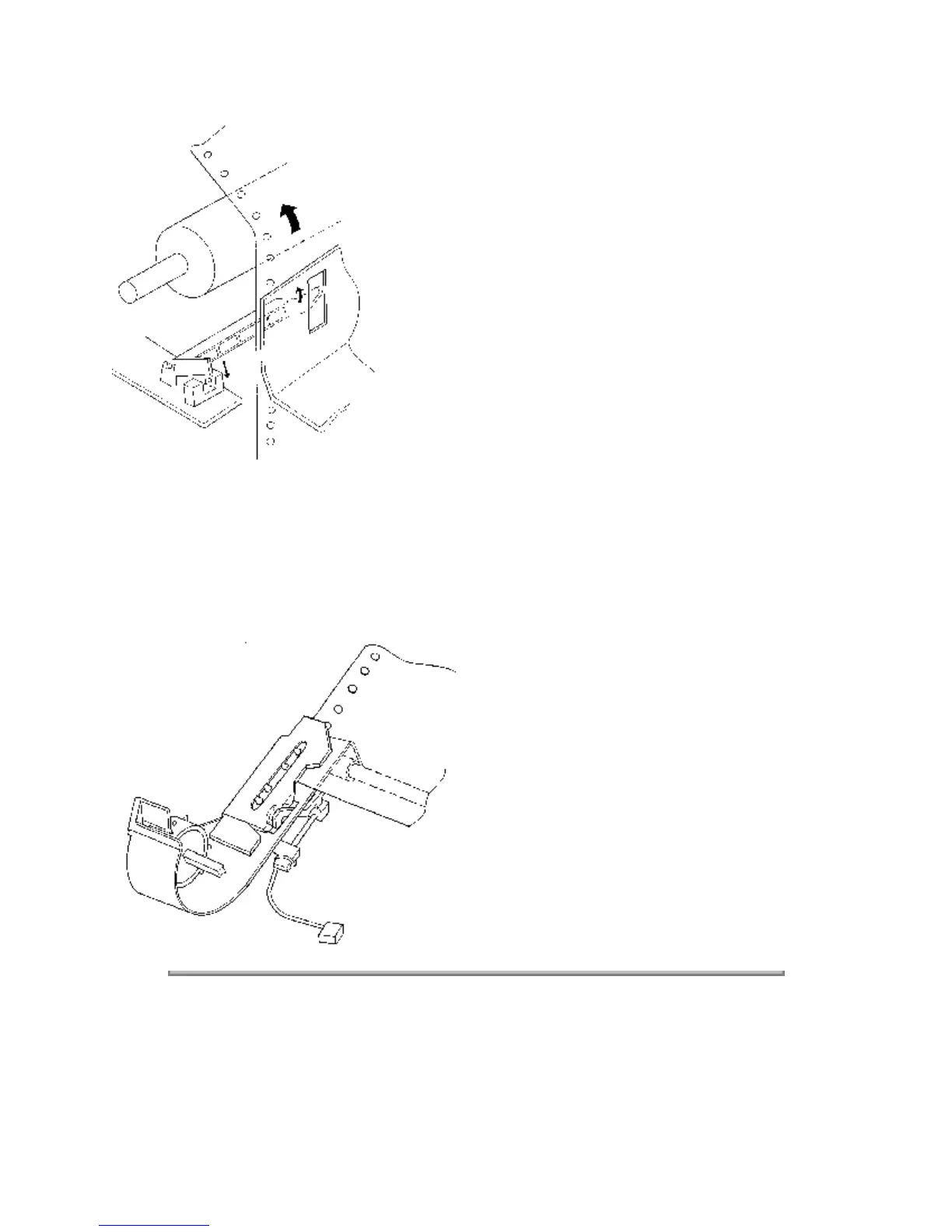

When the release lever is in the TRACTOR FEED position, the switch on the left push tractor and the
paper-end sensor on the sensor board are active. If paper is detected by either of these sensors,
paper-end is inhibited.
When rear feed paper is installed, pressure is placed on the microswitch, located in the left push tractor.
Since the switch is turned ON, paper is detected.
