Olimpia splendid ARYAL S2 E - Appliance Description; Instructions for Installation; Wall Installation

ARYAL S2 E DUAL / TRIAL
Trial
Dual
Trial
Dual
12
14
10
13
9
11
10
8
7
6
4
4
3
6
8
7
1
5
9
5
3
2
2
1
ENGLISH
EN - 7

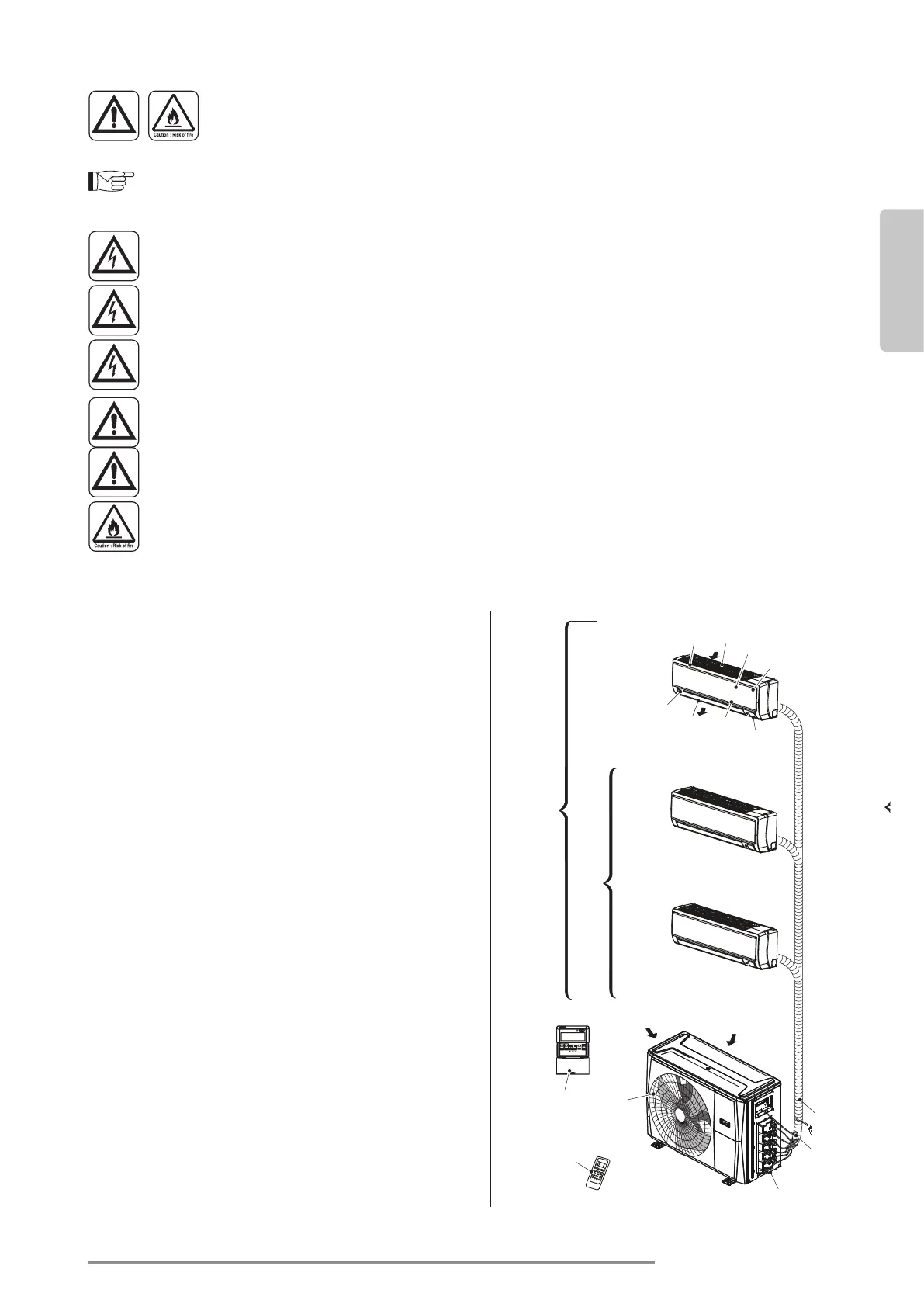

3 - APPLIANCE DESCRIPTION
3.1 - WALL INSTALLATION
Indoor unit
1. Frame
2. Rear air intake grille
3. Front panel
4. Air purifying lter & Air lter
(behind)
5. Horizontal louver
6. LCD display
7. Vertical louver
8. Manual control button (behind)
9. Remote control
Outdoor unit
10. Connection tube
11. Connection cables
12. Stop valve
13. Fan casing
14. Wall commands (optional)
2 - INSTRUCTIONS FOR INSTALLATION
The appliance must be installed, activated and kept in an environment with area exceeding
X m
2
(see tables in paragraph 3.5). The appliance must not be installed in a non-ventilated
area, whenever the surface is less than X m
2
(see tables in paragraph 3.5).
Failure to apply the regulations indicated, which can cause unit malfunctioning, relieve
OLIMPIA SPLENDID from any form of warranty and any damage/injury caused to persons,
animals or objects.
The electrical system must comply with the regulations and rating data in the technical sheet,
with good grounding.
Do not install, remove, or reinstall the unit by yourself (customer).
 Thereisriskofre,electricshock,explosion,orinjury.
For installation, always contact the dealer or an Authorized service centre.
 Thereisriskofre,electricshock,explosion,orinjury.
Be sure the installation area does not deteriorate with age. If the base collapses, the air con-
ditioner could fall with it, causing property damage, product failure, and personal injury.
Install the unit securely in a place which can bear the weight of the unit.
Donotinstalltheunitinaplacewhereaammablegasleaks.
- - - - - - - - - - - - - - - - - - - - - - - - - - -
