ENGLISH
EN - 26
e. Ensure the manual buttons on the indoor unit works properly.
f. Check to see that the drainage system is unimpeded and draining smoothly.
g. Ensure there is no vibration or abnormal noise during operation.
5. For the Outdoor Unit
a. Check to see if the refrigeration system is leaking.
b. Make sure there is no vibration or abnormal noise during operation.
c. Ensure the wind, noise, and water generated by the unit do not disturb your neighbors or pose a safety
hazard.
 Iftheunitdoesnotworkproperlyordoesnotworkaccordingtoyourexpectations,pleaserefer
to the "Troubleshooting" section of this manual before consulting the customer service.

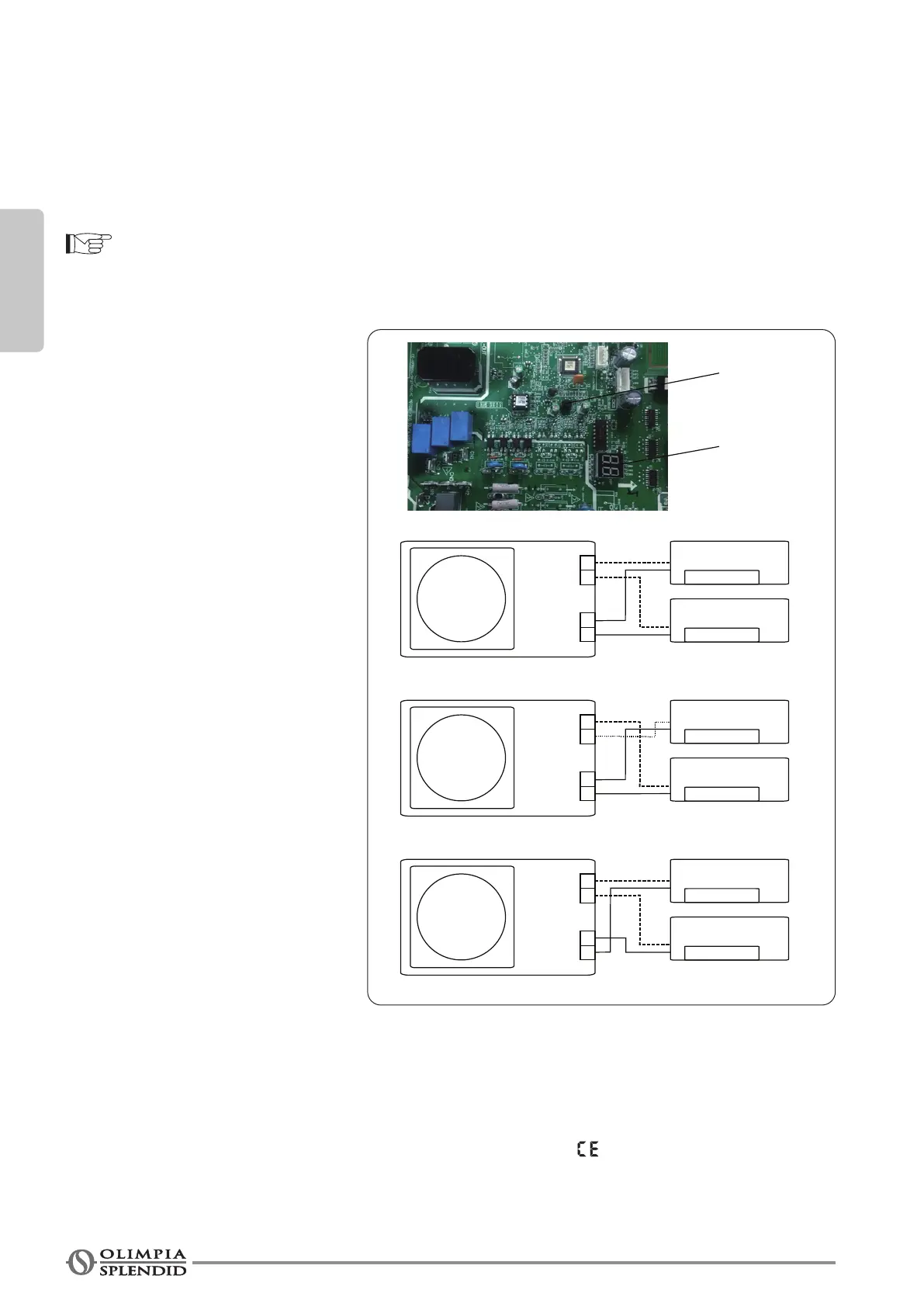

10 - FUNCTION OF AUTOMATIC WIRING/PIPING CORRECTION
More recent models now feature
automatic correction of wiring/piping
errors. Press the "check switch" on
the outdoor unit PCB board for 5
seconds until the LED displays "CE”,
indicating that this function is work-
ing, Approximately 5-10 minutes
after the switch is pressed, the "CE"
disappears, meaning that the wiring/
piping error is corrected and all
wiring/piping is properly connected.
Automatic Wiring/Piping Correction Function
Function of Automatic Wiring/Piping Correction
Function of
Automatic Wiring/
Piping Correction
More recent models now feature automatic correction of wiring/piping errors. Press the "check
switch" on the outdoor unit PCB board for 5 seconds until the LED displays "CE”, indicatomg that
this function is working, Approximately 5-10 minutes after the switch is pressed, the "CE" disappears,
meaning that the wiring/piping error is corrected and all wiring/piping is properly connected.
How To Activate This Function
1. Check that outside temperature is above 5℃.
(This function does not work when outside temperature is not above 5℃)
2. Check that the stop valves of the liquid pipe and gas pipe are open.
3. Turn on the breaker and wait at least 2 minutes.
4. Press the check switch on the outdoor PCB board unit LED display "C E".
Correct
Terminal
block
Liquid/
Gas pipe
Outdoor unit
Indoor unit B
Indoor unit A
B
A
B
A
Incorrect wiring
Terminal
block
Liquid/
Gas pipe
Outdoor unit
Indoor unit B
Indoor unit A
B
A
B
A
Incorrect wiring
Terminal
block
Liquid/
Gas pipe
Outdoor unit
Indoor unit B
Indoor unit A
B
A
B
A
Check switch
LED display

Page 42

To activate this function:
1. Check that outside temperature is above 5°C. (This function does not work when outside temperature is not
above 5°C).
2. Check that the stop valves of the liquid pipe and gas pipe are open.
3. Turn on the breaker and wait at least 2 minutes.
4. Press the check switch on the outdoor PCB board unit LED display " ".
