ARYAL S2 E DUAL / TRIAL
L N
MC MC
(L1) (L2)
ENGLISH
EN - 13

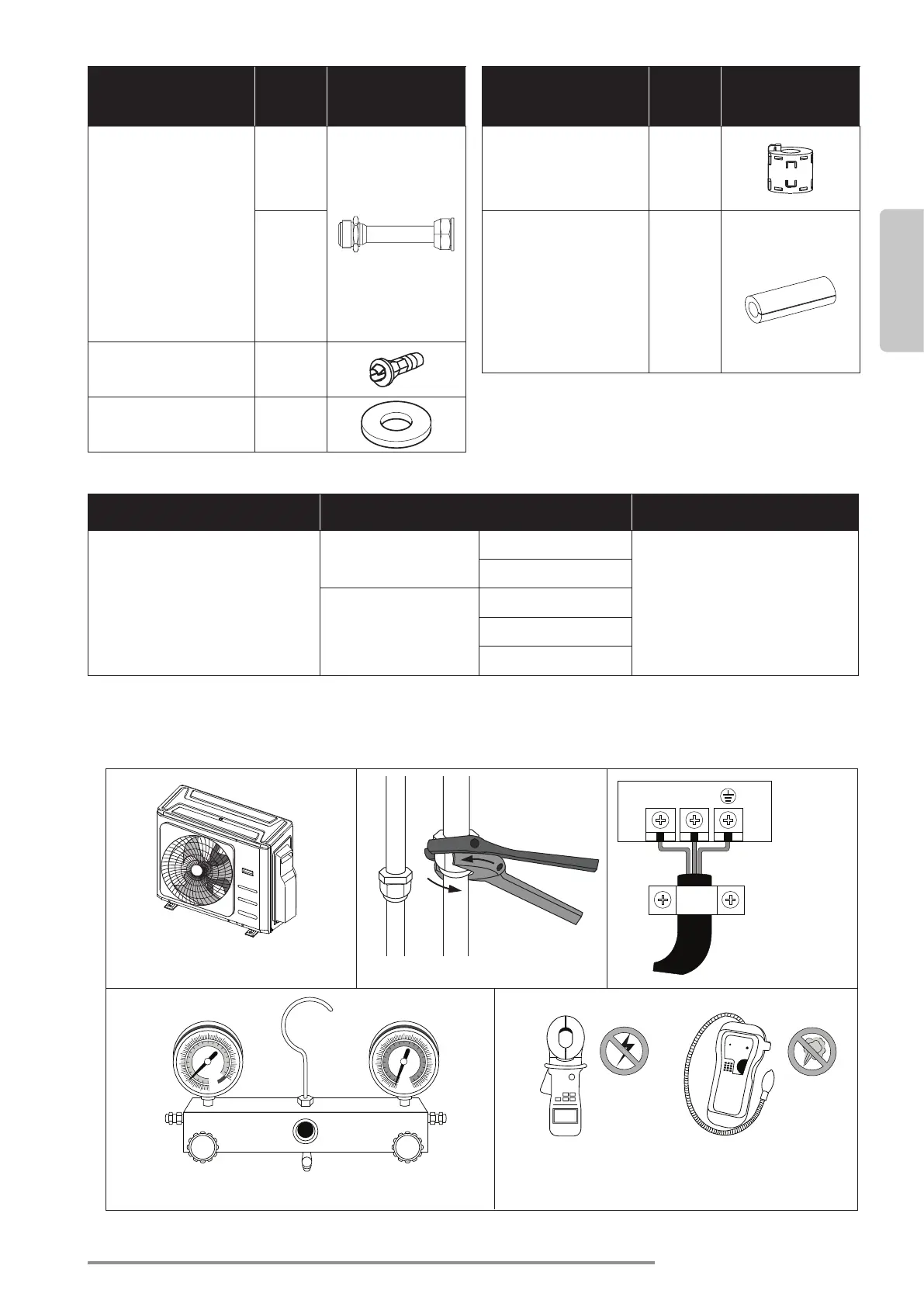

Name of
Accessories
Q‘ty
(pc)
Shape
Transfer connector
(packed with the indoor or
outdoor unit, depending on
models)
NOTE: Pipe size may differ
from appliance to appliance.
To meet different pipe size
requirements, sometimes
the pipe connections need
a transfer connector installed
on the outdoor unit.
Optional
part (one
piece/ one
indoor
unit)
Optional
part (1-5
pieces for
outdoor
unit,
depending
on mod-
els)
Drain joint (some models) 1
Seal ring (some models) 1
Name of
Accessories
Q‘ty
(pc)
Shape
Magnetic ring (Hitch it on the
connective cable between
indoor unit and outdoor unit
after installation.)
(some models)
Varies
by model
Cord protection rubber
ring
(If the cord clamp cannot fas-
ten on a small cord, use the
cord protection rubber ring
[supplied with accessories]
to wrap around the cord.
Then x it in place with the
cord clamp.)
(some models)
1
• Install the outdoor unit • Connect the refrigerant pipes •
Connect the wires
• Evacuate the refrigeration system • Perform a test run
OPTIONAL
Name Forma Quantità (PC)
Connecting pipe assembly.
Liquid side
Ø6.35 (1/4 in)
Parts you must purchase separate.
Ø9,52 (3/8 in)
Gas side
Ø9,52 (3/8 in)
Ø12.7 (1/2 in)
Ø 16 (5/8 in)
7 - INSTALLATION
7.1 - PROCEDURES FOR INSTALLATION
