AS interlocking
When the brightfield observation or the option mirror unit are selected as the observation light path, pressing the objective
selection button on the front panel will change the AS diameter to the setting value when the objective is selected. If the
AS switch diameter is set while the main switch
is set to (OFF), the AS diameter is changed to the setting value per each
objective when the power is turned.

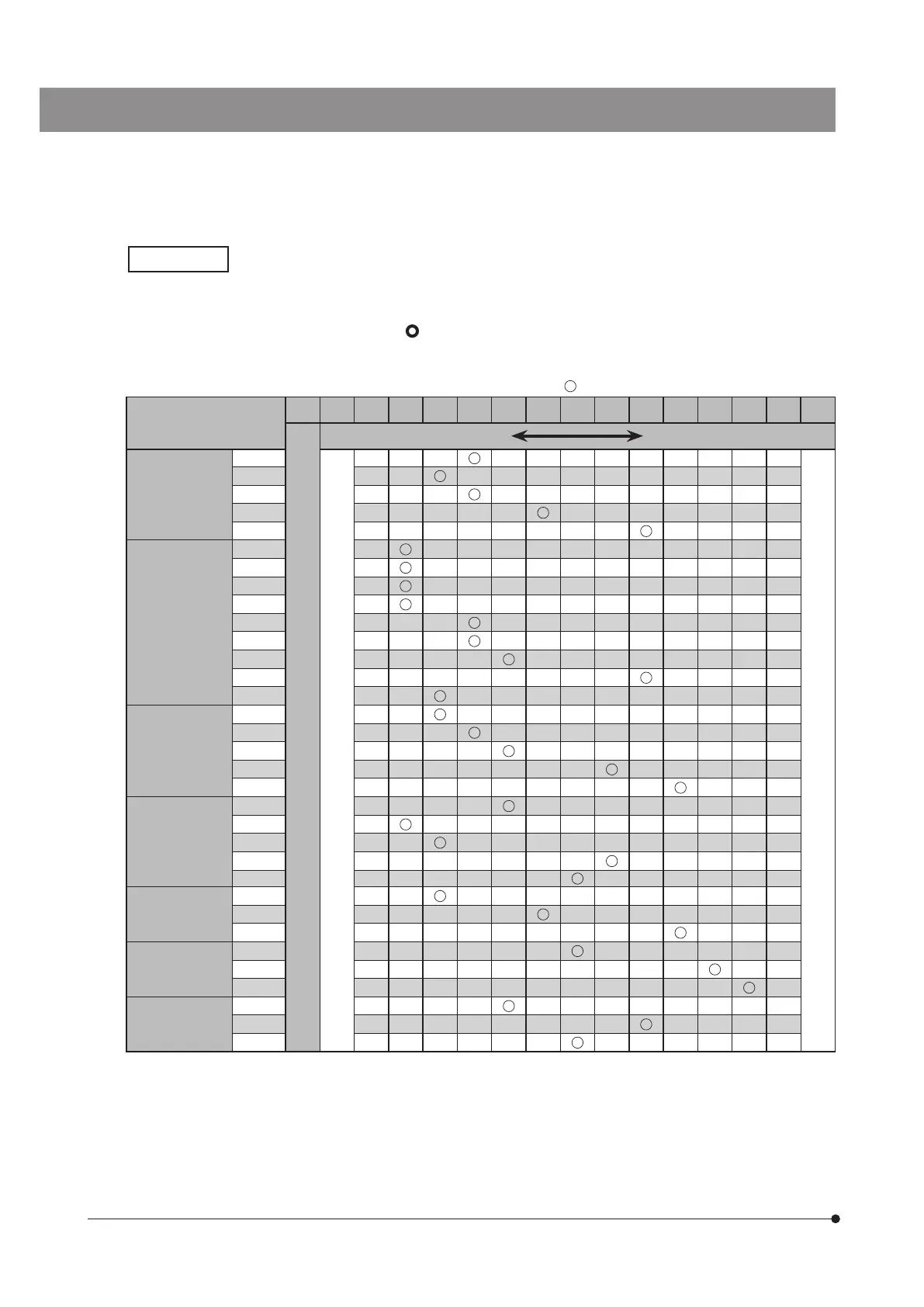

Table 1 Recommended AS PRESET values (
mark position)
0 1 2 3 4 5 6 7 8 9 A B C D E F
AS: not interlocked
Open AS Close AS
MPLN/
MPLN-BD
Series
5X
AS: maximum
AS: minimum
10X
20X
50X
100X
MPLFLN/
MPLFLN-BD/
MPLFLN-BDP
Series
1.25X
2.5X
5X
10X
20X
40X
50X
100X
150X
LMPLFLN/
LMPLFLN-BD
Series
5X
10X
20X
50X
100X
LMPLN-IR/
LCPLN-IR
Series
5X
10X
20X
50X
100X
LCPLFLN-LCD
Series
20X
50X
100X
SLMPLN
Series
20X
50X
100X
MPLAPON
Series
50X
100X
100XO2
· Setting the AS value to "0" allows you to lock the AS interlocking in association with the objective selection.
· All AS values are set to "0" as factory default.
· The recommended AS. PRESET values are set between 70% and 80% of the aperture diaphragm image. For
procedures to check the aperture diaphragm image, see “Centering of the aperture diaphragm of reflected light
illumination" (P.103).
· For fluorescence observation, set the value to 1.
