Olympus MX63 - Page 17

11
MX63/MX63L
11

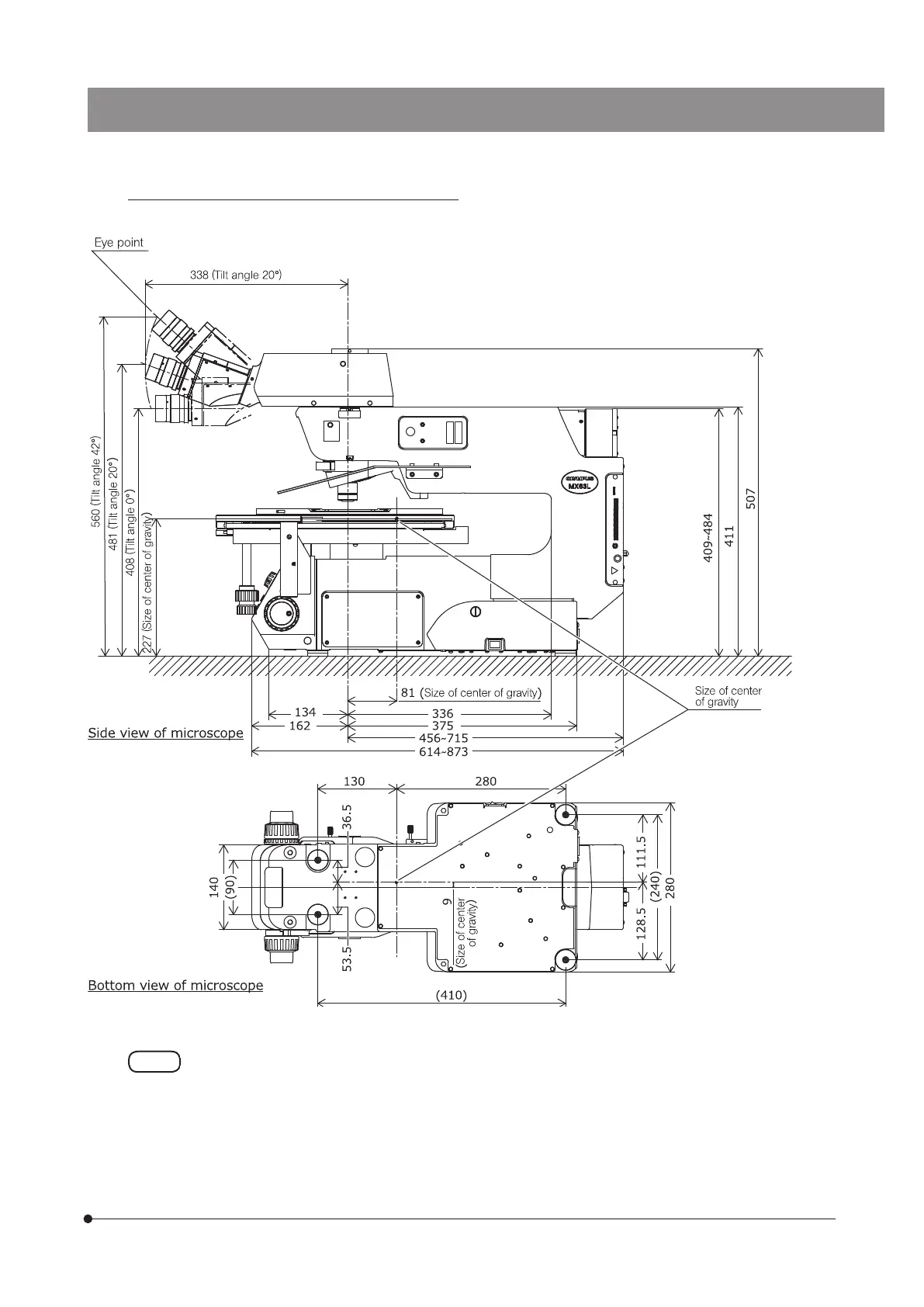

MX63L appearance, eye-point and center of gravity
Unit: mm
The center of gravity is an approximate position in the standard combination for transmitted light observation.
Note that the position varies depending on the sample weight, stage position and other units to be
combined.
TIP
