Connector Pin Assignment

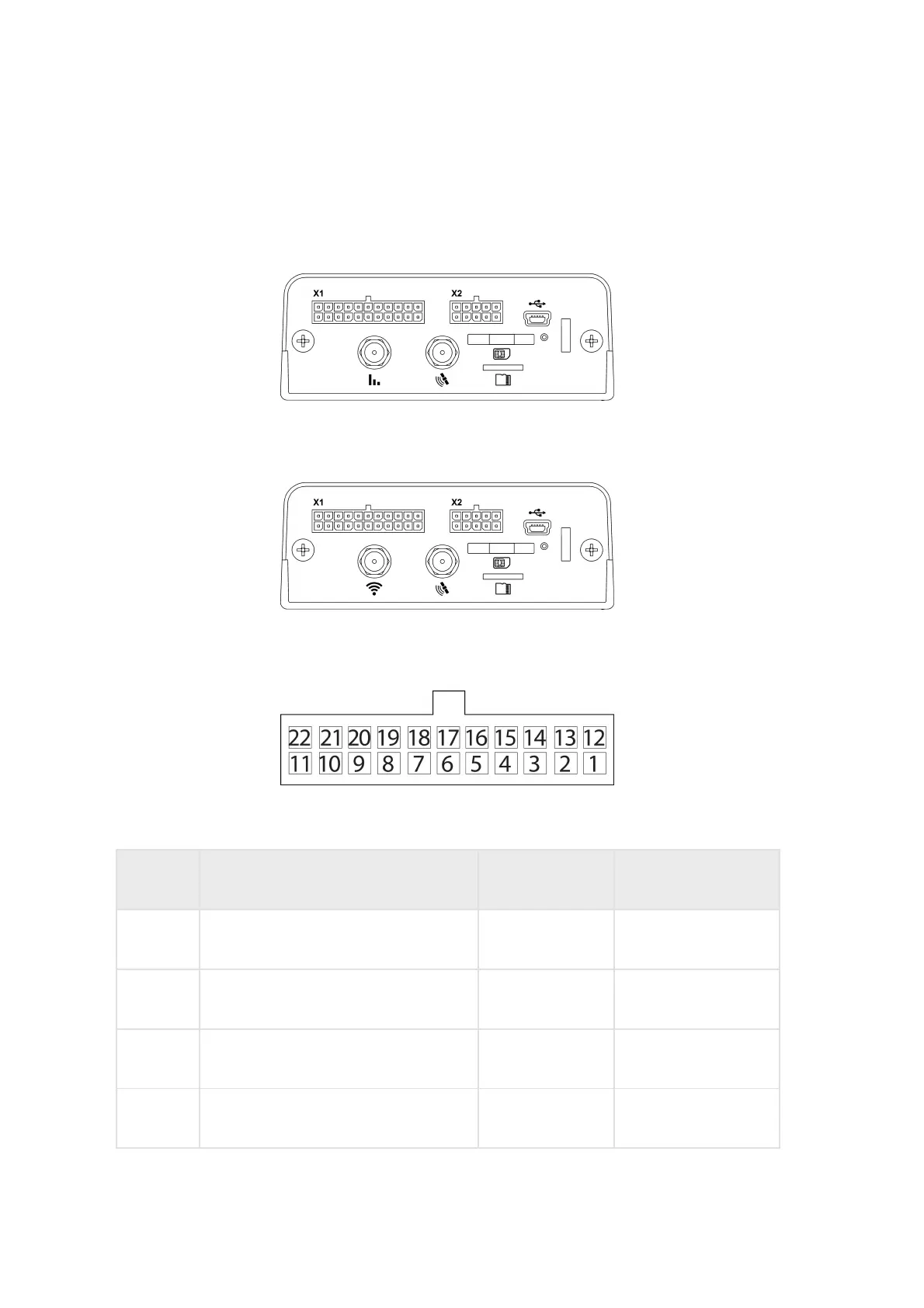

Omnicomm Profi terminals:
Omnicomm Profi Wi-Fi terminals:
Connector Х1:
No. of pin Signal name Designation Wire colour in cable
1 Ground (negative) for power supply Ground (signal) White
2 Ground (negative) for power supply Ground (power) White
3 Panic button Panic button White-red
4 Universal input 2 Input 2 Black-white
