Omron CK3M Series User Manual

DIN Track
(1)
(2)

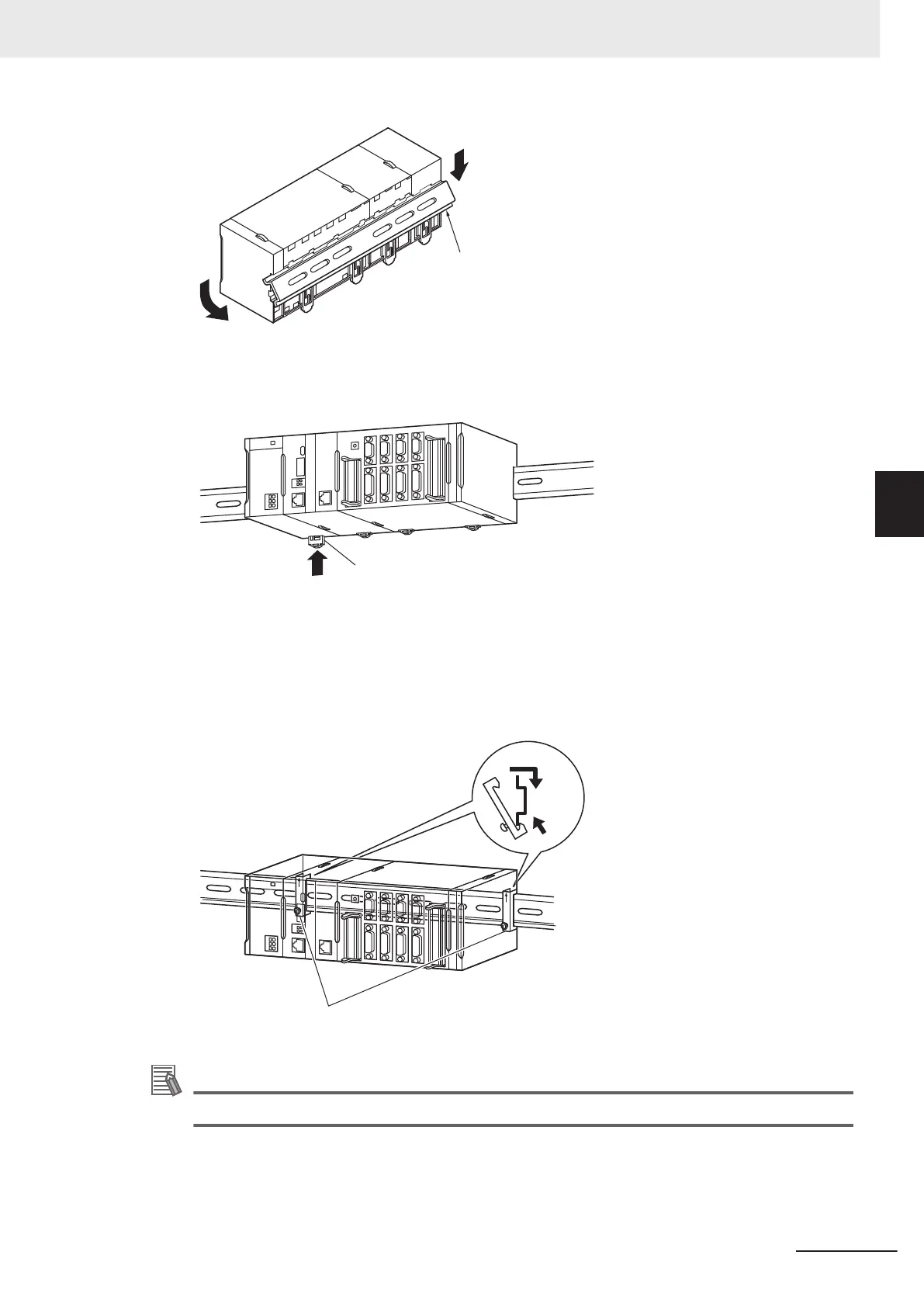

3 Lock all the DIN Track mounting pins.
DIN Track
mounting pins
4 Install a DIN Track End Plate on each end of the Controller.
T
o mount an End Plate, hook from the underside (1), hook to the upper side, and then pull
downward (2).
Then tighten the screw to lock the End Plate in place.
End plate
(1
)
(2)
Additional Information
To remove Units, perform the steps above in reverse order.
4 Installation
4-11
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
4-3 Mounting Units
4
4-3-3 Mounting to DIN Track
