Omron CK3M Series User Manual

CK3W-AX1313£/-AX2323£
(E)
IN
0 1 2 3 4 5 6 7
8 9 10 11 12 13 14 15
0 1 2 3 4 5 6 7
8 9 10 11 12 13 14 15
OUT
(A)
(K)
(J)
(I) (H)
(B) (C) (D)
(G)
(F)

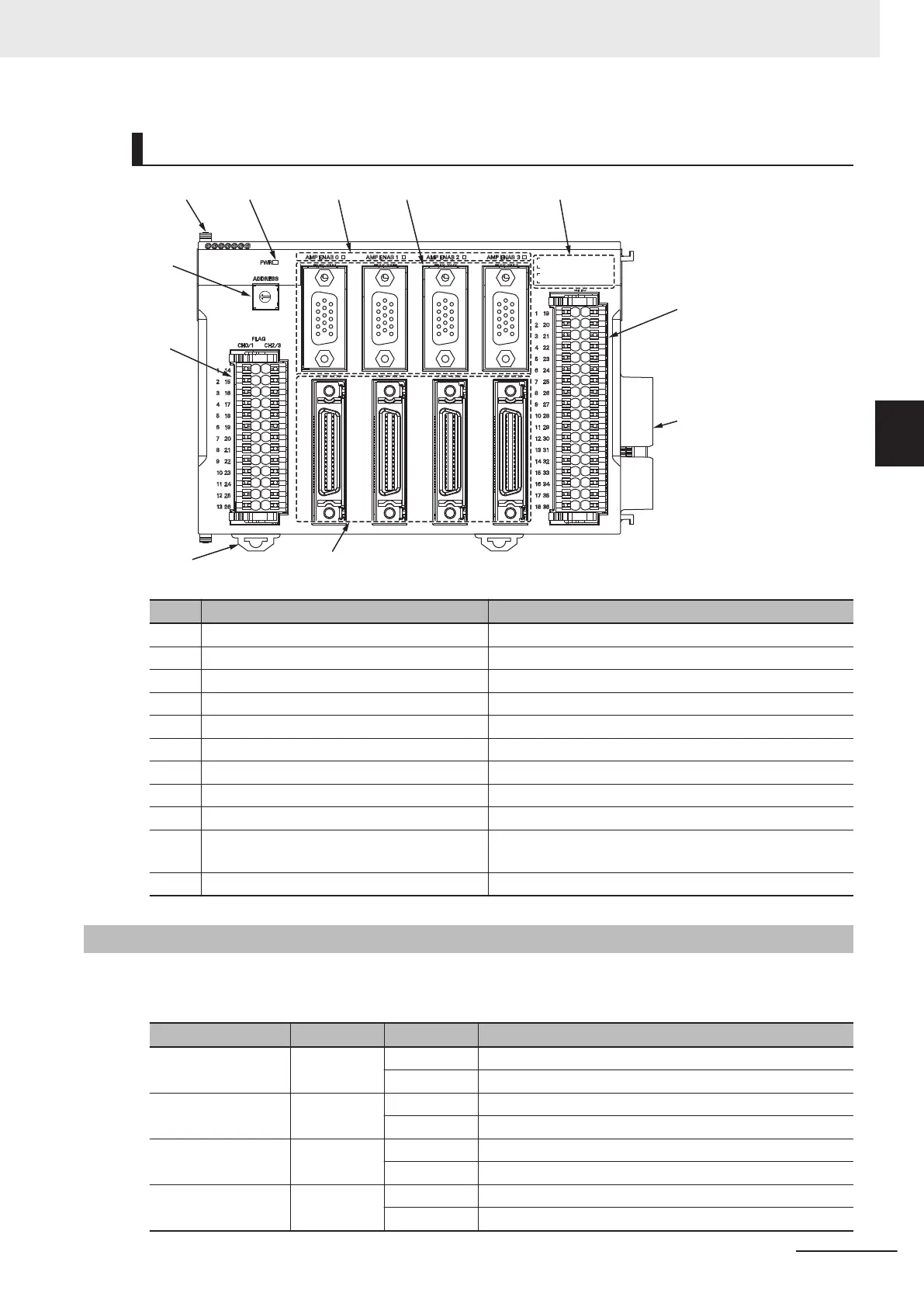

Letter Name Function
A Slider Holds the Units together.
B Power supply status indicator Shows the power supply status.
C Amp enable status indicator Shows the Amp enable status.
D Encoder connector Connects the encoder.
E General digital input/output status indicator Shows the general digital input/output status.
F General digital I/O connection terminal block Connects the general digital input/output.
G Unit connector Connector that connects to the Unit.
H Amplifier connector Connects the amplifier.
I DIN Track mounting hook Used to mount the Unit to a DIN Track.
J Flag connection terminal block Connects the HOME/PLIM/NLIM/USER inputs and EQU
output.
K Address switch Sets the Gate3 Index.
3-3-3
Operation Status Indicators
The LED indicators show the unit operating status of the Axis Interface Unit.
The operating statuses corresponding to the colors and statuses of the indicators are shown below
.
Indicator name Color Status Description
PWR Green Lit. Power is supplied.
Not lit. Power is not being supplied.
AMP ENAB0 to 3 Yellow Lit. Command values output to Servo Drive.
Not lit. Command values not output to Servo Drive.
IN 0 to 15 Yellow Lit. The input contact is ON.
Not lit. The input contact is OFF.
OUT 0 to 15 Yellow Lit. The output contact is ON.
Not lit. The output contact is OFF.
3 Configuration Units
3-15
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
3-3 Axis Interface Unit
3
3-3-3 Operation Status Indicators
