4-3-2

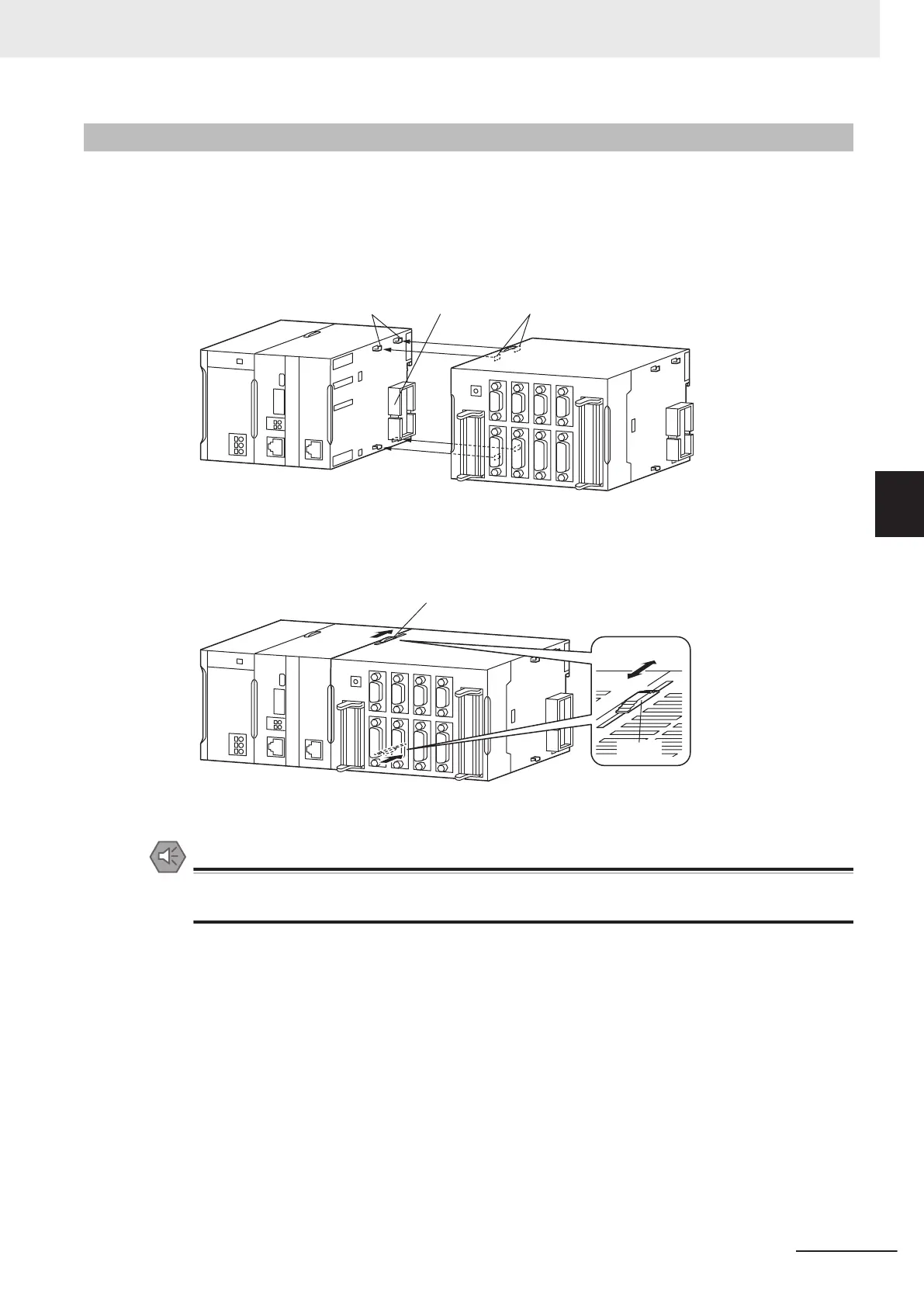

Connecting Adjacent Units
The Units that make up a CK3M-series Controller can be connected simply by pressing the Units to-
gether and locking the sliders by moving them toward the back of the Units. The End Cover is con-
nected in the same way to the Unit on the far right side of the Controller
.
1 Join the Units so that the connectors fit exactly.
2 The yellow sliders at the top and bottom of each Unit lock the Units together. Move the sliders
toward the back of the Units as shown below until they click into place.
Move the sliders toward the back
until they lock into place.
Release
Slider
Lock
Precautions for Safe Use
The sliders on the top and bottom of the CK3W Unit must be completely locked (until they click
into place) after connecting the adjacent Unit connectors.
3 Attach the End Cover to the Unit on the far right side of the Rack.
4 Installation
4-9
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
4-3 Mounting Units
4
4-3-2 Connecting Adjacent Units
To Next Page
