3 Remove the flat-blade screwdriver from the release hole.
After you make a connection, make sure that the twisted wire or the solid wire is securely connected to
the terminal block.
Precautions for Safe Use
• Make sure that all wiring is correct.
•
Do not bend the cable forcibly. Doing so may break the cable.
5-1-8

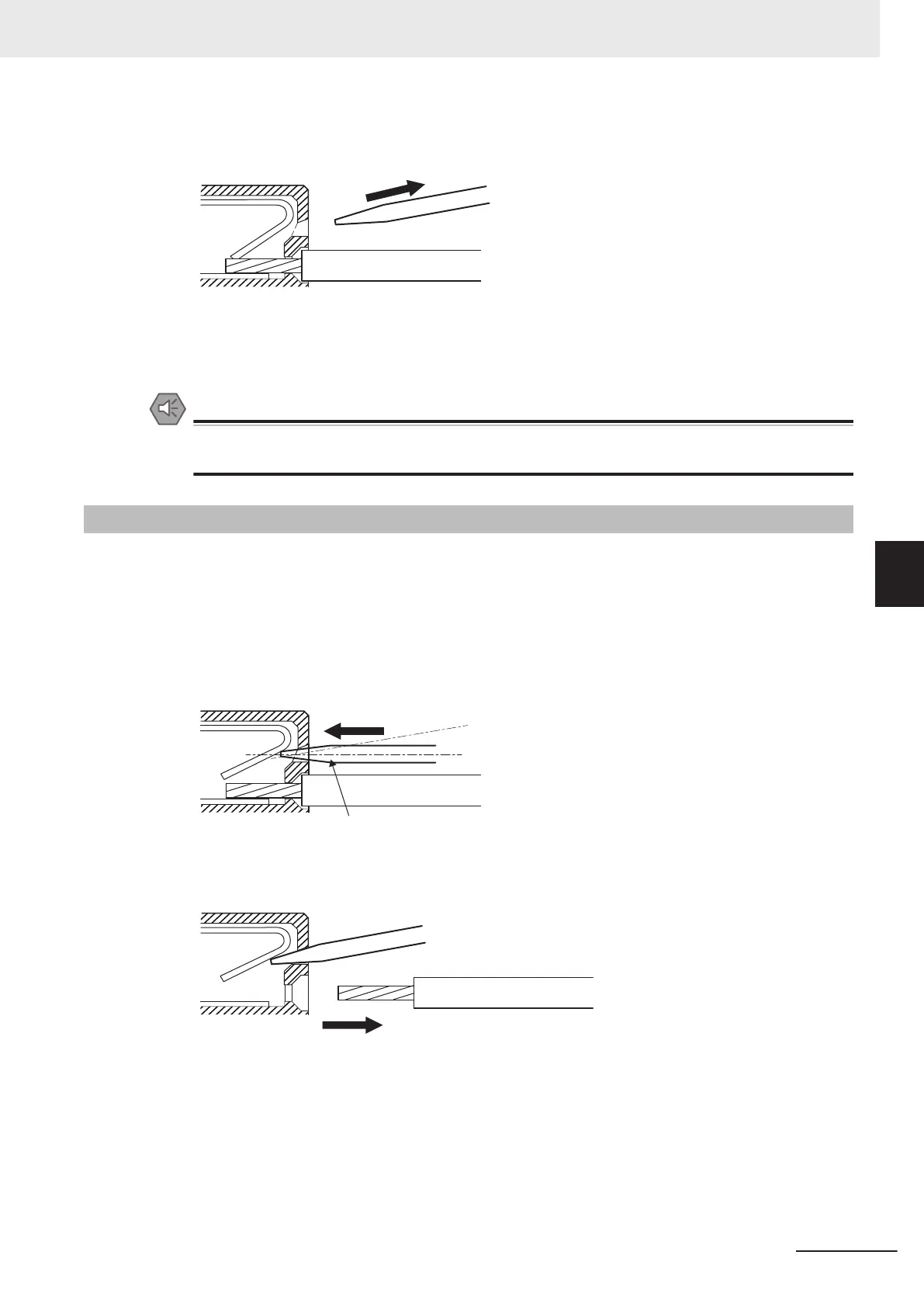

Removing Wires
Use the following procedure to remove the wires from the terminal block.
The removal method is the same for ferrules, twisted wires, and solid wires.
1 Press a flat-blade screwdriver straight into the release hole.
If you press in the screwdriver correctly
, you will feel the spring in the release hole, and the
screw driver will begin to incline.
1
Wire
Flat-blade screwdriver
2 Leave the flat-blade screwdriver pressed into the release hole and pull out the wire.
3 Remove the flat-blade screwdriver from the release hole.
5 Wiring
5-5
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
5-1 Power Supply Wiring
5
5-1-8 Removing Wires
