Omron CK3M Series User Manual

Precautions for Safe Use
Always turn OFF the power supply to the Controller before attempting any of the following.
•
Mounting or removing CK3W-AX Units or CPU Units.
• Assembling the Units.
• Setting rotary switches.
• Connecting cables or wiring the system.
• Connecting or disconnecting the connectors.
4-3-4

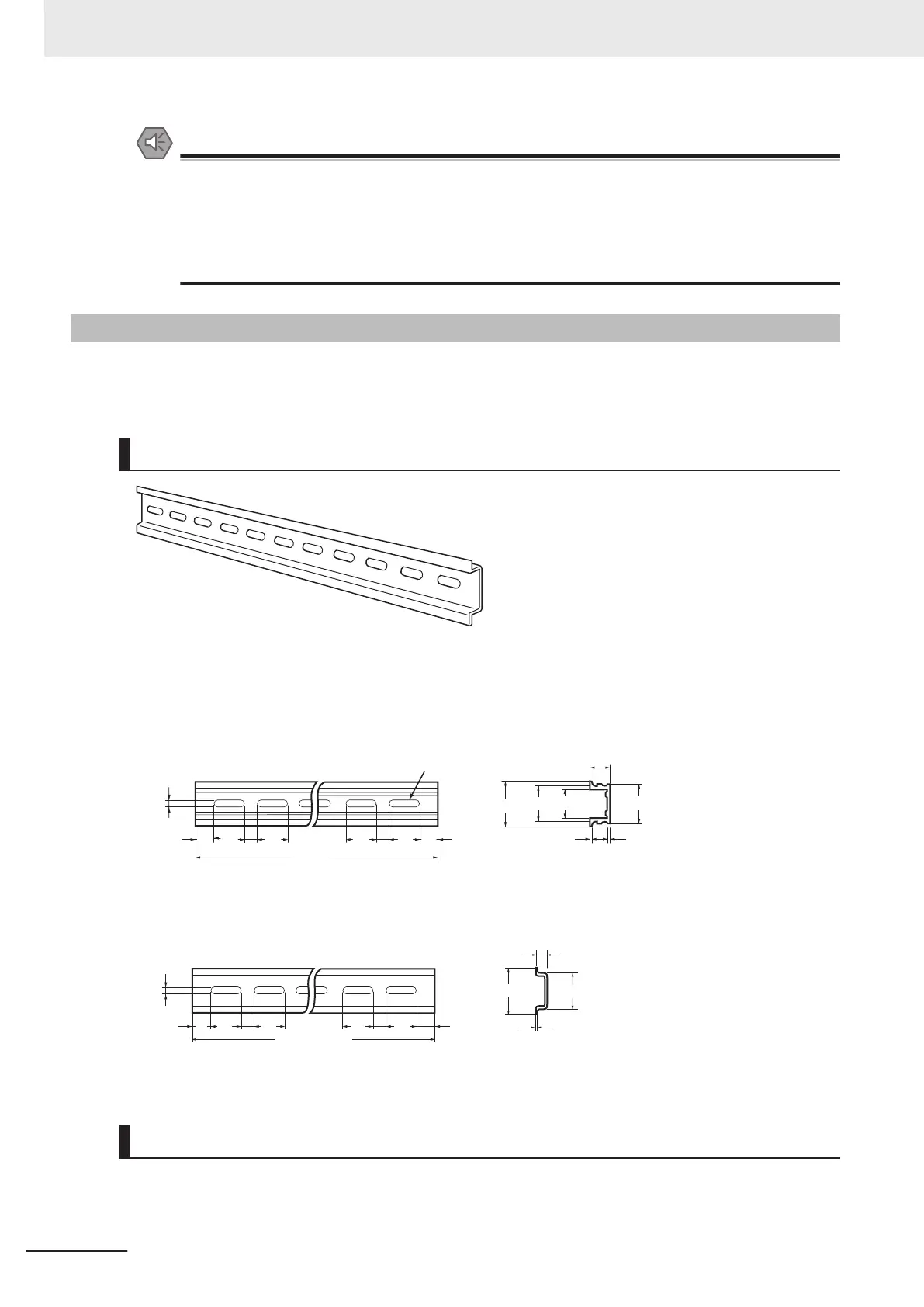

DIN Track and Accessories
Mount the CK3M-series Controller on the DIN Track.
Secure each DIN T
rack inside a control panel with at least three screws.
DIN Tracks
Secure the DIN Track to the control panel using M4 screws separated by 210 mm (3 holes) or less
and using at least 3 screws. The tightening torque is 1.2 N·m.

PFP-100N2
28-25 × 4.5 oblong holes
4.5
1
5 1525
10
10
25 25 25
1000
30±0.3
27
29.2
24
16
1
1.5

PFP-100N/50N
1,000 (500)
*
1
15
1
0
4.5
25 25 25
10
25 15 (5)
*1
1
7.3±0
.15
35±0.3
27±0.15
*1. PFP-50N dimensions are
given in parentheses.
DIN Track End Plates
PFP-M (2 required)
4 Installation
4-12
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
