Omron CK3M Series User Manual


Digital I/O Unit, Analog Input Unit, Expansion Master Unit, and Expansion
Slave Unit
Model Unit width (mm)
CK3W-MD7110 31.6
CK3W-MD7120
CK3W-AD2100
CK3W-AD3100
CK3W-EXM01
CK3W-EXS02


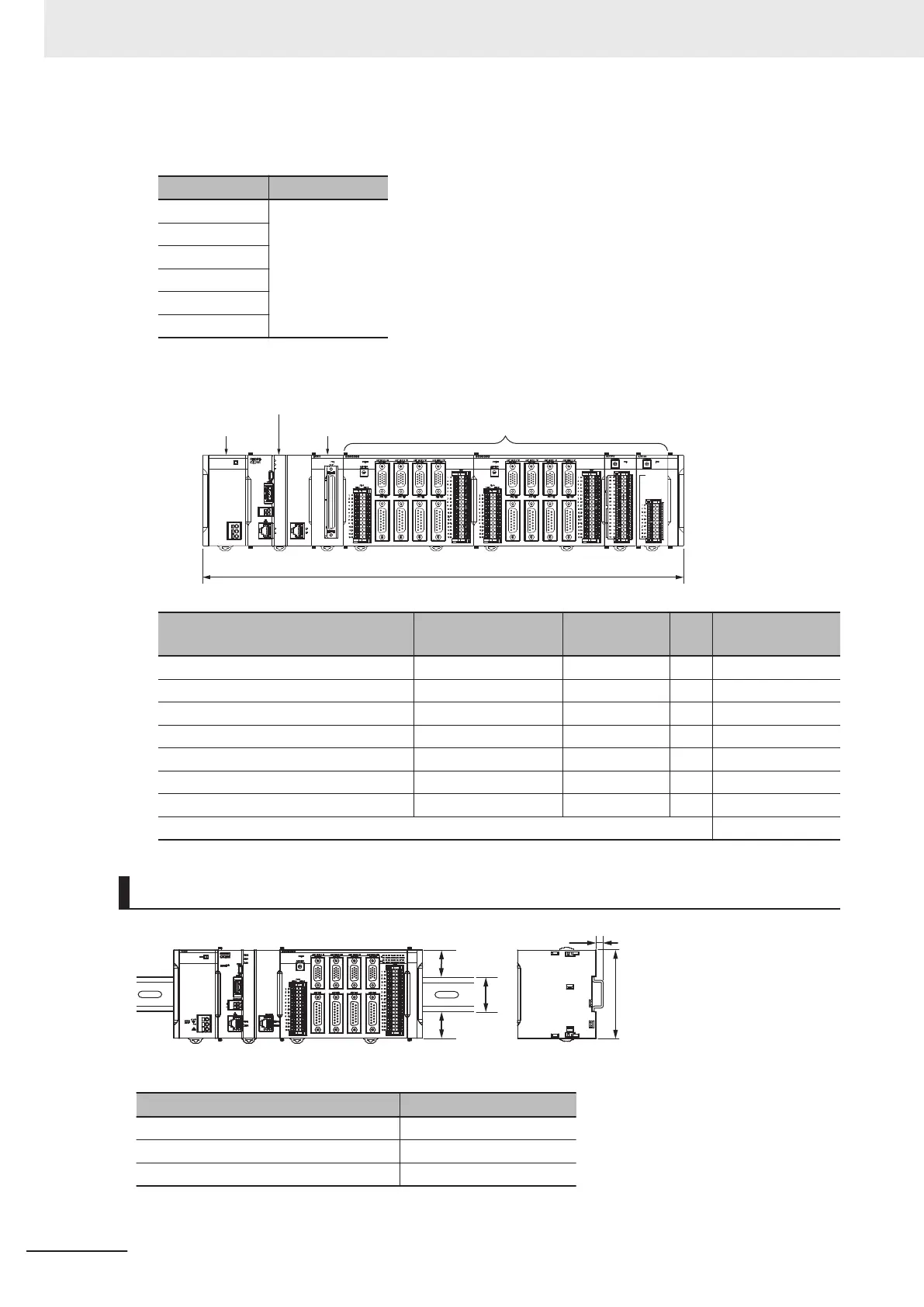

Design Example for Width W
Power Supply Unit Expansion Master Unit Configuration Units
CPU Unit
W
Name Model
Unit width
(mm)
Qty
Subtotal unit
width (mm)
Power Supply Unit CK3W-PD048 45 1 45
CPU Unit CK3M-CPU101 63.2 1 63.2
Expansion Master Unit CK3W-EXM01 31.6 1 31.6
Axis Interface Unit CK3W-AX1414N 130 2 260
Digital I/O Unit CK3W-MD7110 31.6 1 31.6
Analog Input Unit CK3W-AD2100 31.6 1 31.6
End Cover CK3W-TER11 15.6 1 15.6
Total W = 45 + 63.2 + 31.6 + 130 × 2 + 31.6 + 31.6 + 15.6 478.6
Installation Dimensions
27.5
3
5
90
A
27.5
CPU Rack
(Unit mm)
DIN Track A (mm)
PFP-100N2 16
PFP-100N 7.3
PFP-50N 7.3
4 Installation
4-14
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
