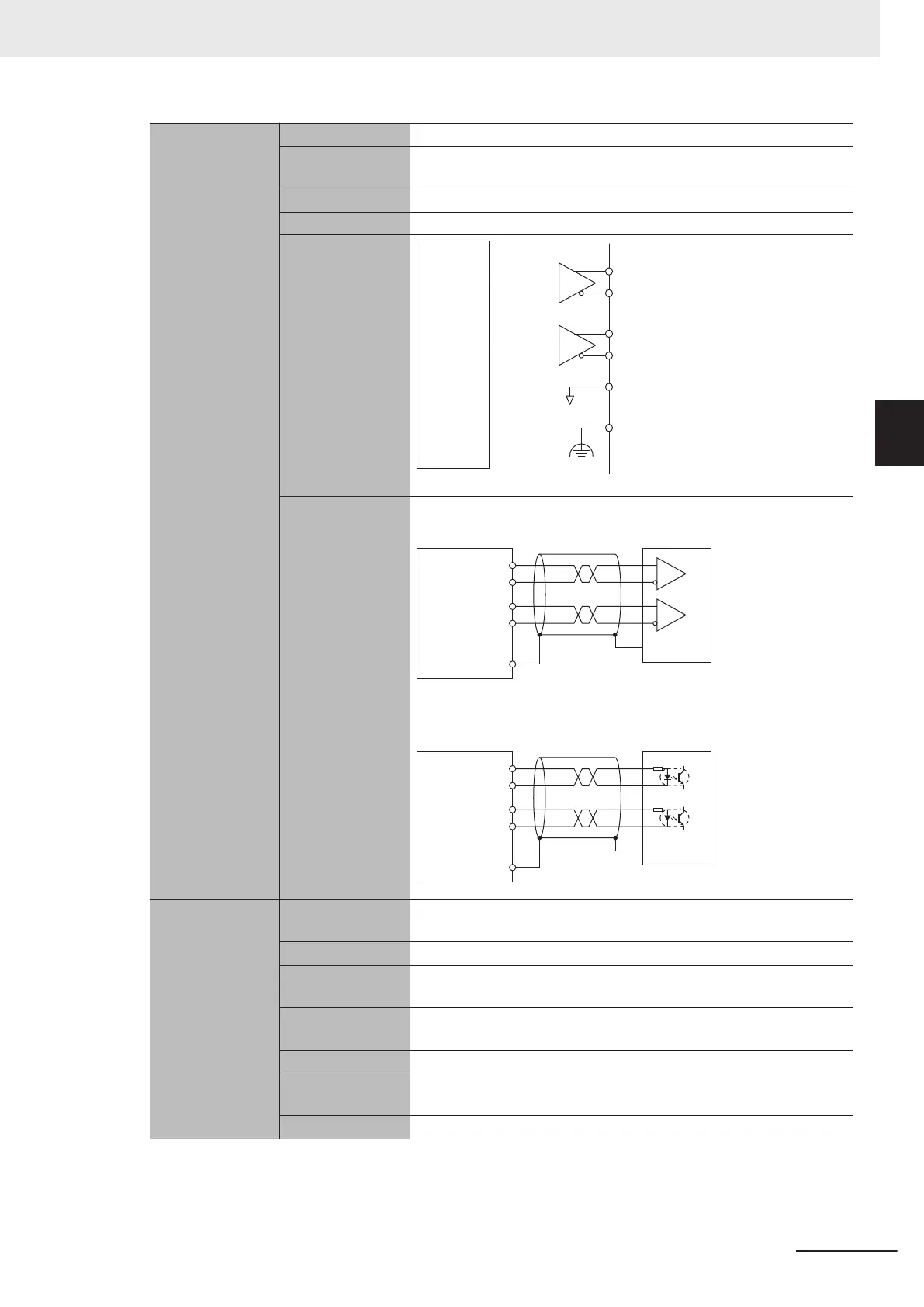

Omron CK3M Series User Manual

Output voltage EIA standard RS-422A line driver levels
Maximum output
frequency
10 MHz
Cable length 10 m max.
Isolation method Not isolated from internal circuit
Circuit configura-
tion
Internal
ci
rcuit
Pulse output +
Directional output +
Directional output -
Connector shell
FG
0 V
GND
Pulse output -
Terminal connec-
tion diagram
Connection with a Servo Drive with line receiver input
Servo Drive
Pulse output +
Pulse output -
Directional output +
Directional output -
Connector shell
Connection with a Servo Drive with 5-VDC photocoupler input
*3
Servo Drive
Pulse output +
Pulse output -
Directional output +
Directional output -
Connector shell
Amp enable out-
put
*2
Number of out-
puts
1 point/channel
Output method Relay output (N.O. + N.C.)
Maximum switch-
ing capacity
24 VDC/0.5 A
Minimum switch-
ing capacity
5 VDC, 1 mA
Relay service life 100,000 operations
ON/OFF re-
sponse time
10 ms max./10 ms max.
Isolation method Isolation by Relay (between amp enable output and internal circuit)
3 Configuration Units
3-29
CK3M-series Programmable Multi-Axis Controller User's Manual Hardware (O036)
3-3 Axis Interface Unit
3
3-3-10 Amplifier Connector Specifications
