Omron F3SJ-E0185P25 User Manual

86

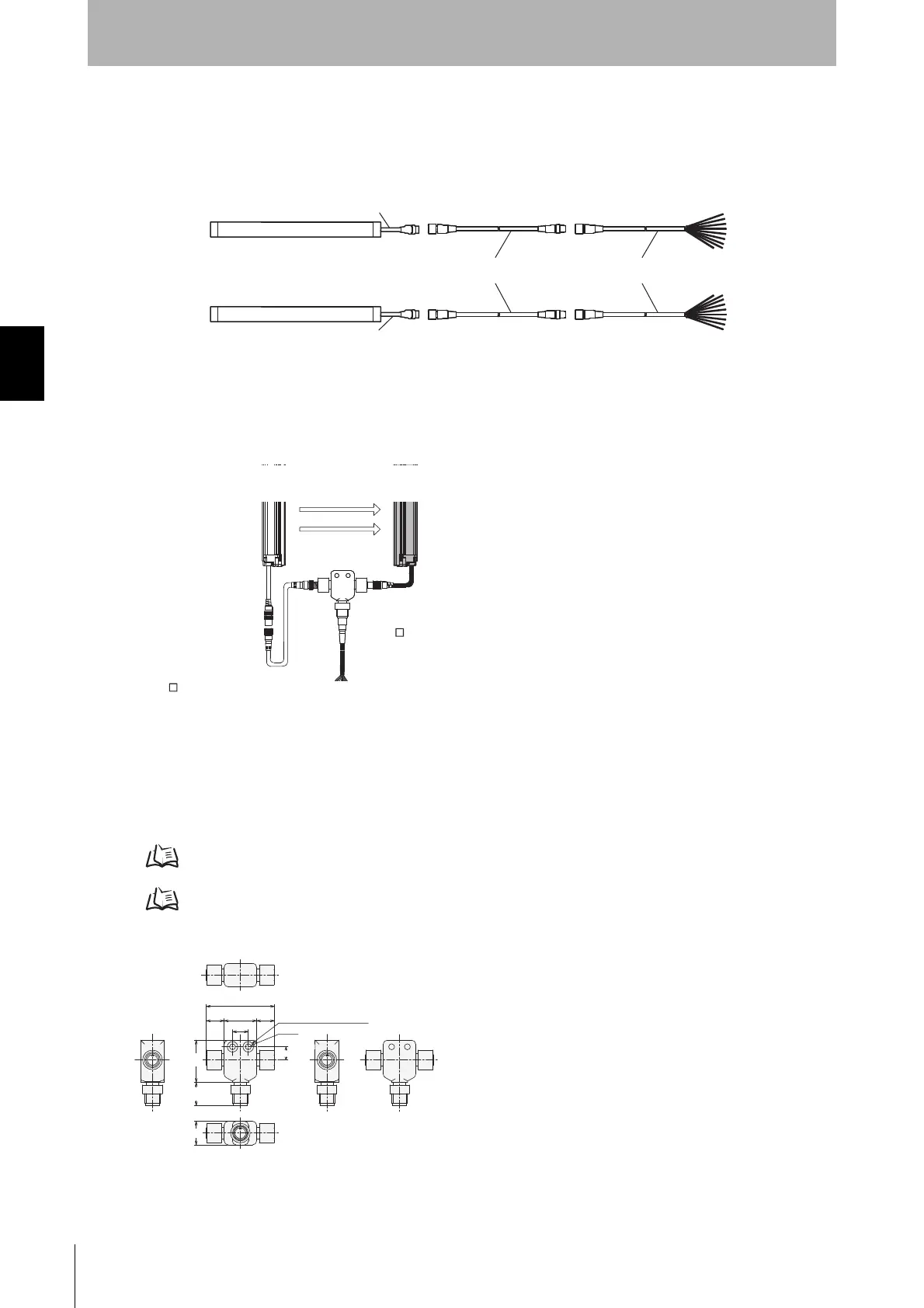

Chapter3 Wiring
F3SJ-E/B
User’s Manual
Wiring/Installation
If the length of the F39-JDA single-ended connector cable is insufficient, use 1 or more F39-JDB
double-end connector cables to extend the length, as required. The total cable extension length must
be 30 m max.
<Connection example>
 Reduced Wiring Connector System
A combination of a double-ended cable for an emitter (F39-JDB-L), a single-ended cable for a
receiver (F39-JDA-D), and a reduced wiring connector (optional: F39-CN5) can be used for a
reduced wiring system.
 Cable for reduced wiring (optional: F39-JDBA)
A set of two cables; a double-ended cable for an emitter (F39-JDB) and a single-ended cable for a
receiver (F39-JDA-D). Used in combination with a reduced wiring connector (optional: F39-CN5).
See the following page for details of a double-ended cable for an emitter (F39-JDB-L) and a single-
ended cable for a receiver (F39-JDA-D).
Double-ended connector cable p.85
Single-ended connector cable p.84
 Reduced wiring connector (optional: F39-CN5)
Emitter
Receiver
Cable is gray Model F39-JDB-L(Gray) Model F39-JDA-L(Gray)
Double-ended connector cable
Model F39-JDB
Single-ended connector cable
Model F39-JDA
Cable is black Model F39-JDB-D(Black) Model F39-JDA-D(Black)
F3SJ
Receiver
F3SJ
Emitter
Reduced Wiring
Connector
F39-CN5
Cable with connectors on both ends
F39-JD B-L (grey)
Cable with connector on one end
F39-JD A-D (black)
24.7
12
13.6 13.6
φ8(SPOTFACING2)
φ4.5
(52)
32.1
10
17.7
18
