F3SJ-E/B
User’s Manual
Chapter3 Mounting
Wiring/Installation
E
7. Tighten the lightly tightened hexagon socket head cap screws (M3 x 6, M3 x 18) to prevent rotation of
the Top/Bottom Brackets and Intermediate Bracket. (Figure 14)
Tighten the hexagon socket head cap screws (M3 x 6, M3 x 18) with the torque at 0.54 N•m
(recommended).
Tightening screws with a torque that considerably exceeds the recommended torque may cause failure.
Mounting is complete.

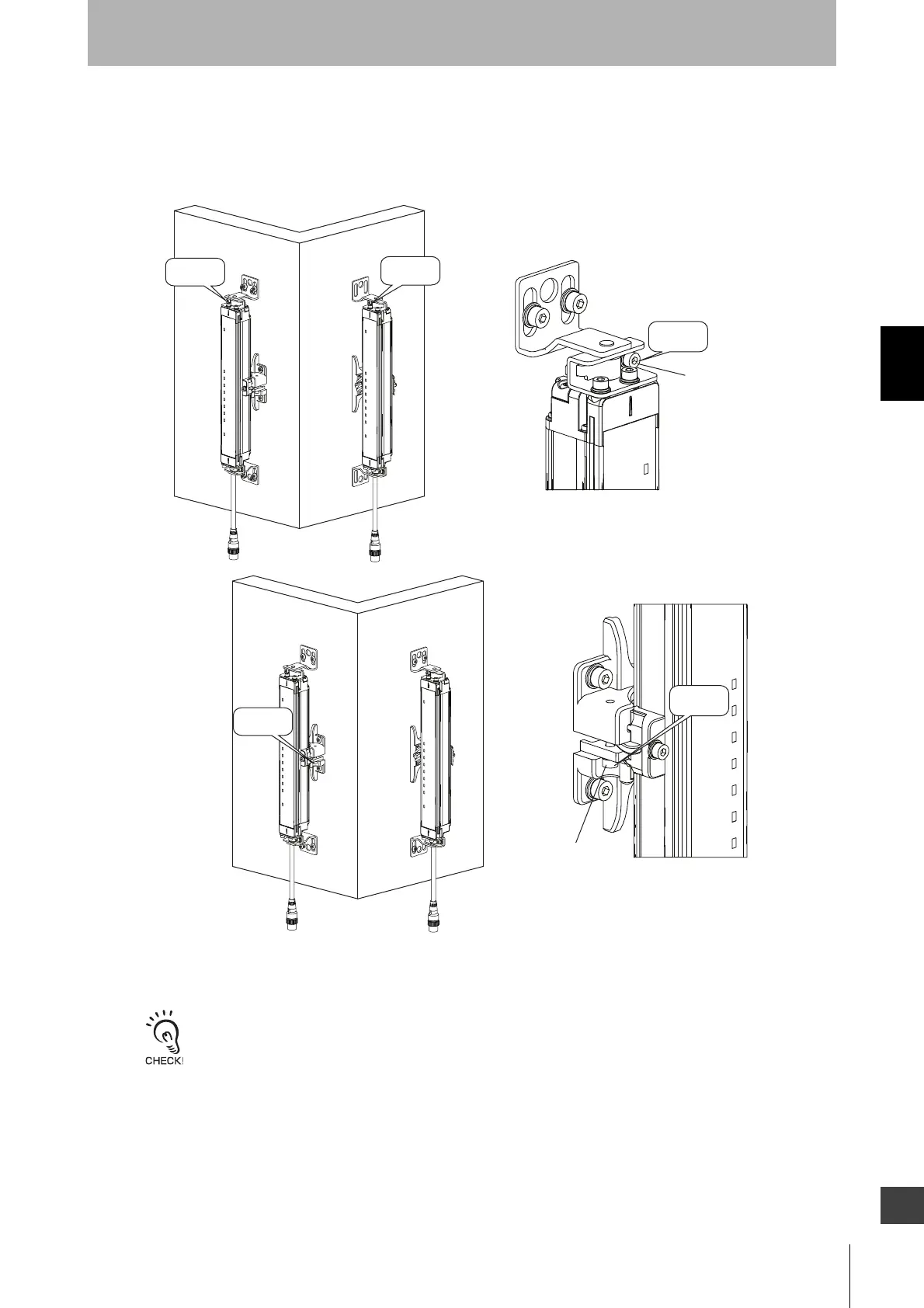

Enlarged view
Tighten
securely
Hexagon socket head
cap screw (M3 x 8)
Side mounting
Backside mounting
Tighten
securely
Tighten
securely
Enlarged view
Side mounting
Backside mounting
Tighten
securely
Tighten
securely
Hexagon socket
head cap screw
(M3 x 18)
Figure 14
